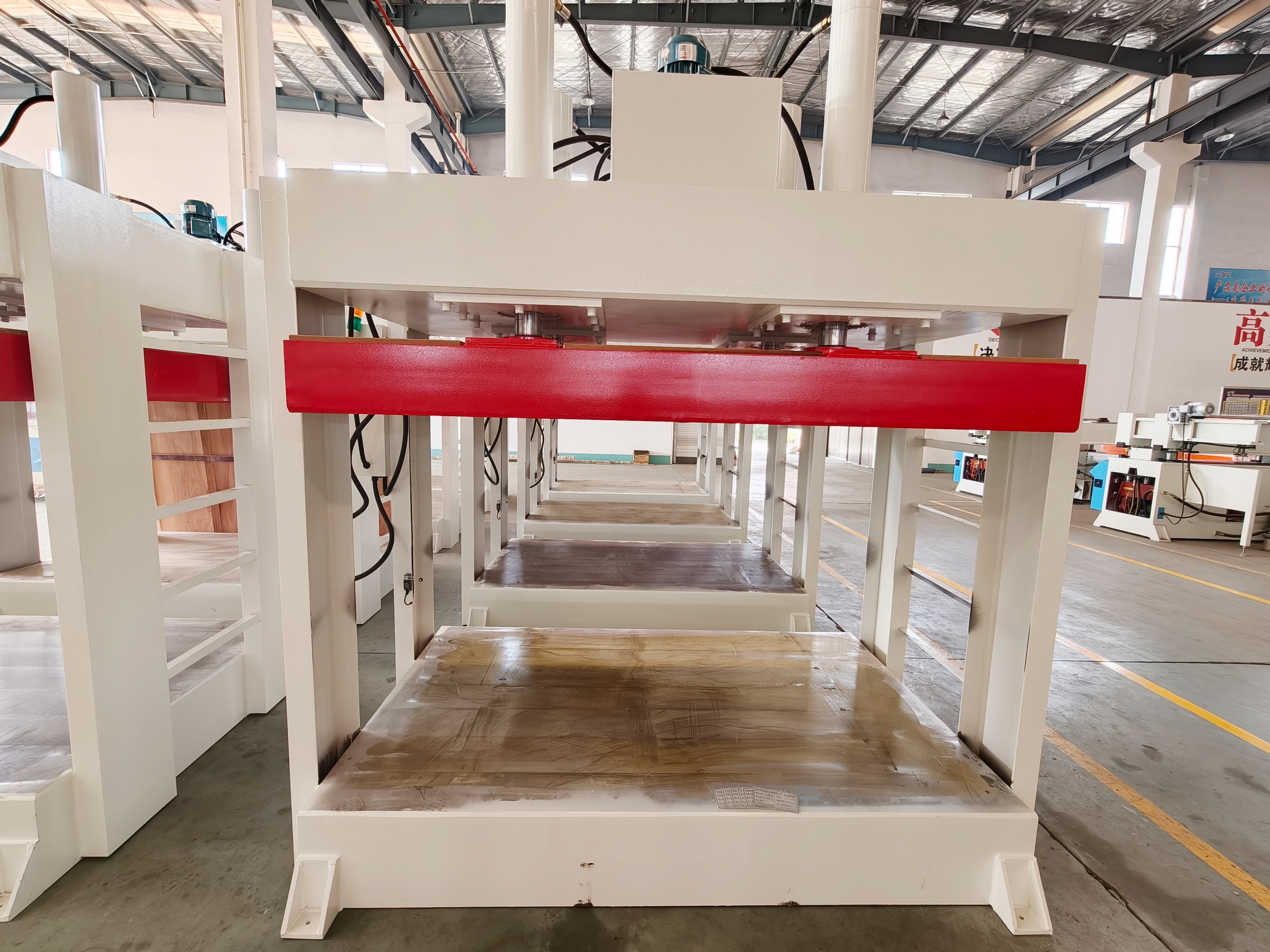

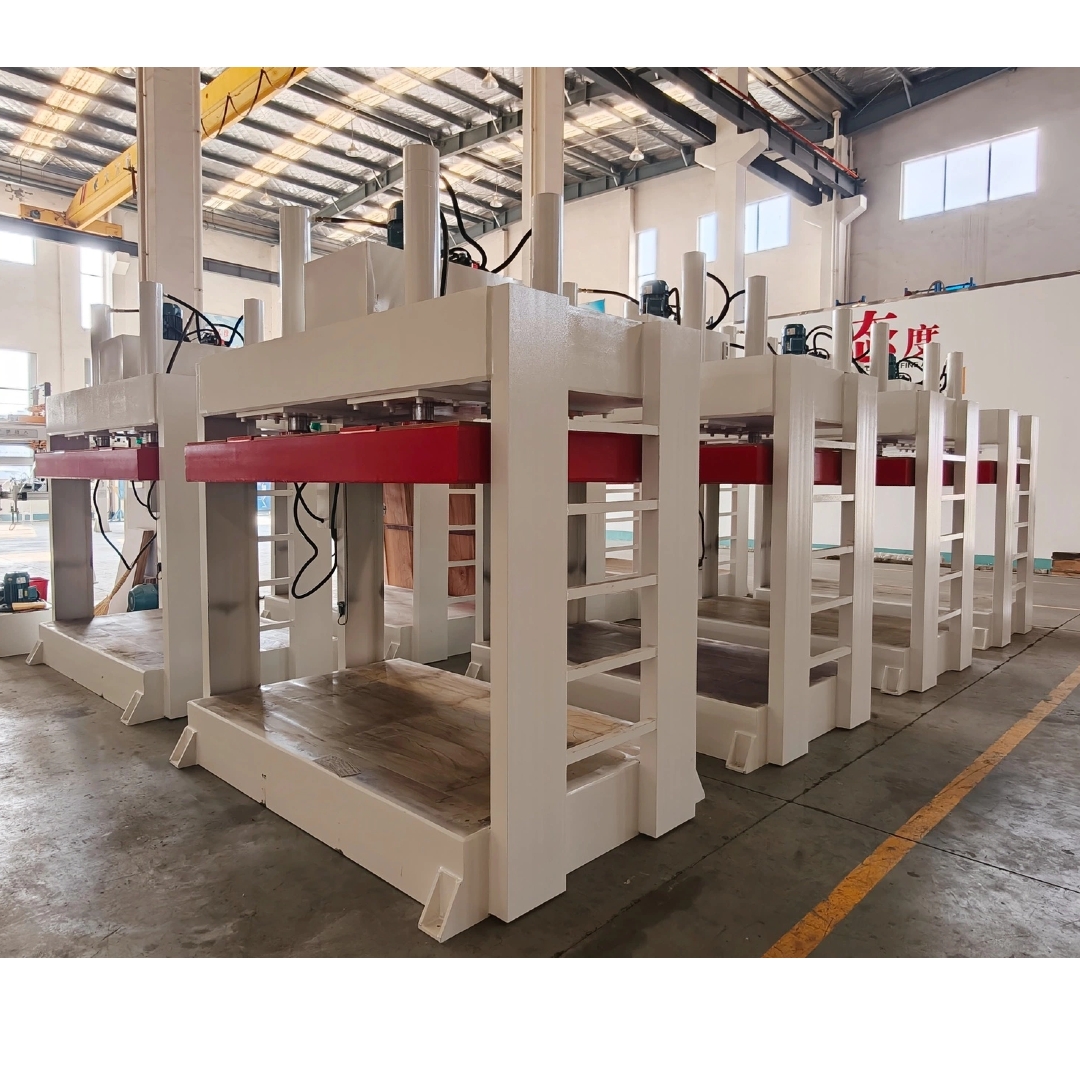

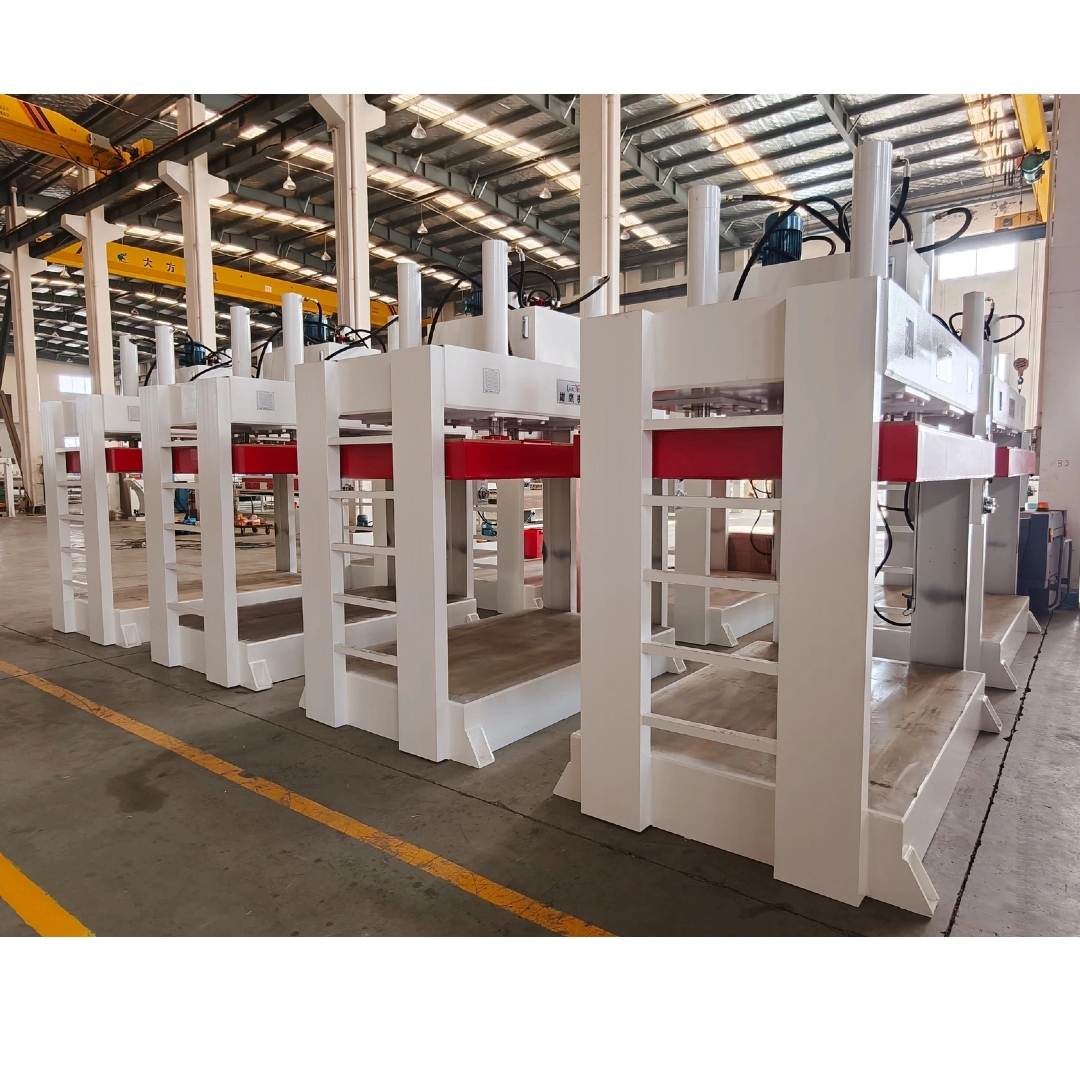

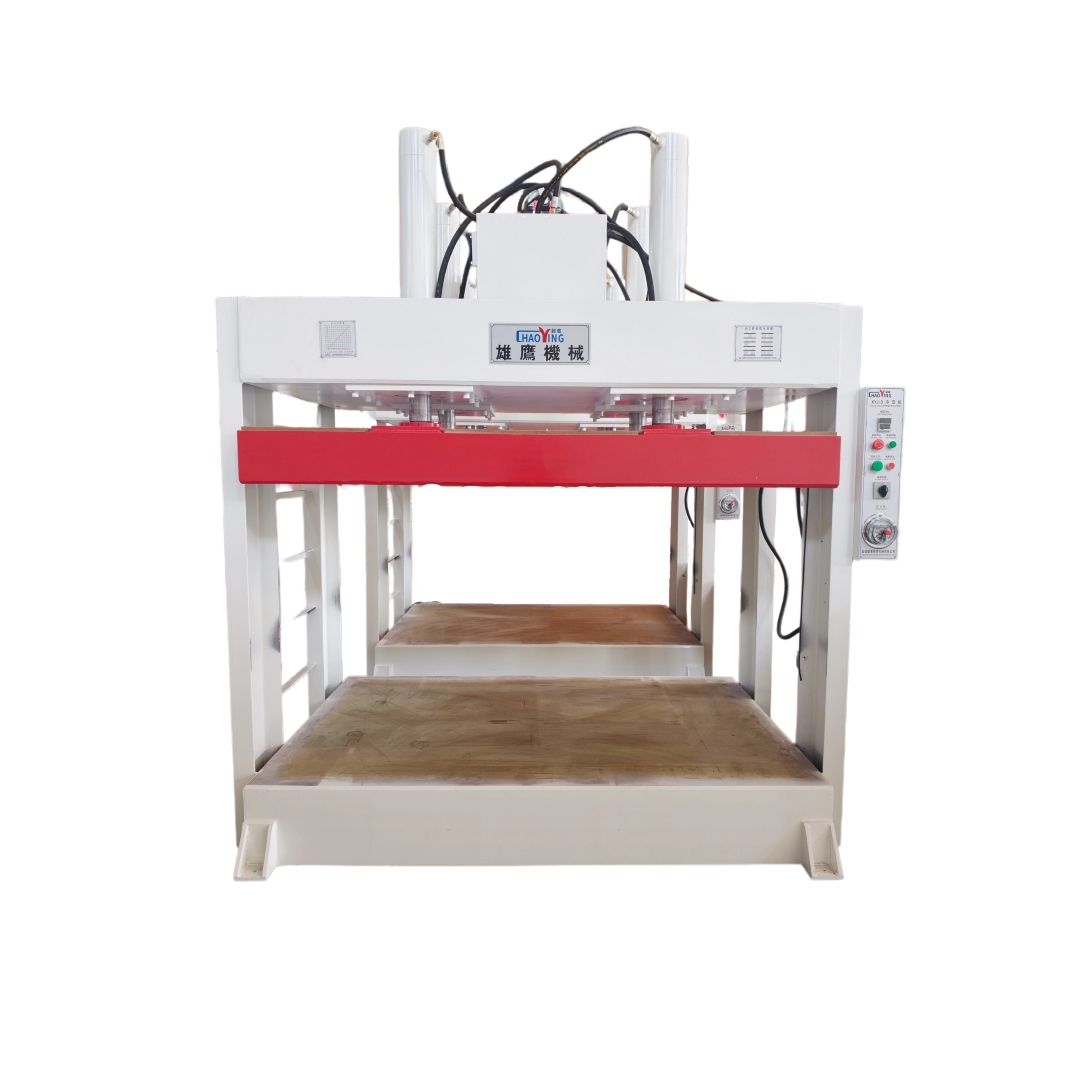

This high-precision Hydraulic Cold Press is an essential industrial tool engineered for the superior mechanical pressing of elastic and composite materials. Designed to provide consistent, high-intensity pressure across the entire surface of a workpiece, it is ideal for laminating flooring, wood veneers, and decorative panels. The machine features a robust four-column balancing structure and a high-performance hydraulic pump station, ensuring stable and reliable operation in heavy-duty environments. With customizable sizes and advanced safety protections, it offers a versatile and efficient solution for manufacturers aiming for perfectly flat and securely bonded finished products.
Equipped with double or four heavy-duty oil cylinders and a specialized three-segment press plate, the machine utilizes a precision four-column balancing structure. This engineering excellence ensures that pressure is distributed perfectly across the overall surface of the material. By eliminating "soft spots" during the pressing cycle, it guarantees a 100% uniform bond and surface flatness, which is critical for high-grade elastic materials and large-format industrial panels.
The integrated oil system, powered by a dedicated hydraulic pump station, provides a continuous and steady pressing force throughout the operation. A key technical feature is the automatic pressure compensation system, which maintains the target pressure even during long-duration cycles. This ensures that the structural integrity of the bond is never compromised by pressure drops, resulting in superior product consistency and significantly lower reject rates in mass production.
• Enhanced Operational Safety and Monitoring

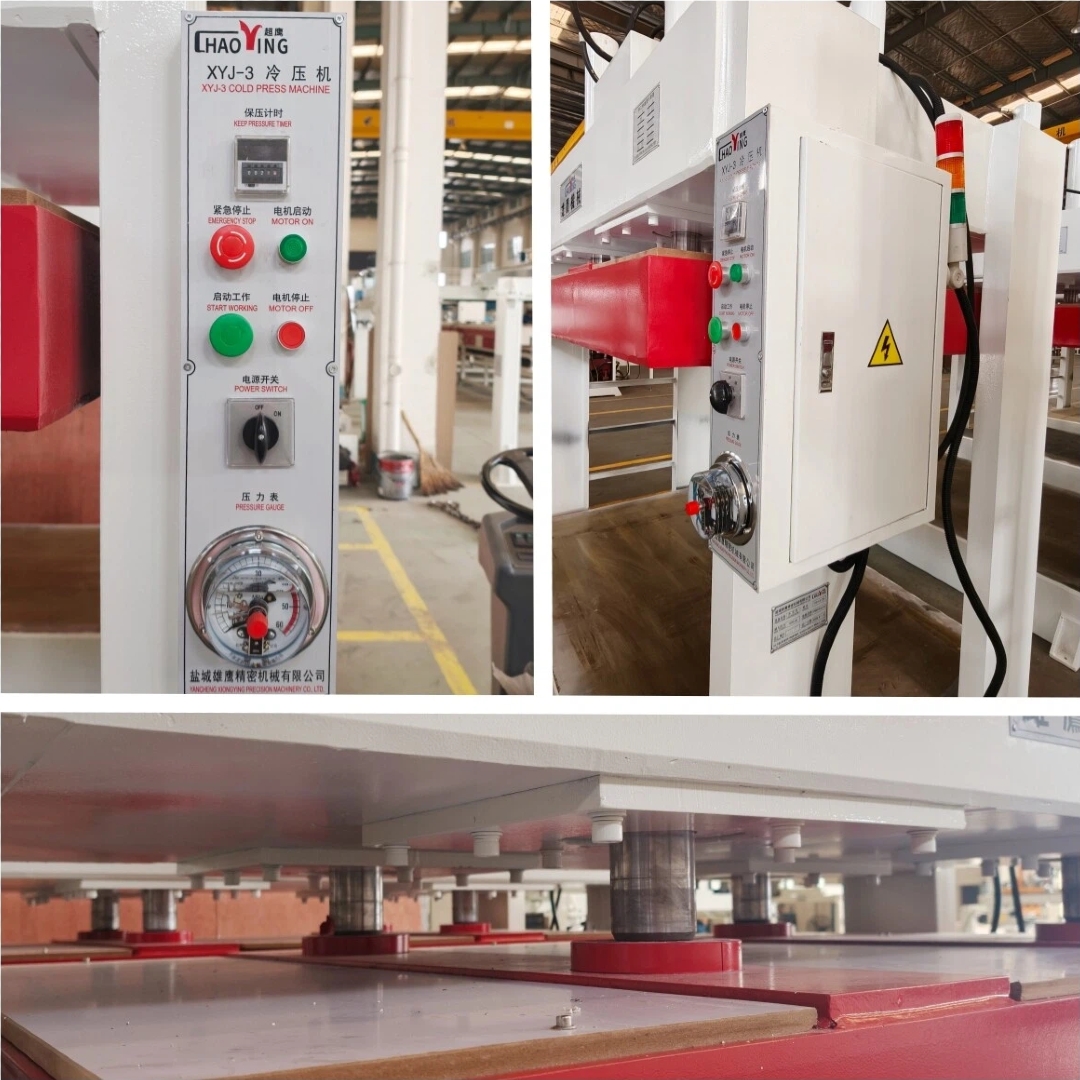

Safety is paramount in our design. The machine features a comprehensive up-and-down limit protection device that prevents mechanical over-travel and protects operators. The working state is clearly displayed through an intuitive warning light system, allowing for real-time monitoring of the pressing cycle. These combined features provide a secure working environment and allow for rapid troubleshooting, ensuring the machine maintains peak performance with maximum operator security.
• Precision Guidance with Gear Rack Coordination
The vertical movement of the press plate is expertly coordinated with a gear rack guiding orientation system. This mechanical synchronization ensures that the plate stays perfectly parallel during its entire stroke, preventing skewing or uneven pressure application. This precision guidance is essential for delicate veneers and high-density flooring cores, providing the professional-grade accuracy required for premium export-quality decorative boards and furniture components.
Technical Parameters
Model
XYJ-3/30
XYJ-3/50
XYJ-3/60
XYJ-3/120
XYJ-3/200/300
Max.cutting force
300kN(30Ton)
500kN(50Ton)
600kN(60Ton)
1200kN(120Ton)
2000kN(200Ton)
3000kN(300Ton)
Travel adjustment range
0—800mm
0—800mm
0—800mm
0—800mm
0—800mm
Range between the working tables
400—1200mm
400—1200mm
400—1200mm
400—1200mm
400—1200mm
Size of upper pressing board
1500*1300mm
2000*1200mm
1500*1300mm
2000*1300mm
2000*1300mm
Keep pressure time
0—24h
0—24h
0—24h
0—24h
0—24h
Motor power
2.2kW
2.2kW
2.2kW
4.0kW
5.5kW
Product Uses
• Resilient Flooring & Elastic Material Pressing
Perfectly suited for the overall surface pressing of elastic materials, such as LVT and rubber floorings. The uniform pressure ensures that adhesive layers are perfectly distributed, preventing air bubbles or delamination, which is vital for maintaining the durability and aesthetic quality of flooring products in high-traffic commercial and residential environments.
• Woodworking & Furniture Panel Lamination
Ideally used for laminating wood veneers, decorative sheets, and plywood panels. The steady hydraulic pressure and precision gear rack guidance make it the industry standard for creating perfectly flat furniture boards and architectural panels. The machine's customizable sizes allow manufacturers to process a wide range of workpiece dimensions, from small cabinet doors to large-format wall panels.
