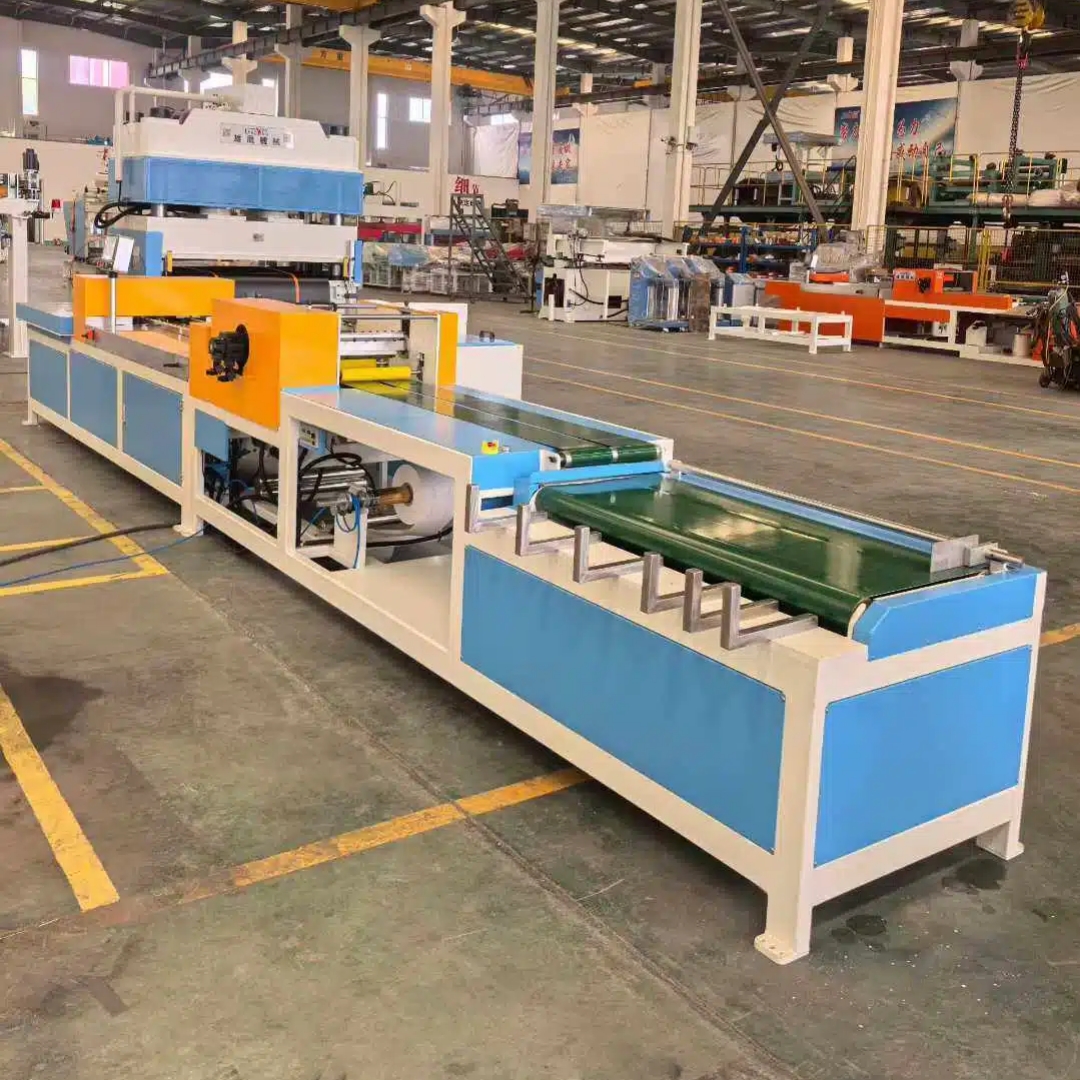

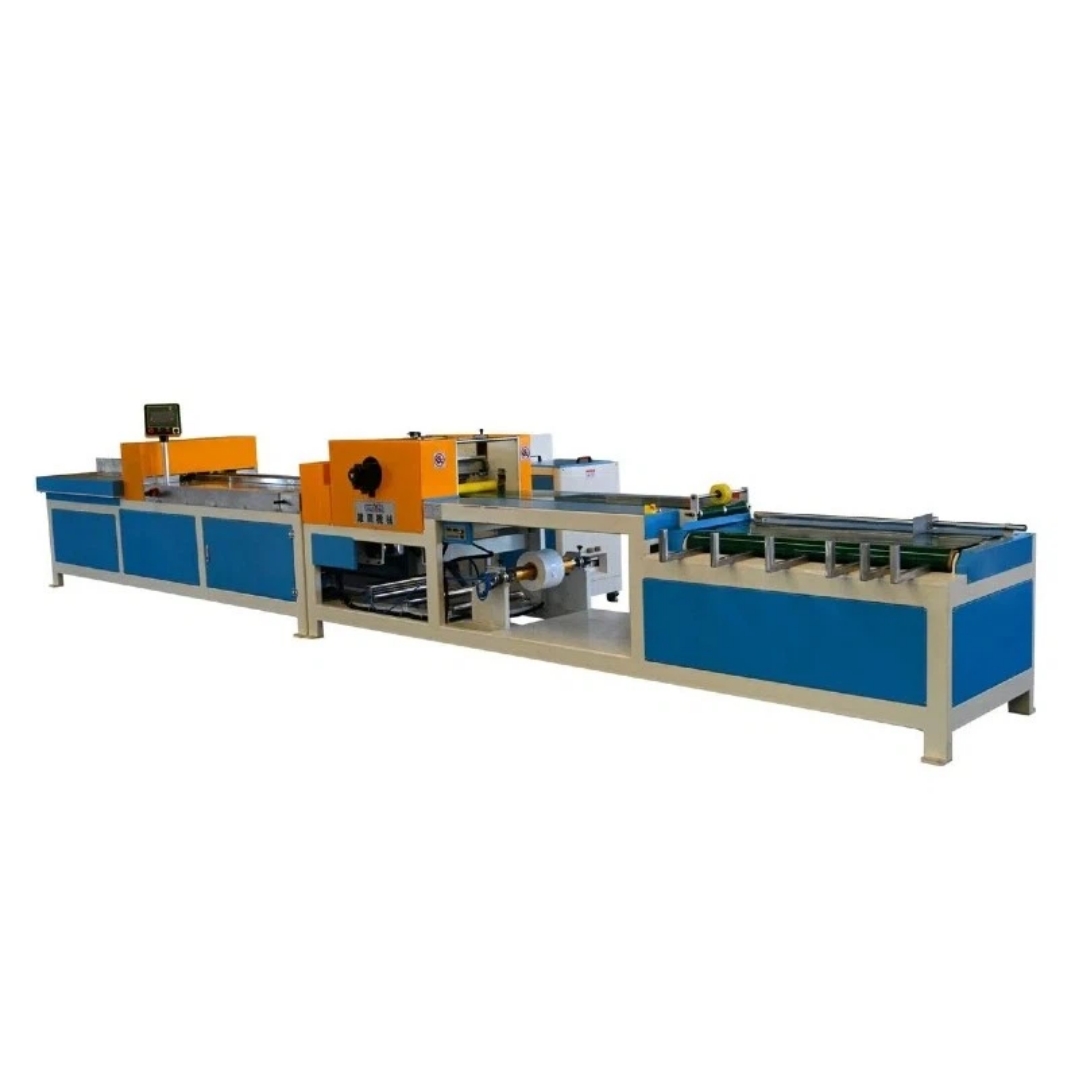

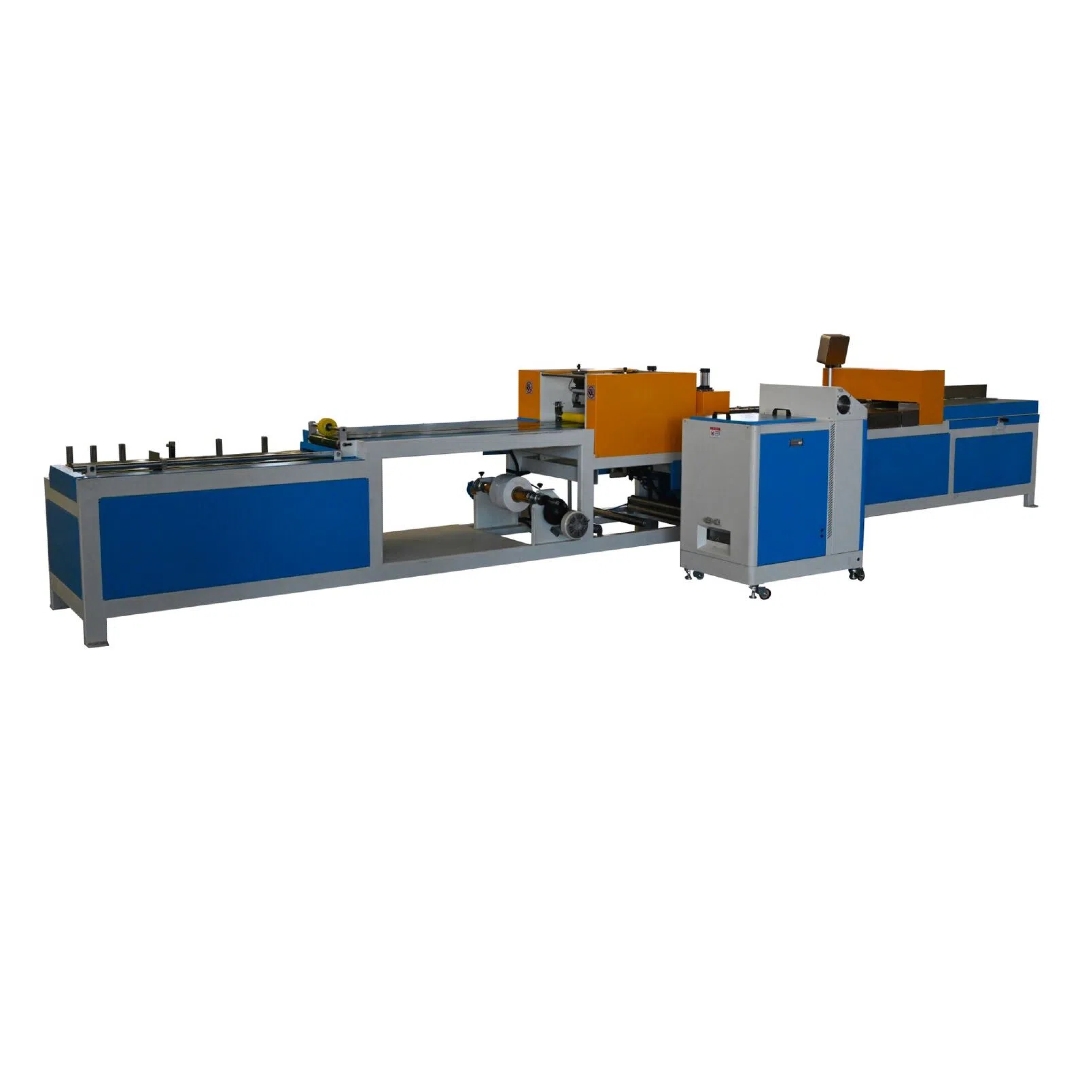

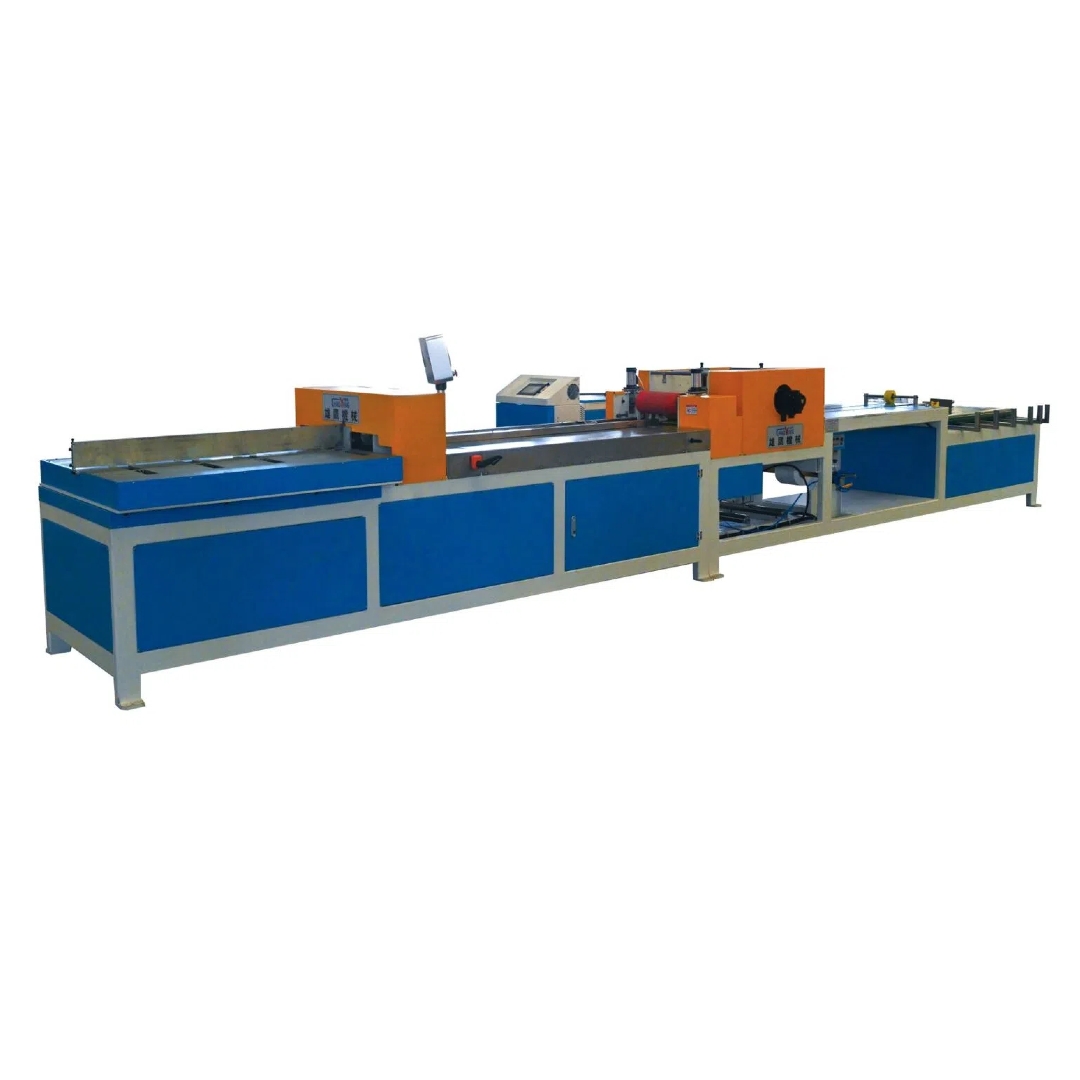

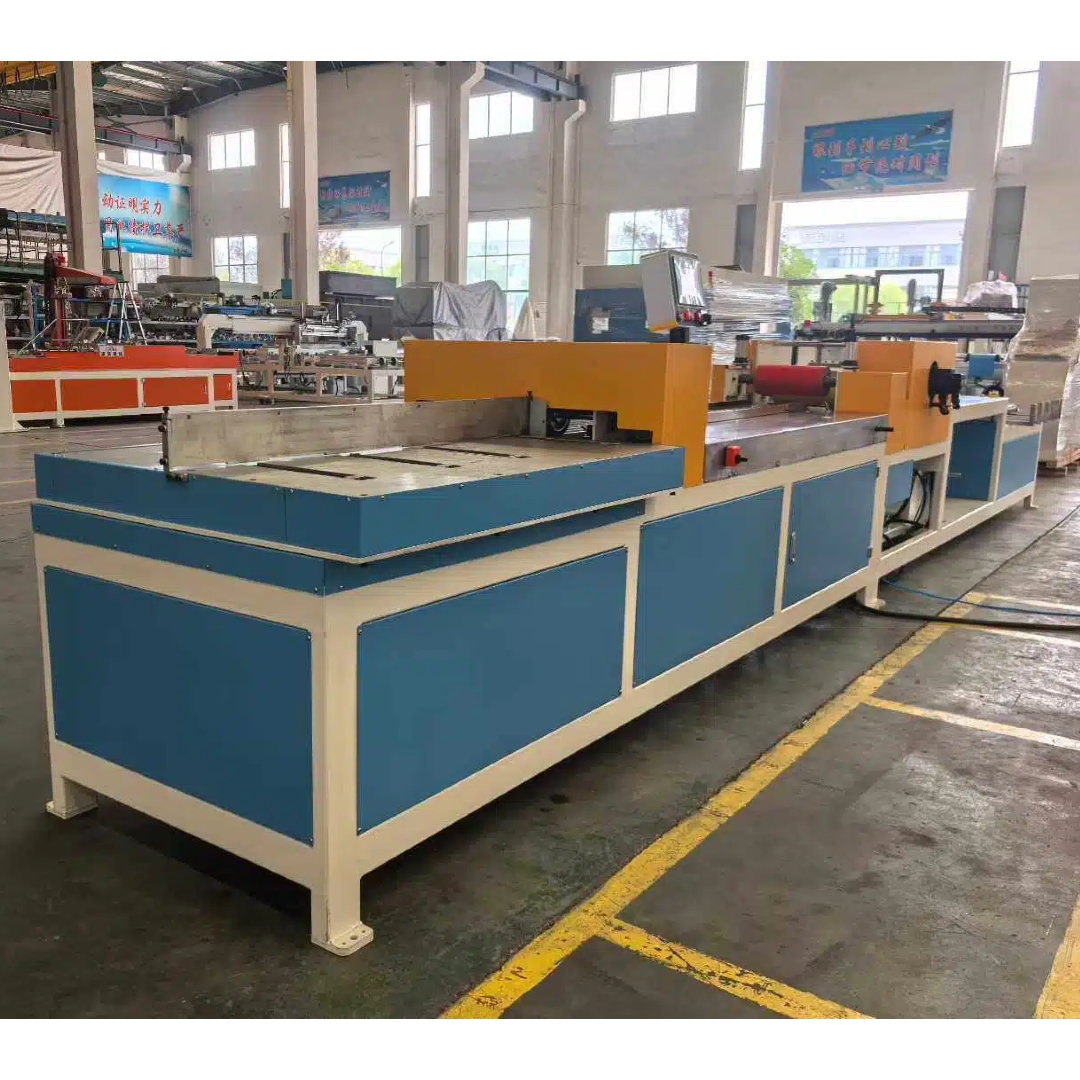

This high-efficiency Automatic Self-Adhesive Film Applicator is specifically designed for the resilient flooring industry, specializing in the precision backing of LVT, PVC, and other elastic floorings. The machine is available in two specialized configurations: one optimized for long planks and another for square tiles. It streamlines the manufacturing workflow by performing adhesive coating and film application simultaneously in a single, continuous pass. By integrating advanced automation with precise mechanical control, this applicator ensures a flawless, high-strength bond between the flooring and its backing, making it the ideal solution for factories seeking to upgrade their finishing lines with superior consistency and speed.
Our machine performs both adhesive coating and protective film application simultaneously. This integrated approach ensures that the release paper or film is applied to a perfectly fresh, contamination-free adhesive layer. By combining these two critical steps into one synchronized operation, the machine significantly shortens the production cycle and eliminates the risk of adhesive drying or dust accumulation between processes.

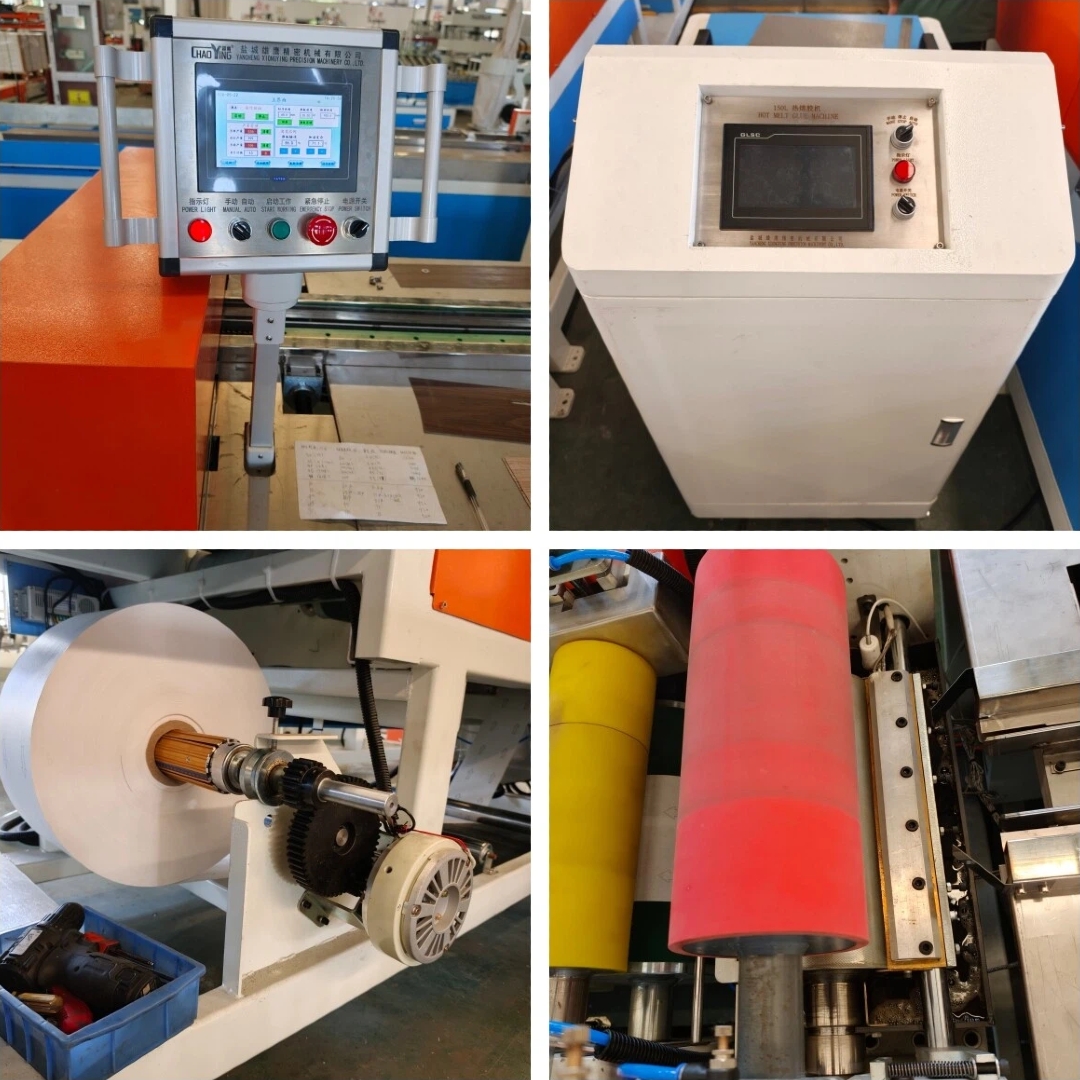

• Advanced Bottom Roller Coating Technology
Featuring an innovative bottom roller gluing system, this machine completely eliminates the traditional, labor-intensive oil-brushing step. This method provides a more uniform and consistent adhesive layer across the entire flooring surface compared to manual or brush-based methods. The result is a significantly higher product yield rate, a cleaner production environment, and a superior factory-finish quality that meets high-end market standards.
• Universal Material and Size Compatibility
Designed for maximum manufacturing flexibility, a single machine is capable of handling a wide array of flooring dimensions and specifications. It is fully compatible with both release paper and release film. This versatility allows manufacturers to switch between different backing materials and product sizes without the need for multiple machines or complex re-tooling, making it a highly cost-effective asset for diverse production lines.
• Extreme Energy Efficiency & Cost Savings
Engineered with a low-total-power-consumption design, this machine is an industry leader in sustainable manufacturing. By optimizing the drive and heating systems, it can save approximately 60,000 kWh of electricity per year compared to conventional equipment. This massive reduction in energy usage not only lowers operational overhead but also helps factories achieve their green manufacturing goals while ensuring a rapid return on investment.
Technical Parameters
Long strip
Square
Workpiece length
900—1300mm
300—610mm
Workpiece width
150—200mm
300—6100mm
Workpiece thickness
1.5—4.0mm
1.5—4.0mm
Total power
18kW
Product Uses
• LVT/PVC Plank Backing
The specialized long-plank configuration is ideal for the rapid, continuous self-adhesive processing of standard and wide-format resilient planks used in residential and commercial projects.
• Modular Square Tile Finishing
The square-tile configuration provides perfectly aligned film application for modular flooring units, ensuring every tile meets the strict dimensional tolerances required for high-end architectural installations.
• Versatile Backing for Resilient Materials
Suited for applying various protective backings, from high-performance release films to traditional release papers, across a broad spectrum of resilient materials including luxury vinyl and specialized elastic floor coverings.
