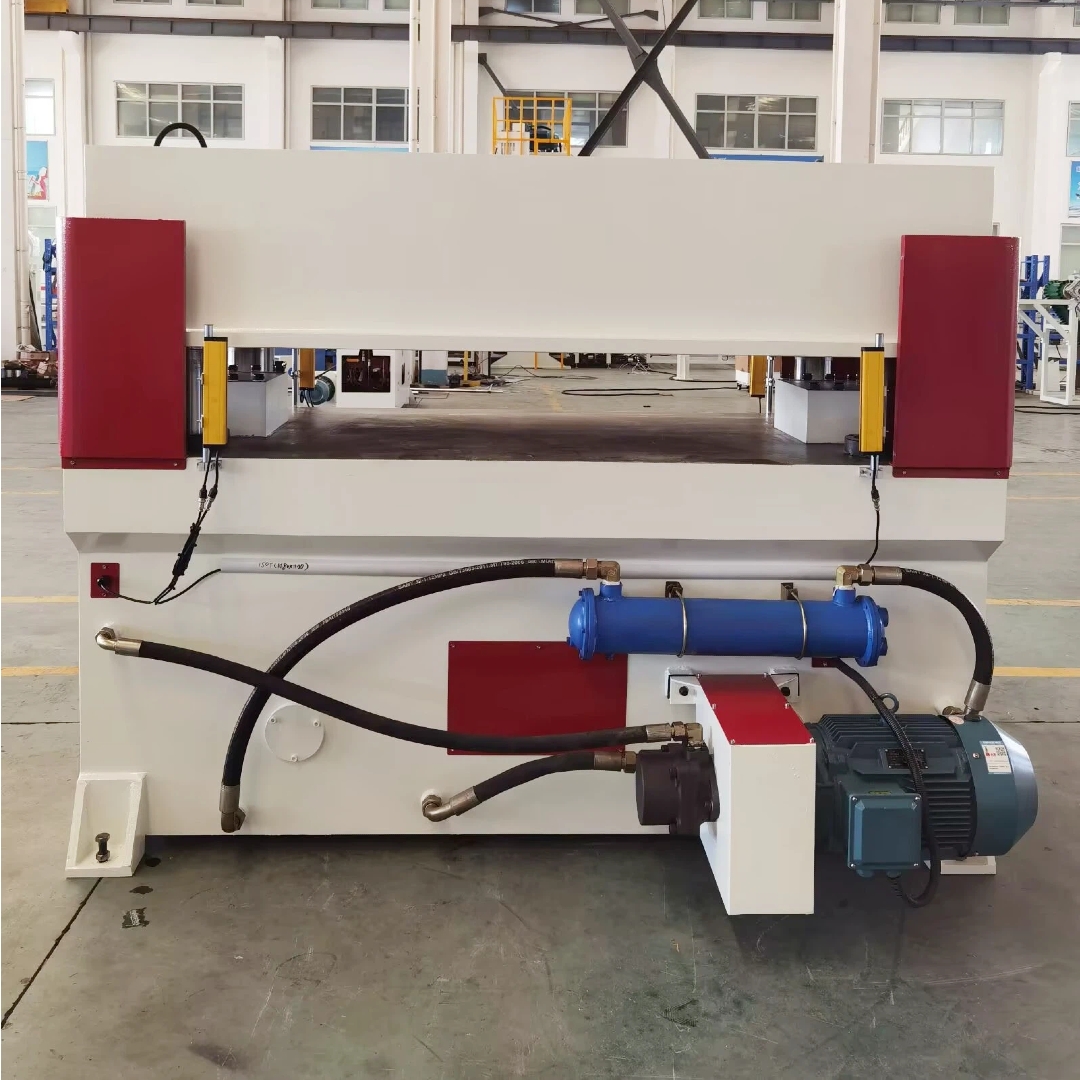

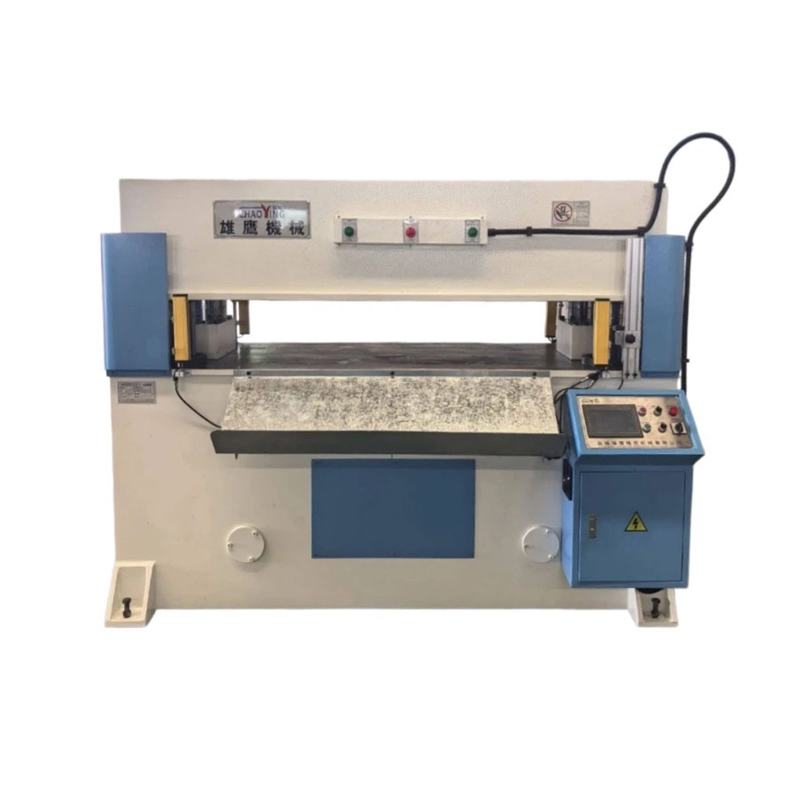

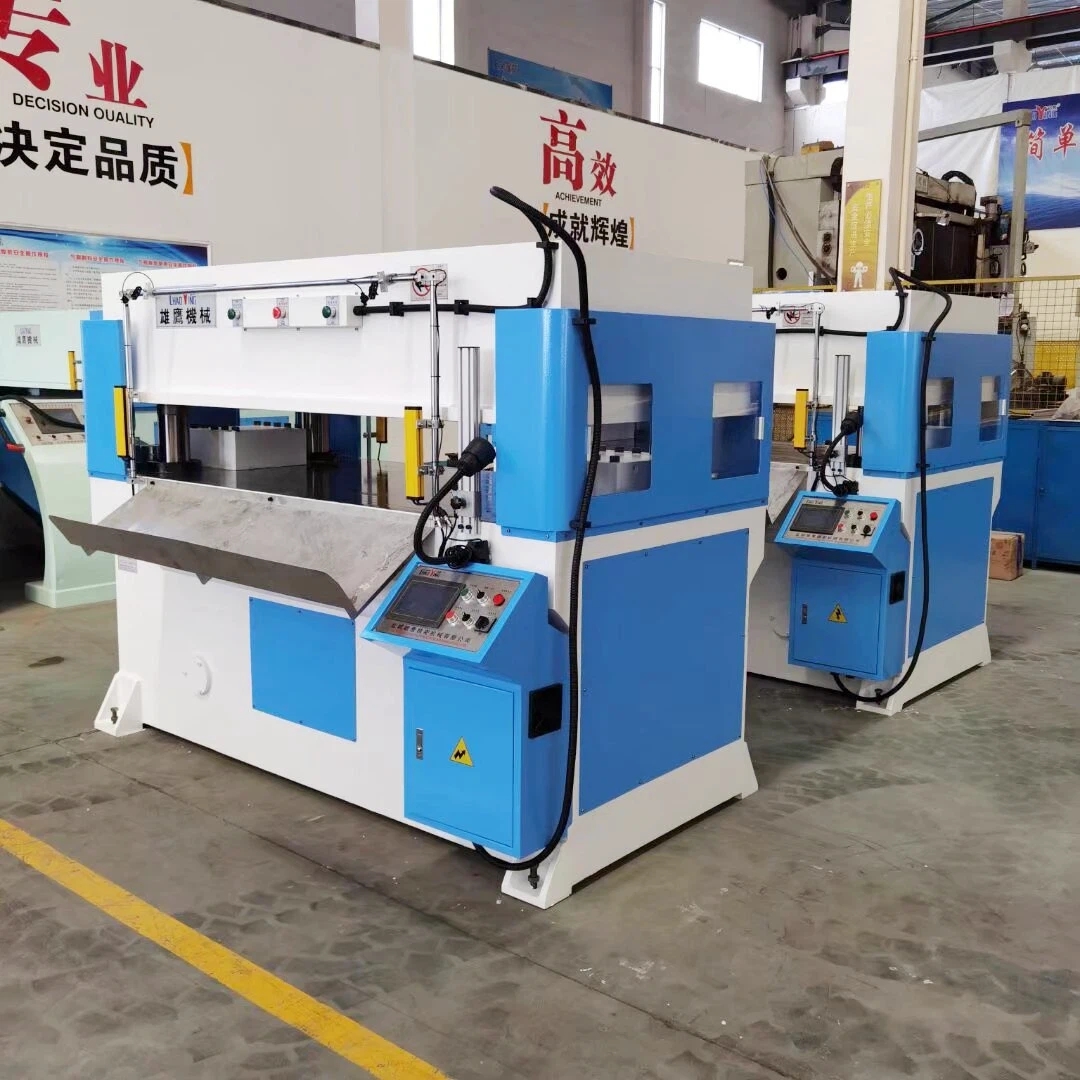

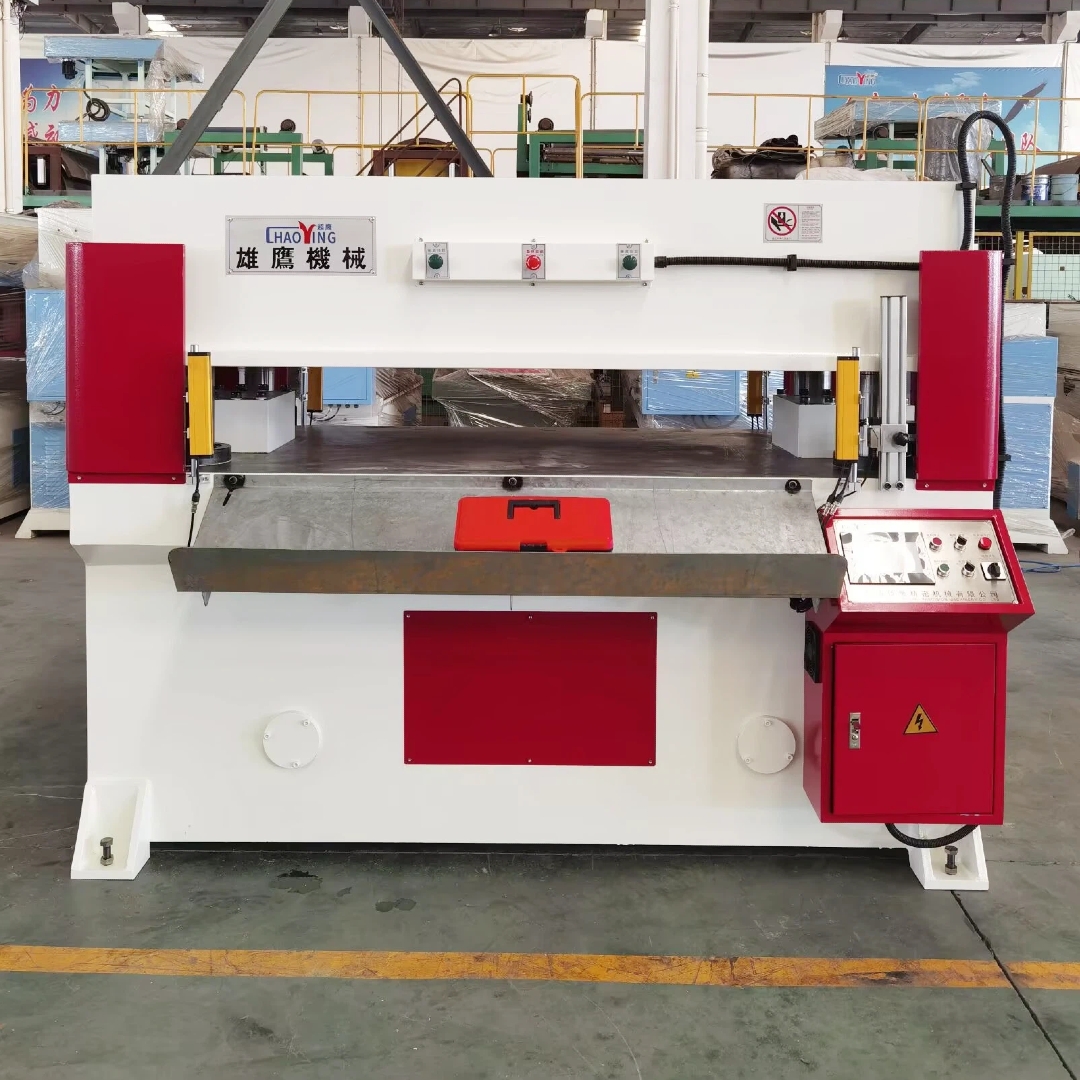

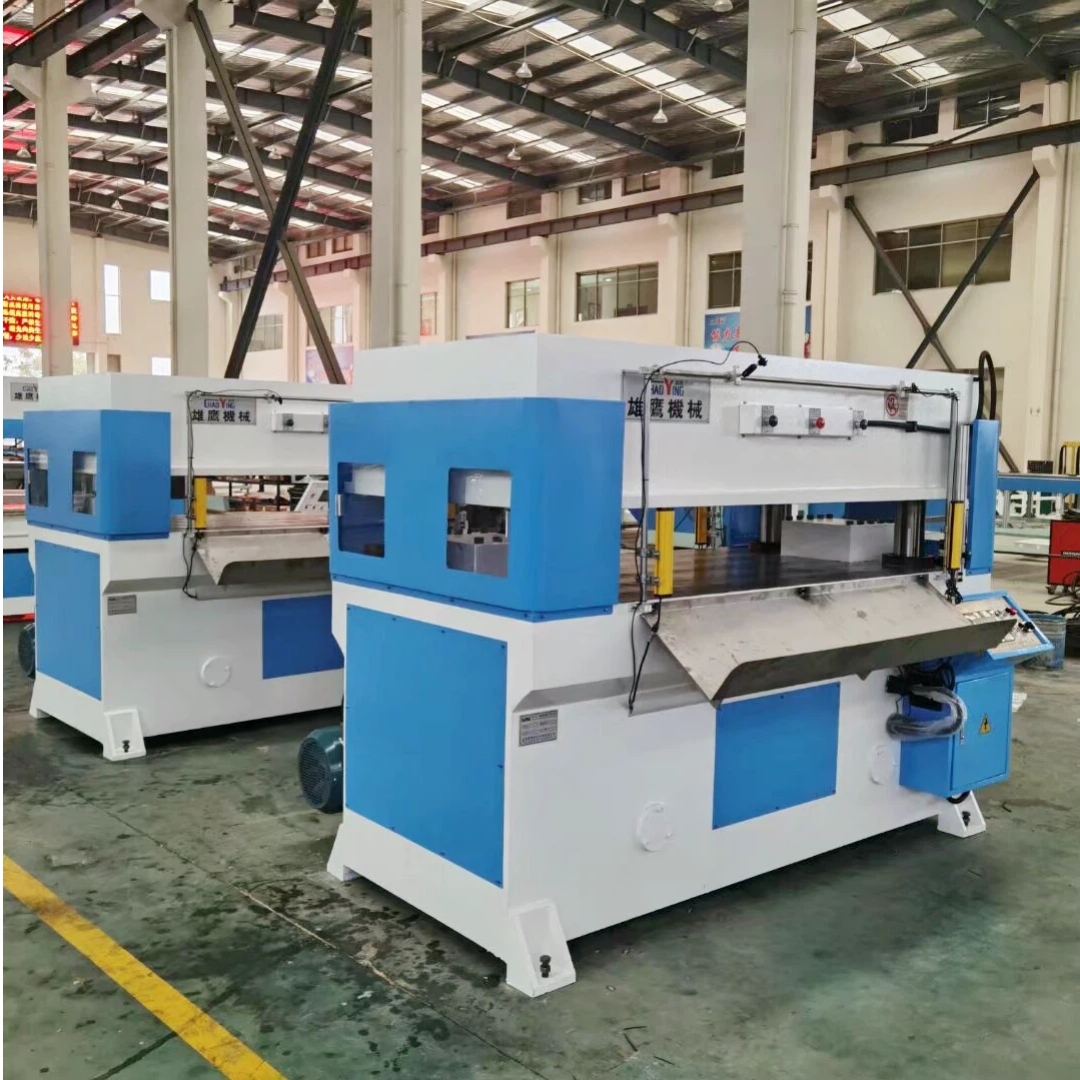

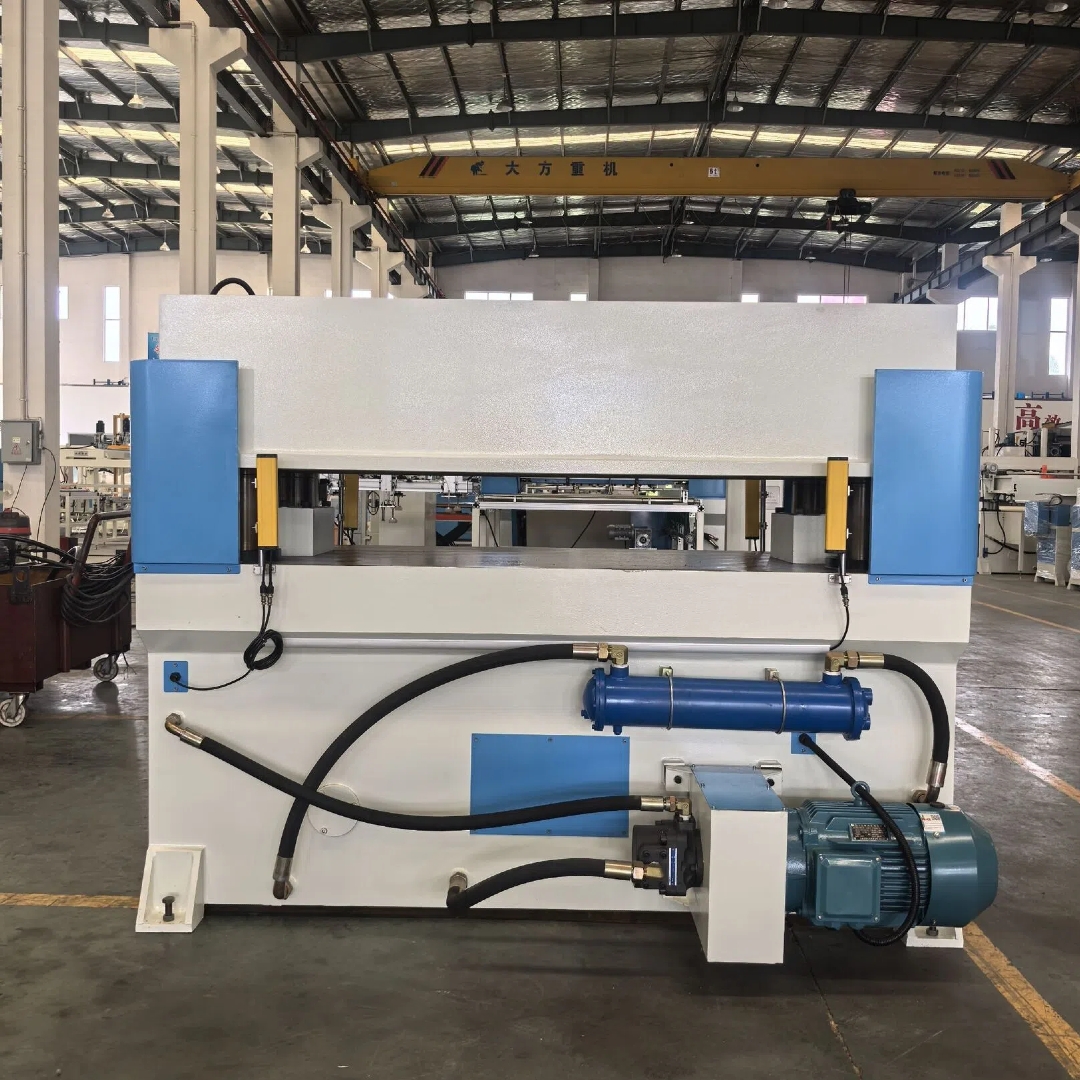

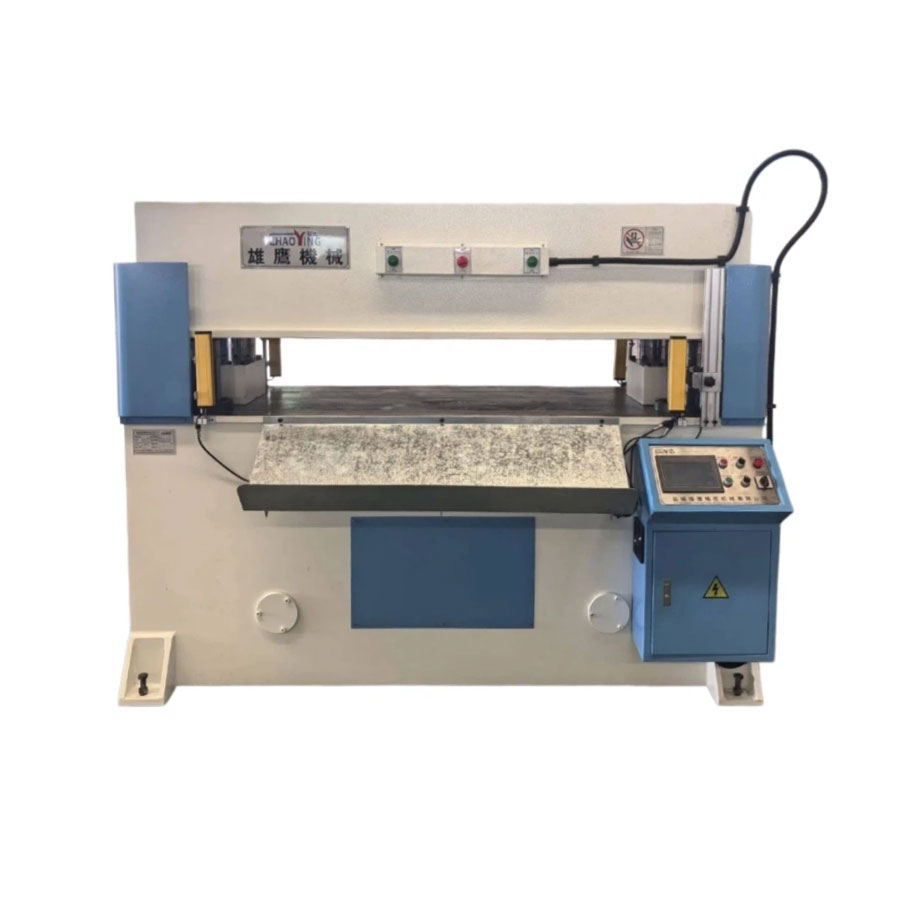

This high-performance industrial cutting machine is specifically designed for the large-batch production of various floor and wall decorative materials. It is engineered to handle a wide spectrum of resilient and heavy-duty surfaces, including EVA flooring, PVC anti-static floors, asphalt, rubber, and carpets. Equipped with an advanced PLC touch screen program control system, the machine offers both automatic and manual operating modes to suit different production requirements. With its robust double-cylinder and four-column auto-balancing structure, it provides the stability and precision needed for high-volume manufacturing, ensuring that every finished piece meets professional quality standards.
The machine utilizes a double oil cylinder and precision four-column auto-balancing link structure. This mechanical design guarantees perfectly uniform cutting pressure across the entire work surface, ensuring a consistent cutting depth at every position. This structural integrity prevents uneven cuts, making it ideal for high-specification industrial materials.
• Intelligent Slow-Cutting Technology
A key technical highlight is the automatic slow-cutting feature. When the upper cutting board descends and contacts the cutting die, the system automatically slows down. This precision control ensures there is no size error between the top and bottom layers of the material, which is critical for maintaining dimensional accuracy in multi-layer material processing.
• Extended Component Service Life
To ensure long-term working precision, the machine is equipped with a central oil supply automatic lubricating system. Additionally, it features a white cutting board slightly moving device. This innovative mechanism prevents the die from hitting the same spot repeatedly, effectively prolonging the service life of the cutting board and improving overall cutting quality.
• Comprehensive Safety & Positioning Systems
Safety is prioritized through a two-hand operation requirement. For enhanced precision and protection, the machine can be equipped with a safety photoelectrical control, infrared cross-light positioning device, and a water cooler. These features allow for rapid, accurate die alignment while ensuring the highest safety standards for operators.
Technical Parameters
Model
XYJ-3/120
XYJ-3/150
XYJ-3/200
Max.cutting force
1200kN(120Ton)
1500kN(150Ton)
2000kN(200Ton)
Stroke adjustment range
0—200mm
0—200mm
0—200mm
Range between the working tables
80—280mm
80—280mm
80—280mm
Size of upper cutting board
1480*1100mm
1480*1100mm
1680*1100mm
Size of lower worktable
1480*1120mm
1480*1120mm
1680*1120mm
Motor power
11kW
11kW
11kW
Product Uses
• Resilient Flooring Manufacturing
Ideally suited for the batch production of EVA floors, rubber floors, and PVC anti-static flooring. The machine's precision ensures clean edges for tiles and planks used in commercial and industrial settings.
• Heavy-Duty Decorative Materials
Efficiently processes tougher materials such as asphalt flooring and thick carpets. Its high-pressure balancing system allows it to cut through dense surfaces without material deformation or fraying.
• Wall & Special Surface Processing
Perfect for cutting various wall decorative materials and specialized sheets into large finished pieces. The optional infrared positioning and pre-punching features support the production of complex shapes and custom-sized decorative panels.
