Clamp Feeding Hydraulic Traveling Head Die Cutting Machine

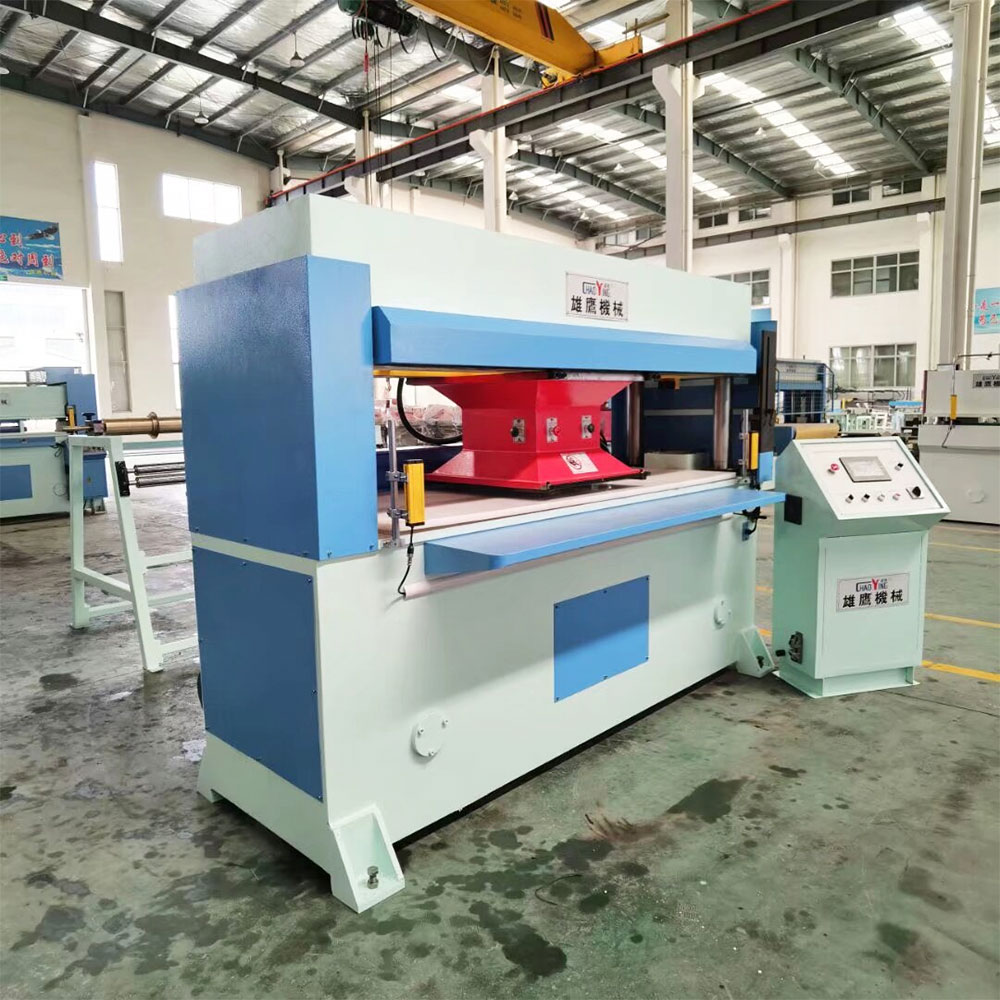

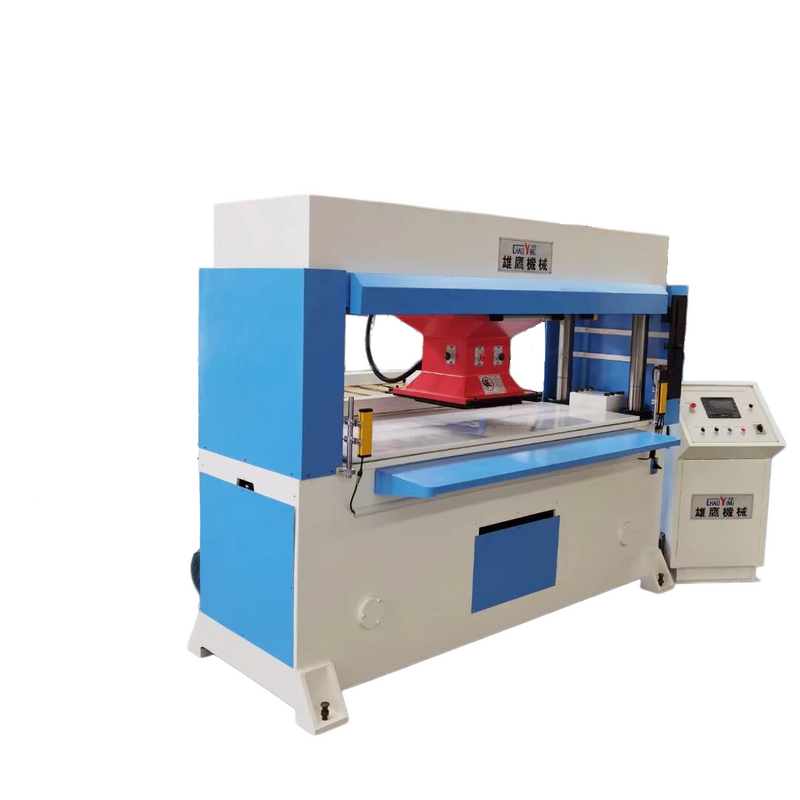

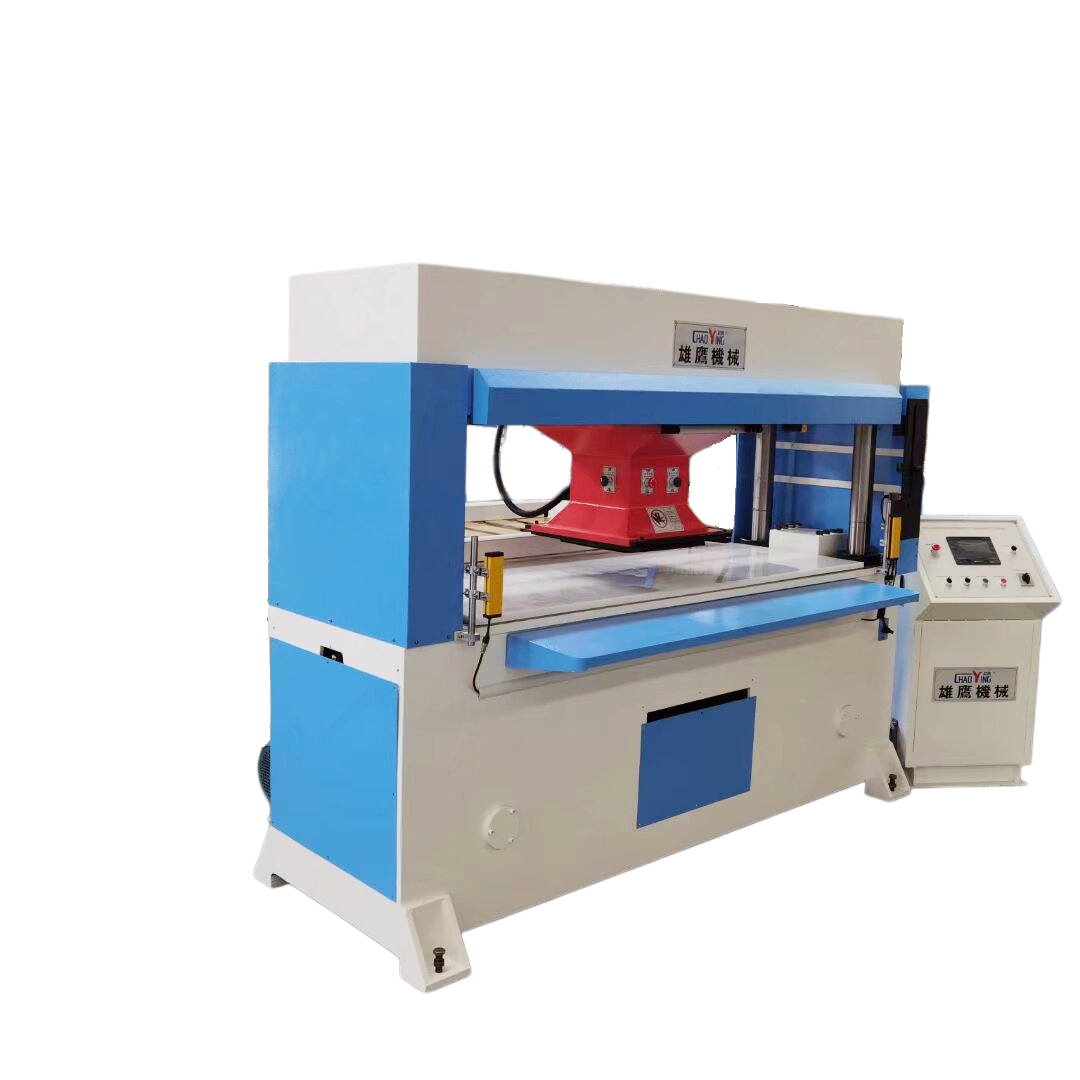

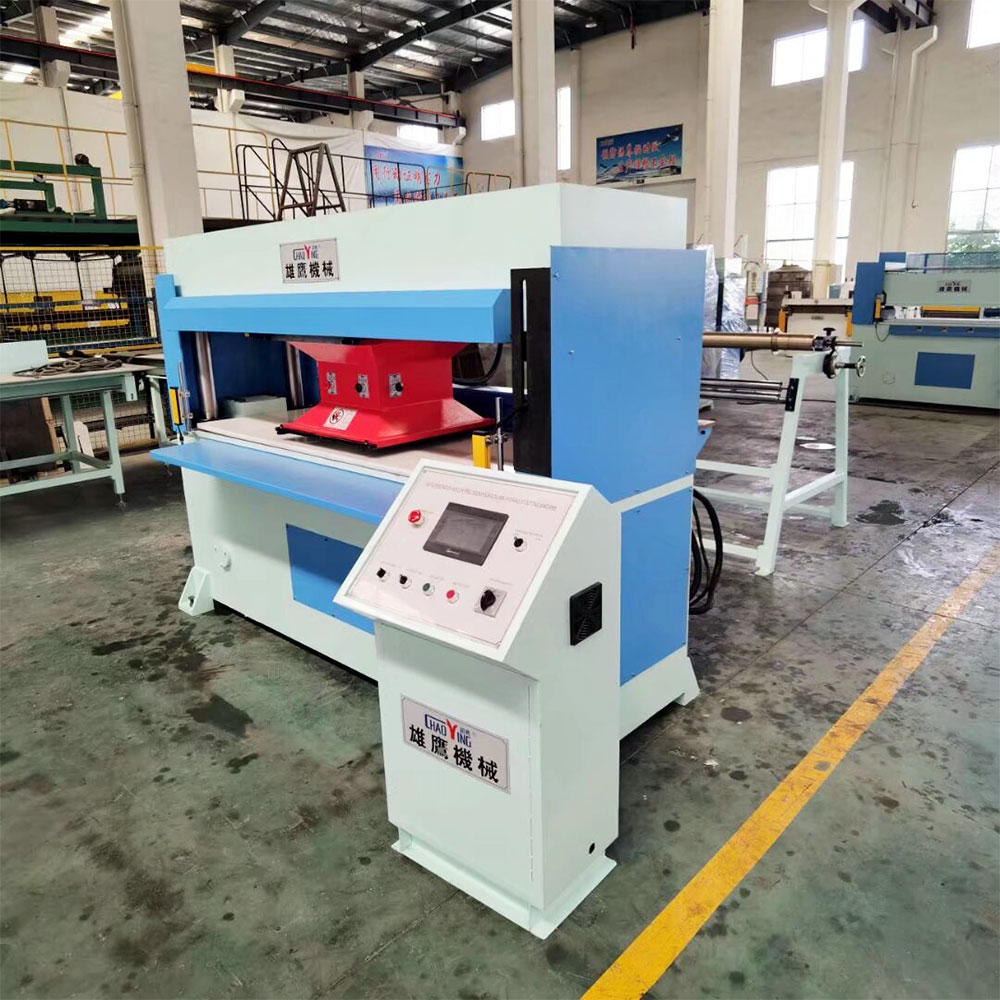

This high-efficiency Automatic Traveling Head Cutting Machine is specifically engineered for the continuous, large-batch processing of non-metallic coiled materials. Integrating a sophisticated PLC touch screen control system with advanced mechanical engineering, it automates the entire production cycle from material feeding to precise die-cutting. The machine is designed for stability and high-volume throughput, offering multiple operating modes—manual, semi-auto, and full-automatic—to suit various production scales. It provides a reliable and highly productive solution for modern manufacturers requiring consistent quality, high precision, and minimal manual intervention.
The machine is equipped with double oil cylinders and a precision four-column auto-balancing link structure. This robust design ensures that cutting pressure is perfectly distributed across the entire work surface, guaranteeing a uniform cutting depth at every position. This mechanical precision is critical for maintaining high product quality in multi-layer or high-specification industrial applications.
• High-Accuracy Positioning with Ball Screw Drive
By incorporating a precision ball screw drive, the machine achieves exceptionally accurate positioning and ultra-stable operation. This technology allows the traveling head to move with micro-level precision, directly contributing to the high consistency of final products. The smooth, vibration-free movement also reduces mechanical wear and extends the service life of both the machine and the cutting dies.
• Advanced Double-Clip Auto-Feeding System

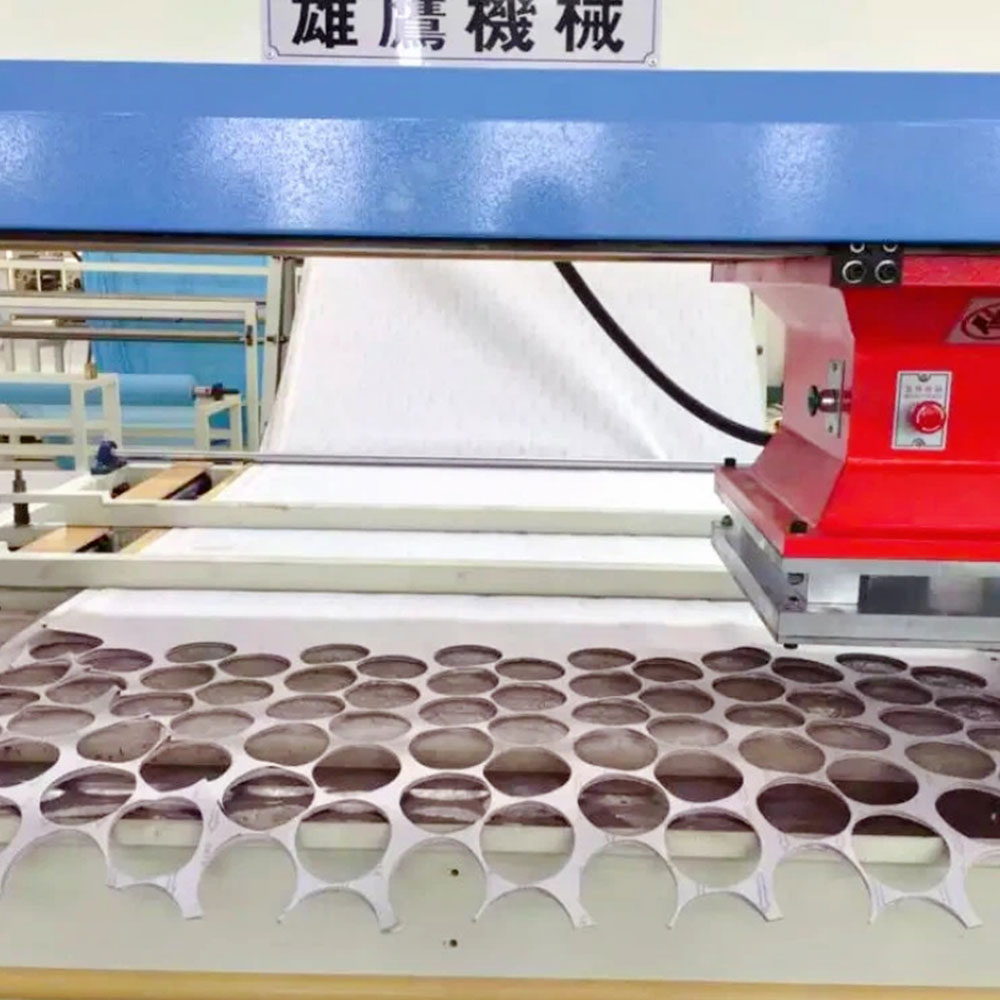

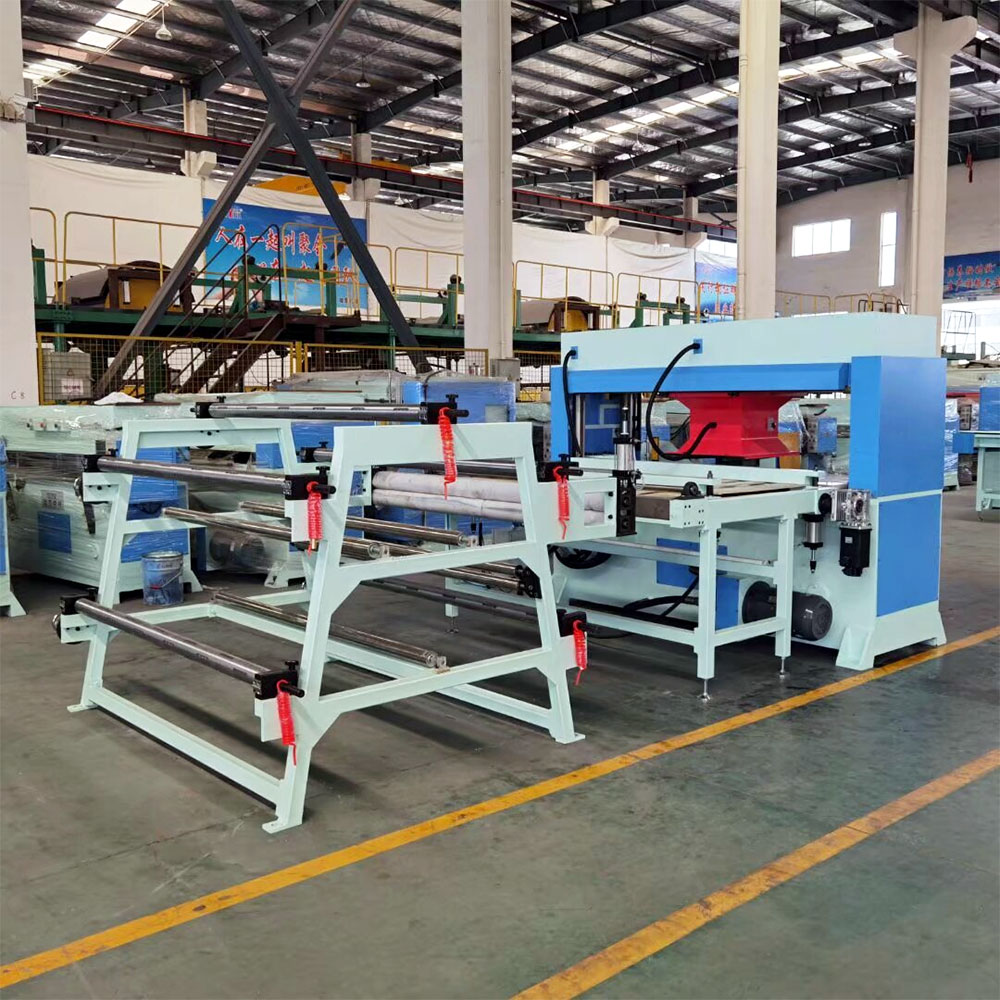

Featuring a specialized air-operated double-clip auto-feeding mechanism, the machine integrates seamless material handling with PLC program control. The system automatically manages the horizontal movement of the traveling head and the synchronized feeding of rubber rolls. This automation significantly reduces the need for manual handling, streamlines the continuous production process, and ensures high efficiency.
• Intelligent Material Saving with Dislocation Mode
A standout feature is the "automatic dislocation" cutting mode. This intelligent system calculates the optimal cutting layout to reduce unnecessary strokes and minimize material wastage. By maximizing the utilization of raw materials, businesses can achieve significant cost savings over time, making this machine a highly economical choice for large-scale manufacturing.
• Full Automation & Rapid Setup
With its full-automatic mode, the operator only needs to pick up finished products, which drastically lowers labor intensity and increases overall work efficiency. Additionally, the machine is equipped with a special fixture for the quick and simple installation of cutting dies, minimizing downtime during production shifts and ensuring a safer, more productive work environment.
Technical Parameters
Model
XYJ-1/35
XYJ-1/40
XYJ-1/50
Max.cutting force
350kN(35Ton)
400kN(40Ton)
500kN(50Ton)
Stroke adjustment range
0—120mm
0—120mm
0—120mm
Range between the working tables
30—150mm
30—150mm
30—150mm
Size of traveling head
500*500mm
500*500mm
600*600mm
Size of lower worktable
1600*600mm
1600*600mm
1600*750mm
Motor power
3kW
3kW
5.5kW
Product Uses

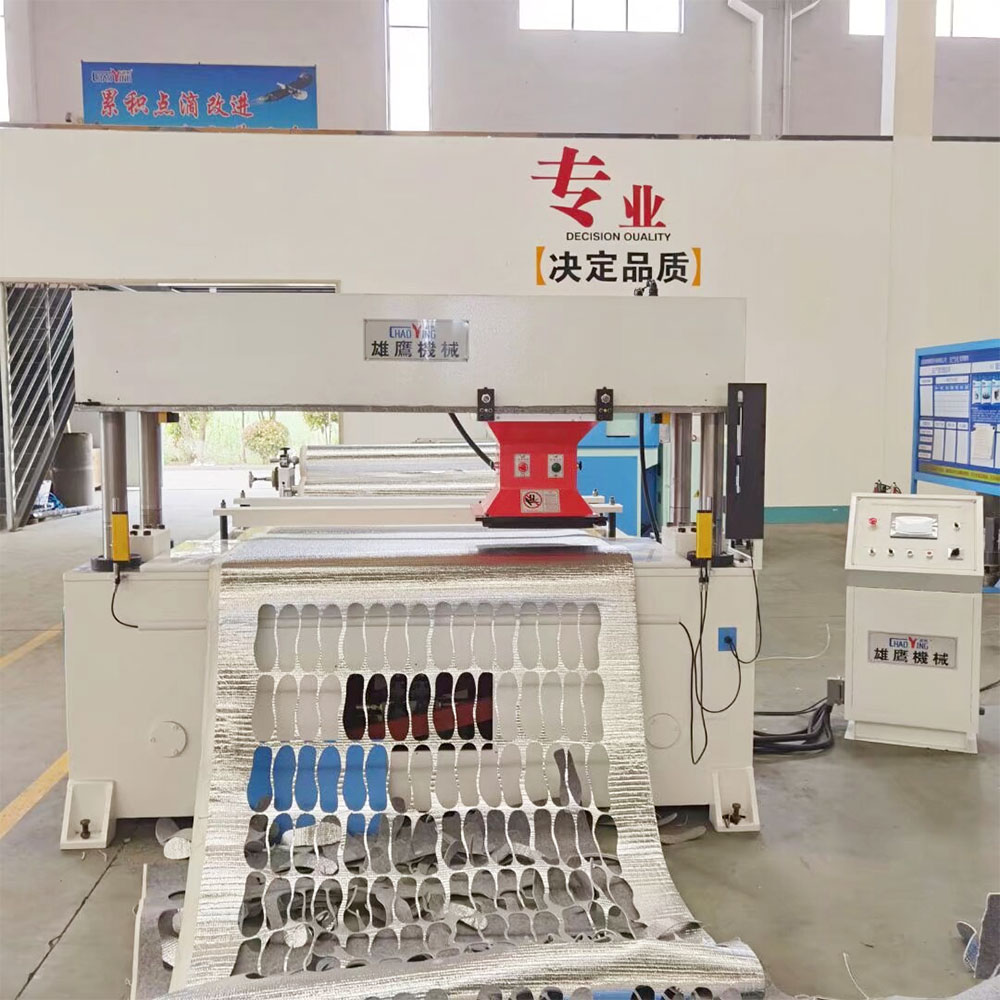

• Footwear Industry Components
Ideal for mass-producing shoe soles, insoles, shoe-pads, and uppers from coiled synthetic materials with high repetition accuracy and speed.
• Sports Goods Manufacturing
Perfectly suited for cutting specialized segments for sports balls and various athletic equipment that require strict specification consistency.
• Abrasive Material Processing
Specifically designed to handle the continuous and stable cutting of abrasive papers and other high-wear non-metallic coiled materials.
• Medical & Industrial Supplies
Efficiently processes medical disposables and various non-metallic industrial components, providing a high-speed and hygienic solution for critical manufacturing sectors.
