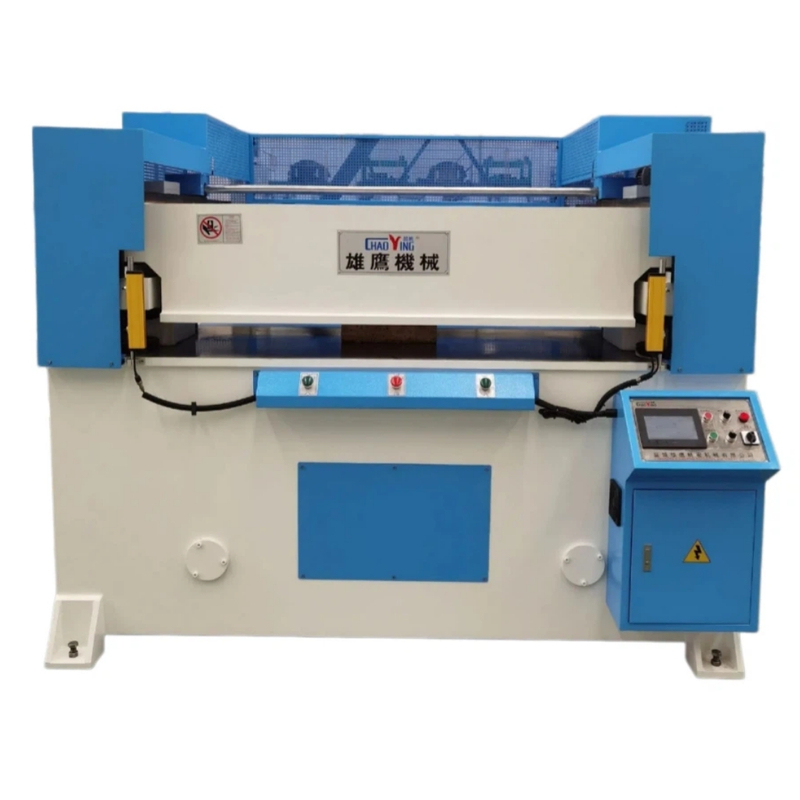

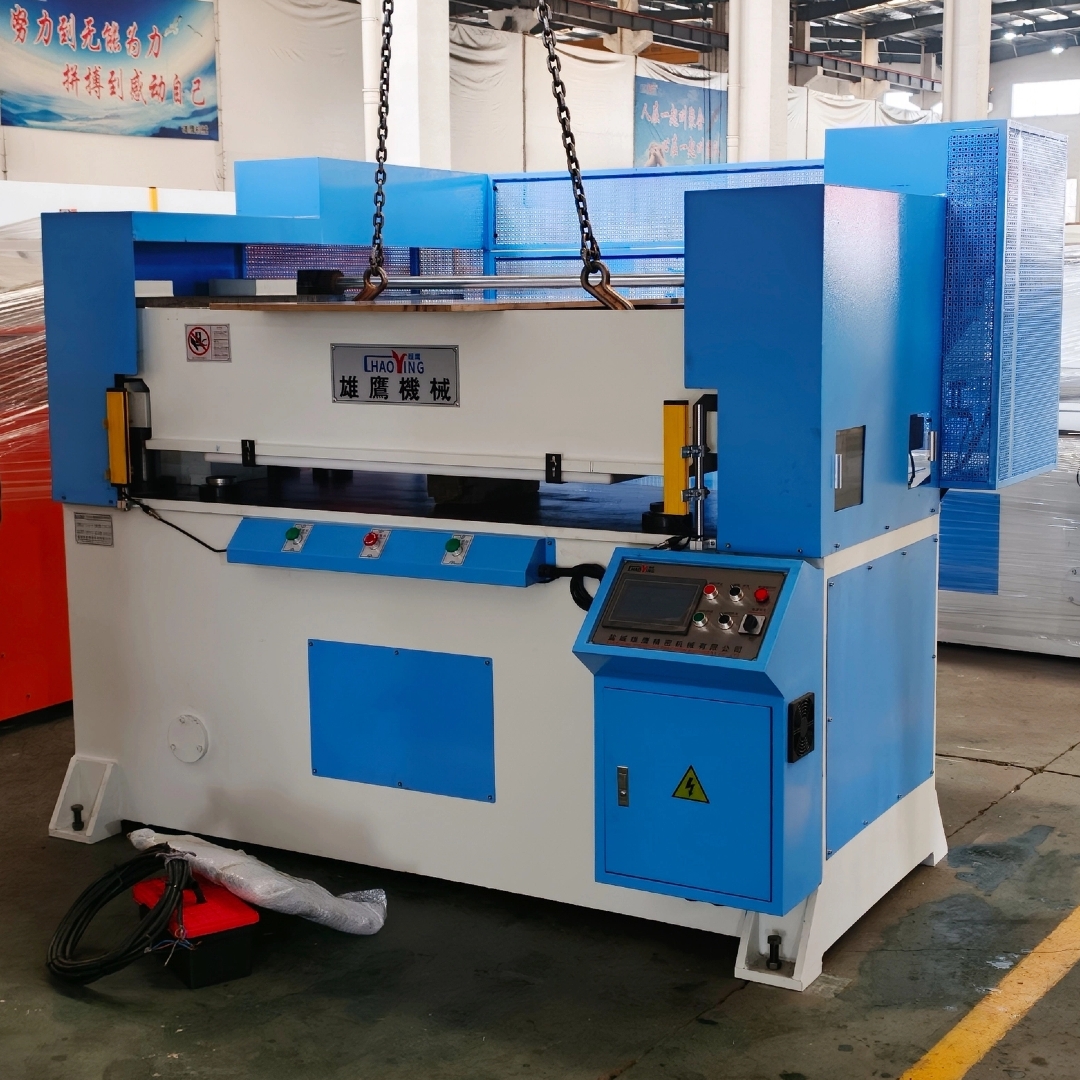

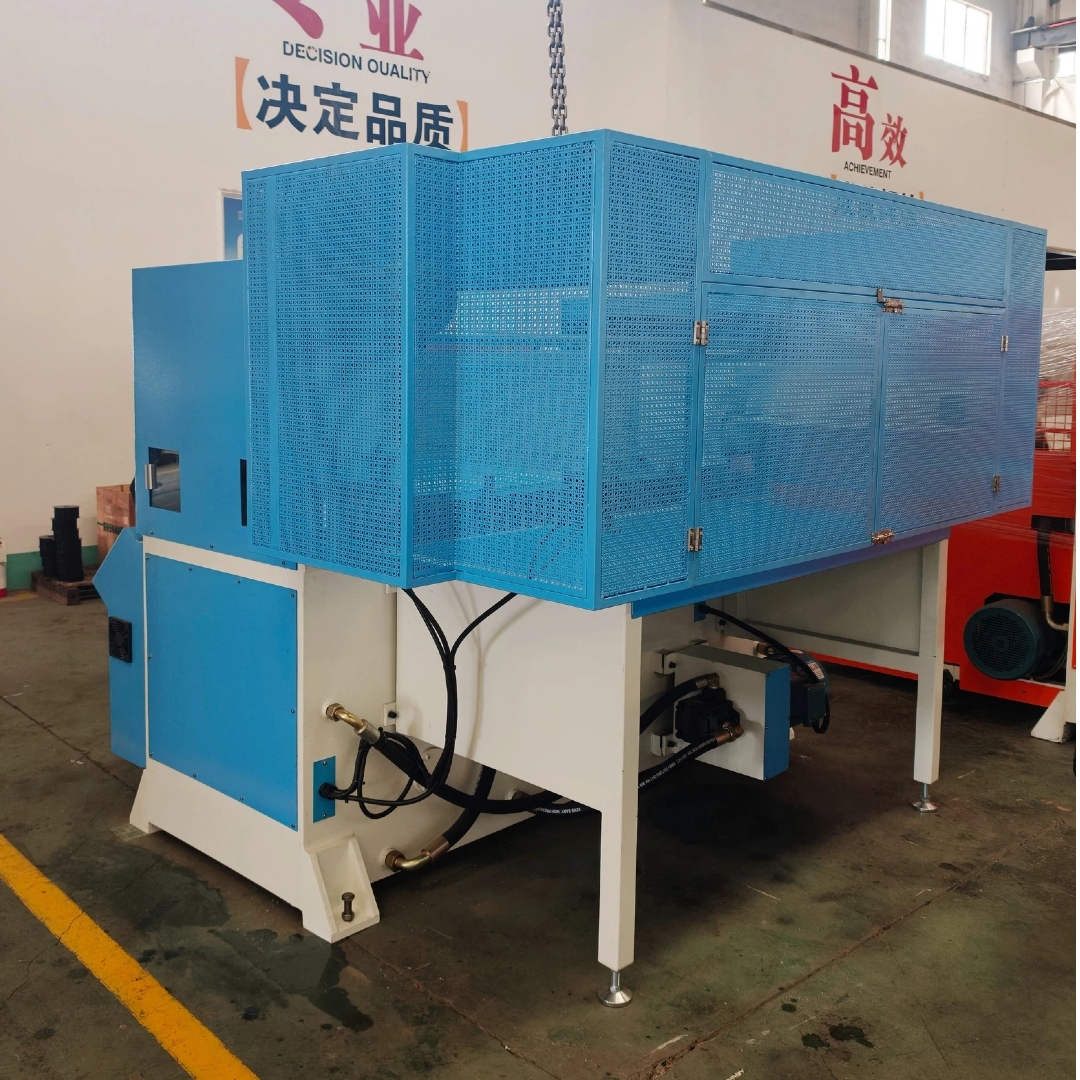

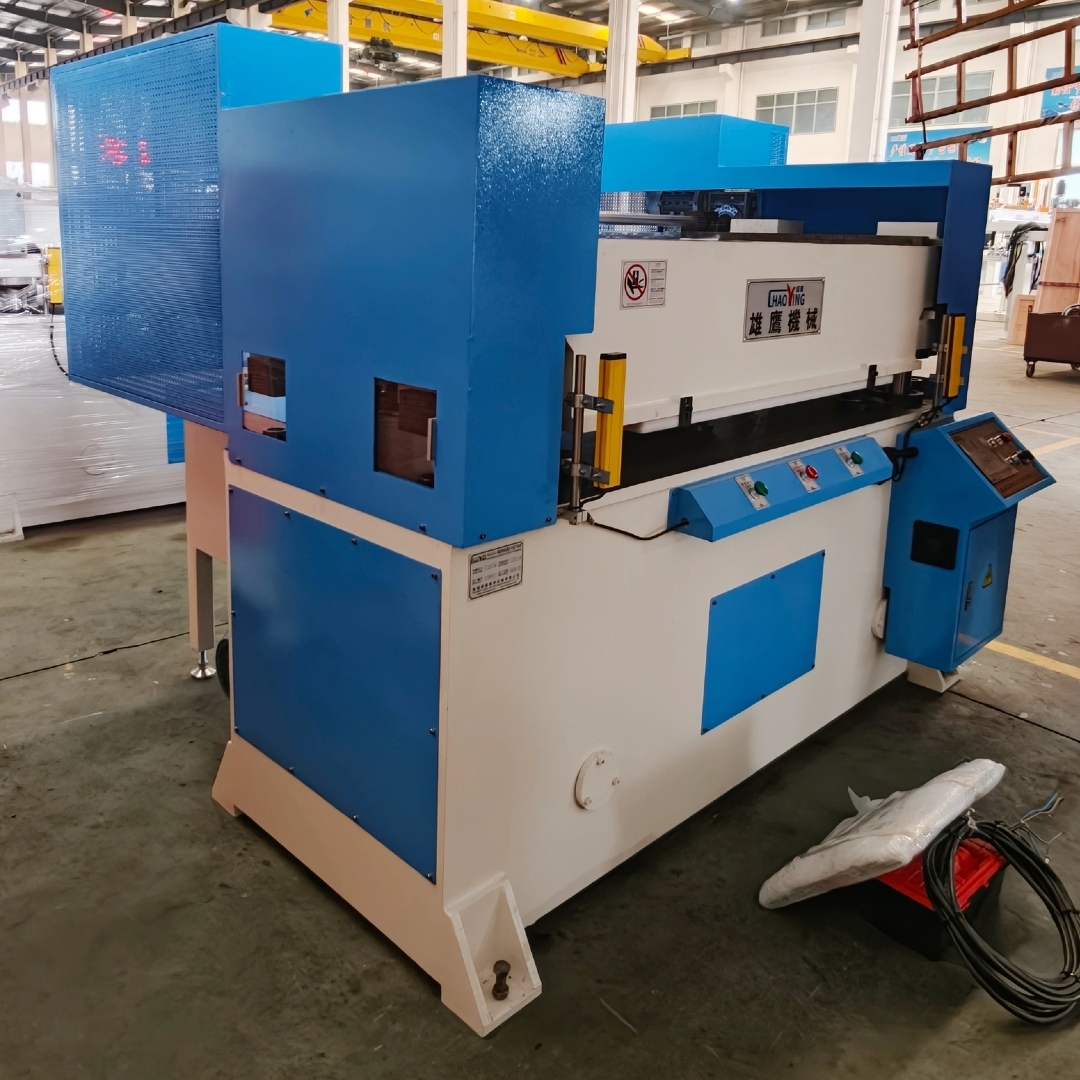

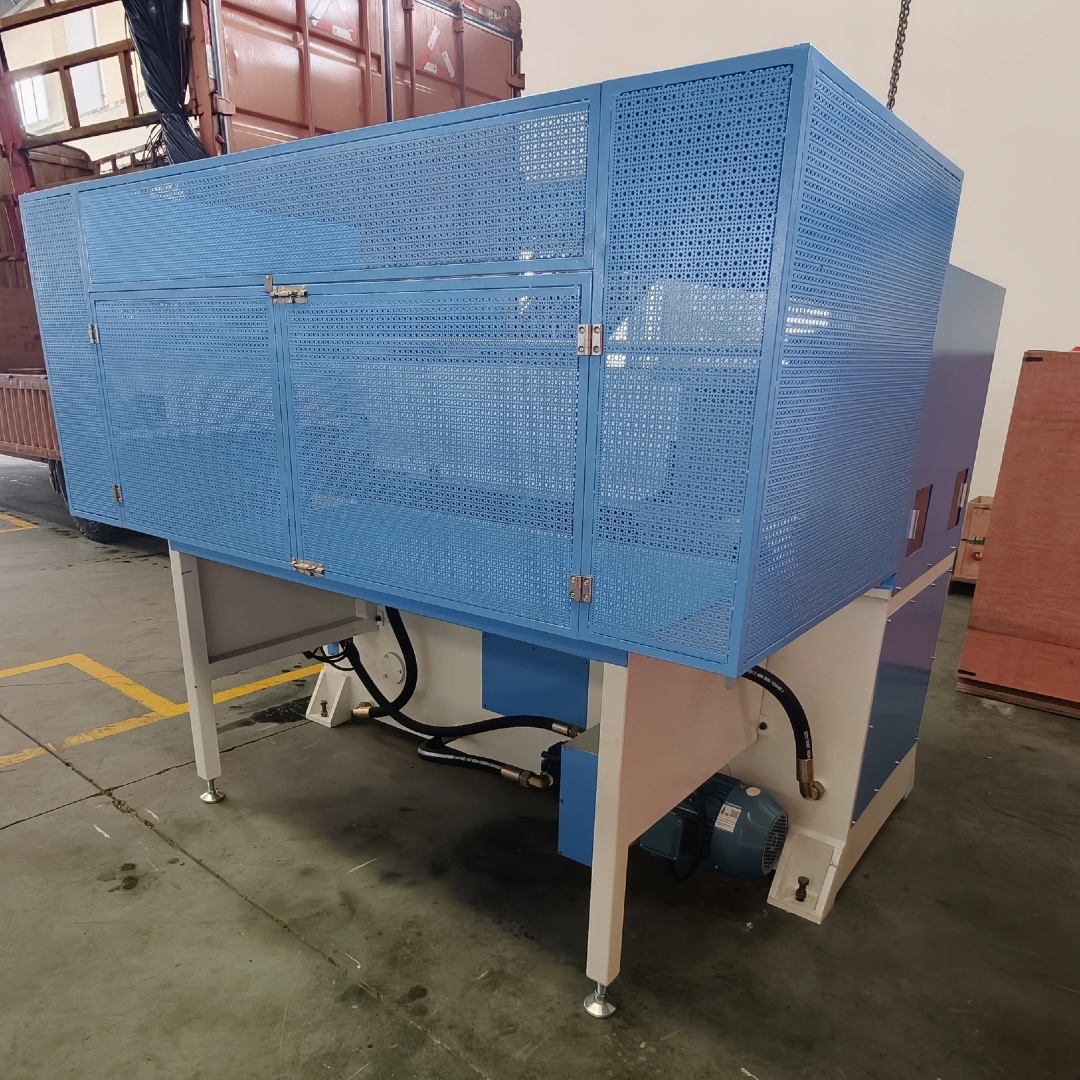

Receding Head 4-Column Hydraulic Die Cutting Machine
The PLC-Controlled Automatic Moving Head Cutting Machine is a state-of-the-art industrial solution designed for high-precision processing of single-layer or multi-layer non-metallic materials. Engineered with a precision four-column auto-balancing structure and double oil cylinders, it handles materials like leather, rubber, textiles, and plastics with exceptional stability. The machine features an intelligent PLC touch screen interface that automates the cutting cycle, including the automatic forward and backward movement of the cutting head. This equipment is ideal for high-volume manufacturing environments where efficiency, consistent cutting depth, and operator ergonomics are paramount, ensuring a seamless workflow from material feeding to final output.
The machine integrates a state-of-the-art PLC touch screen program control system that manages every aspect of the cutting cycle. A significant technical advantage is the intelligent pressure feedback system, which automatically senses the cutting die without requiring manual height adjustments. This automation significantly reduces setup time and prevents die damage, allowing operators to switch between different tools and materials quickly while maintaining perfect cutting results every time.
• Automatic Moving Head for Optimal Ergonomics
Unlike traditional fixed-head machines, the upper cutting board moves forward and backward automatically. This design provides the operator with the best possible visual field for placing the cutting die and feeding material. The entire movement cycle—moving forward, dropping, cutting, rising, and moving back—is executed in one continuous motion. This seamless automation greatly increases work efficiency while significantly reducing the physical labor intensity of the operator.
• Precision Four-Column Auto-Balancing System
Built with a precision four-column auto-balancing link structure and powered by double oil cylinders, the machine ensures that pressure is distributed perfectly across the entire work surface. This structural integrity guarantees a uniform cutting depth at every position on the cutting bed. Such precision is vital for large-area cutting tasks, ensuring that every finished part meets the highest quality standards without inconsistent edges or partial cuts.
• Automatic Slow Cutting for Multi-Layer Precision
To address the challenges of multi-layer material processing, the machine features an automatic slow-cutting function. When the upper board touches the cutting die, it automatically decelerates to ensure a clean, vertical cut. This technology eliminates size errors between the top and bottom layers of high stacks, ensuring that every piece in a multi-layer batch is dimensionally identical, which is critical for the apparel and automotive upholstery sectors.
• Advanced Safety Grating & Automatic Lubrication
Safety and long-term reliability are core priorities. The machine is equipped with a high-sensitivity safety grating that protects the operator during the cutting stroke. Additionally, a central oil supply automatic lubricating system ensures that all critical moving parts remain perfectly oiled. This reduces friction and wear, maintaining high working precision over years of operation and significantly prolonging the service life of the equipment in demanding factory environments.
Technical Parameters
Model
XYJ-3/50
XYJ-3/80
XYJ-3/100
Max.cutting force
500kN(50Ton)
800kN(80Ton)
1000kN(100Ton)
Stroke adjustment range
0—140mm
0—140mm
0—140mm
Range between the working tables
50—190mm
50—190mm
50—190mm
Size of upper cutting board
1600*800mm
1600*800mm
1600*1000mm
1600*800mm
1600*1000mm
Size of lower worktable
1600*820mm
1600*820mm
1600*1020mm
1600*820mm
1600*1020mm
Motor power
5.5kW
7.5kW
11kW
Product Uses
• Apparel and Leather Goods Manufacturing
This equipment is the premier choice for large-scale production of footwear, bags, and clothing. Its ability to handle multi-layer leather, textiles, and chemical fibers with zero size error makes it perfect for mass-producing complex garment patterns and accessories. The automatic moving head allows for rapid material feeding, maximizing the output of busy fashion manufacturing lines.
• Industrial Packaging and Synthetic Materials
The machine is highly effective in the processing of rubber, plastics, and various packaging materials. Its strong cutting force and precision balancing make it ideal for creating industrial gaskets, foam inserts, and protective packaging components. The intelligent PLC control allows for consistent quality across diverse material densities, providing a versatile solution for the automotive, electronics, and logistics industries.
