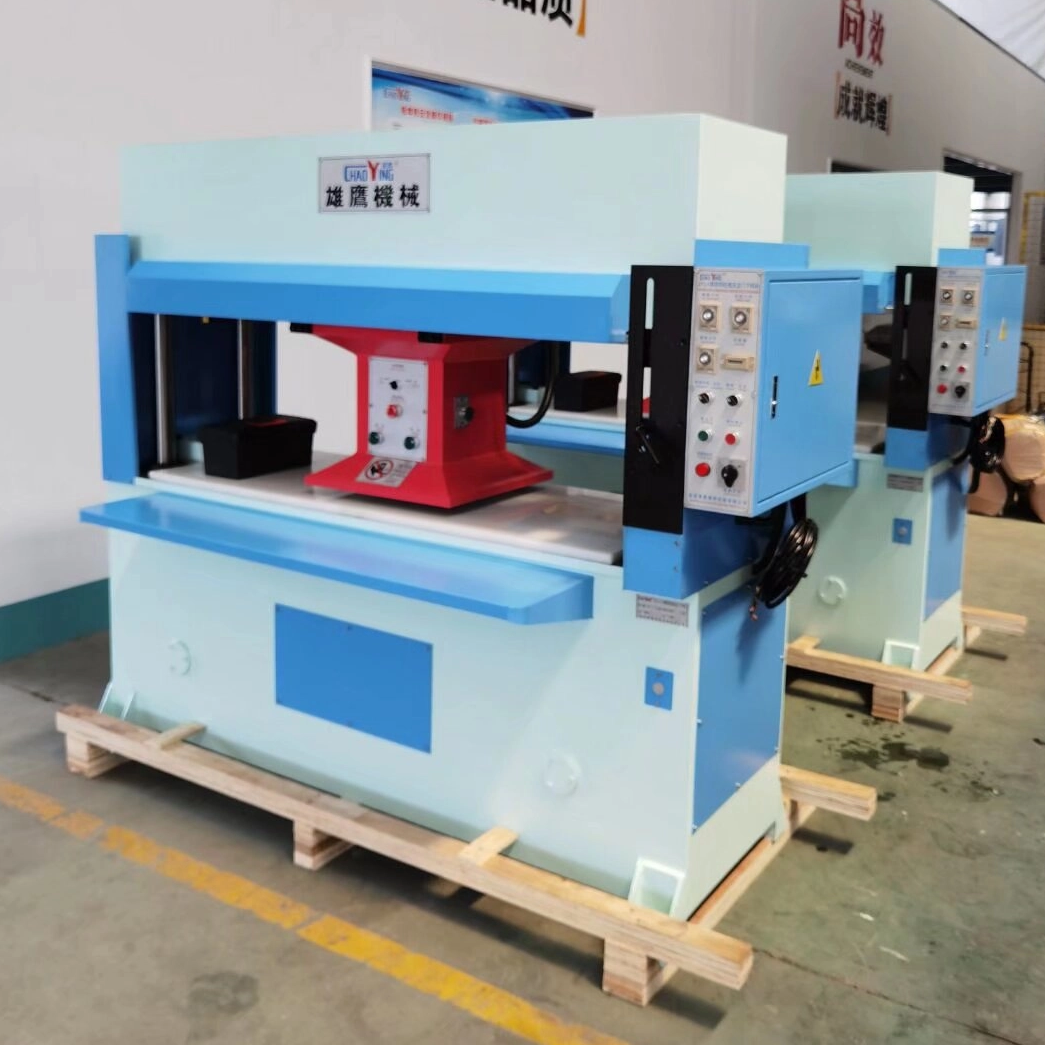

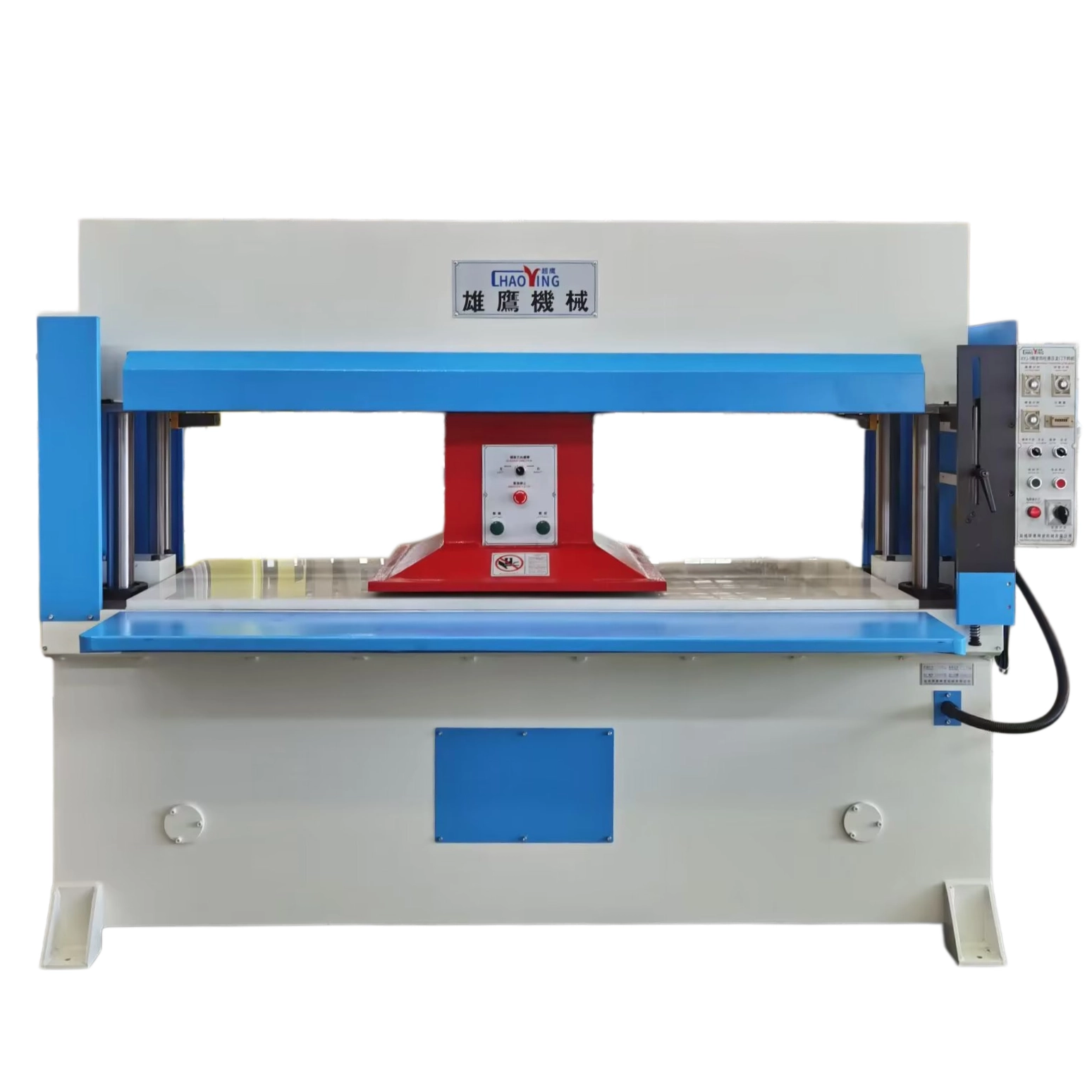

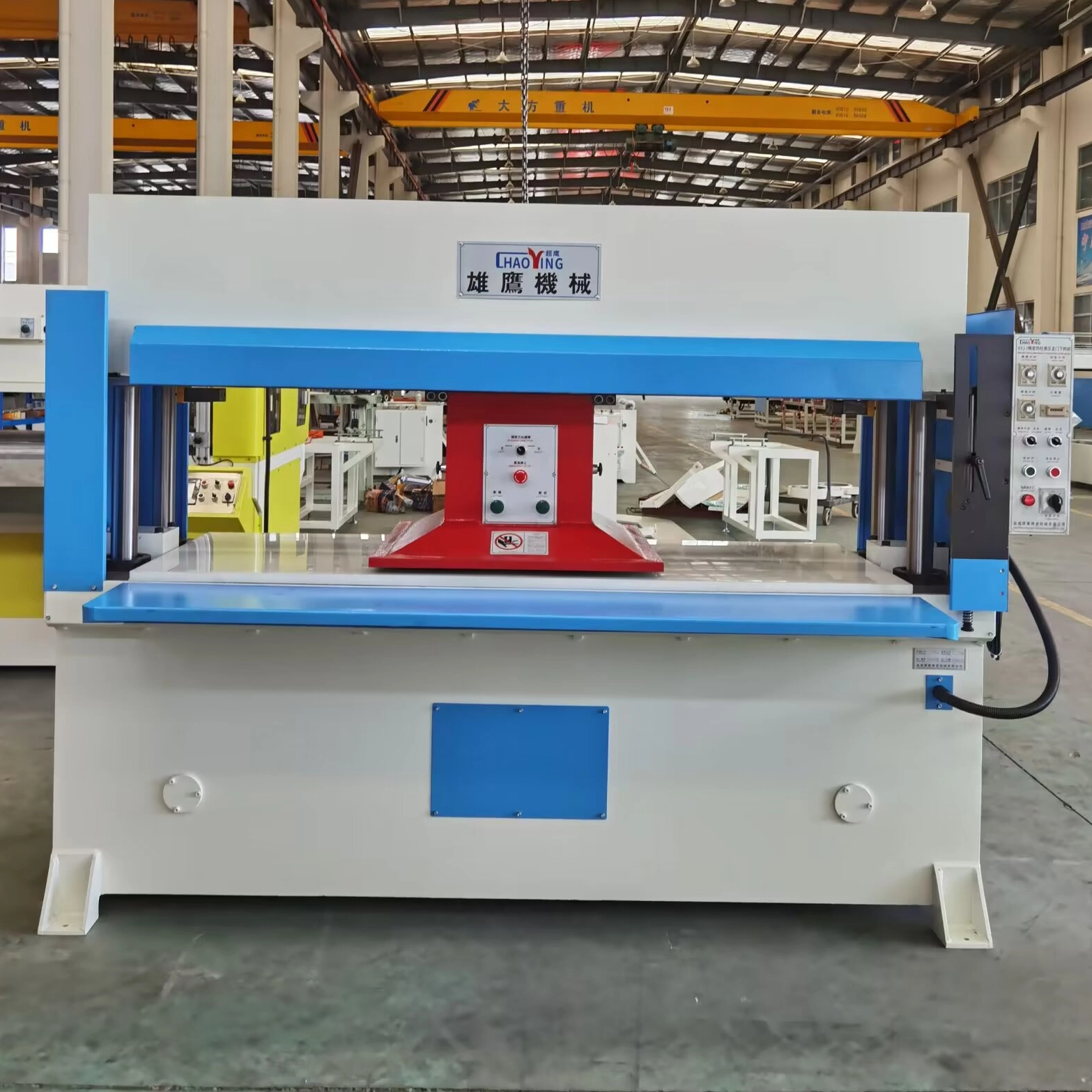

XYJ-1/30
Chaoying
| Quantity: | |
|---|---|
Use and Features
It is suitable for cutting single layer or multi-layer of leather, rubber, plastic, paperboard, fabric, chemical fiber, nonwovens and etc. by the cutting die.
1. Traveling head can move to the left & right, which can provide wide operating visual field.
2. In automatic mode, traveling head can automatically move to the left & rightafter cutting, with easy operation,and saving operation time.
3. Double oil cylinders, precision four-column auto-balancing link structure, which can guarantee uniform cutting depth of each cutting position.
4. When upper cutting board drops down and touches the cutting die, it can automatically slow cutting to make the cutting material no size error between the top and bottom layers.
5. Operation with both hands makes high safety.
6. According to the need of users, it can be extra installed rubber roll auto-feeding device to enhance work efficiency.
Technical Parameters
Max.cutting force | 300kN(30tons) |
Stroke adjustment range | 0-120mm |
Range between the working tables | 30-150mm |
Size of traveling head | 500X500mm |
Size of lower worktable | 1600X500mm |
Motor power | 3kW |

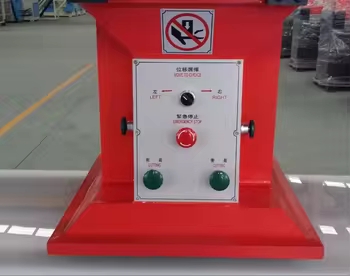

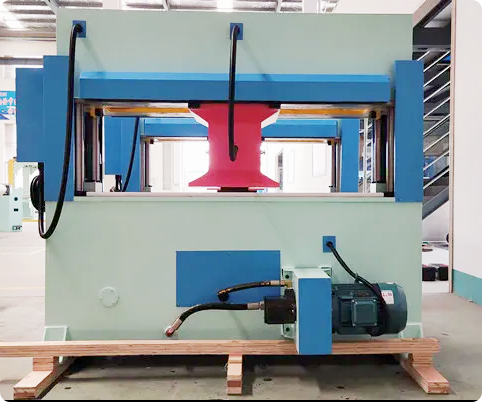

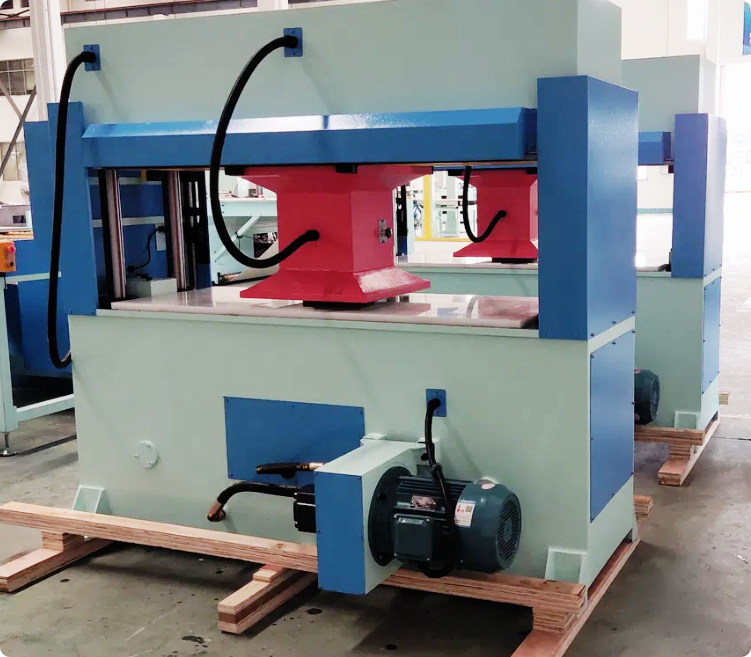

Details image

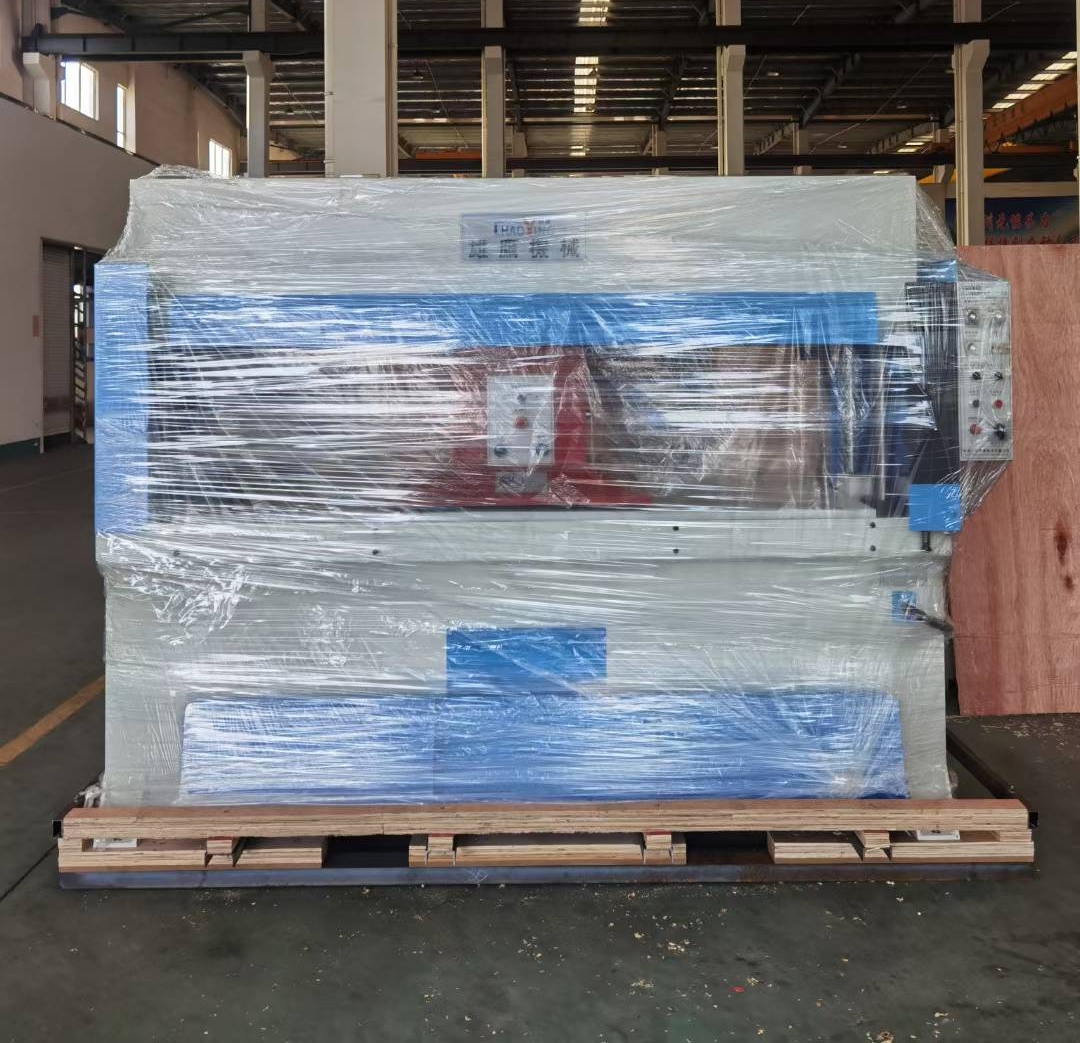

Packaging
