XYJ-3
Chaoying
| Availability: | |
|---|---|
| Quantity: | |

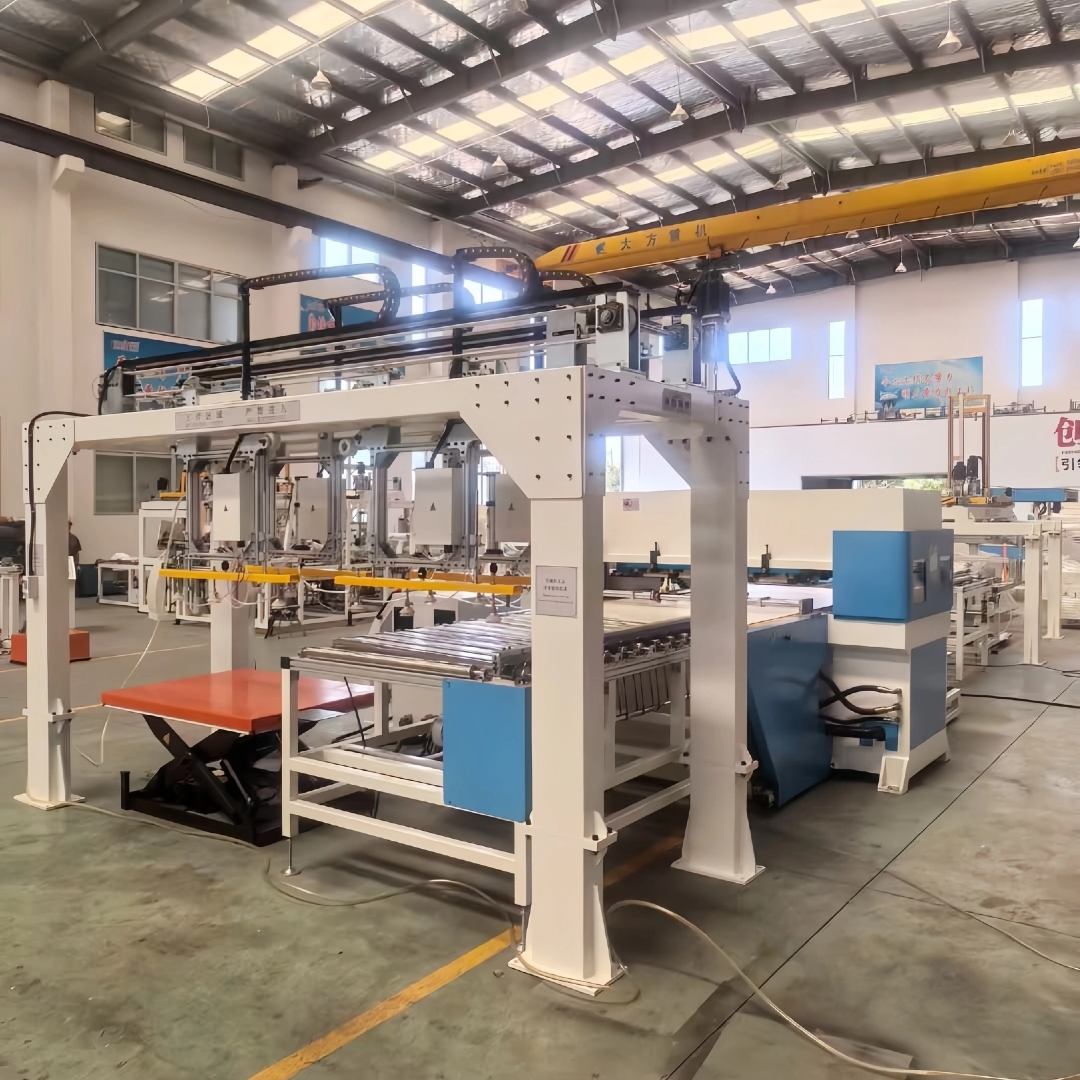

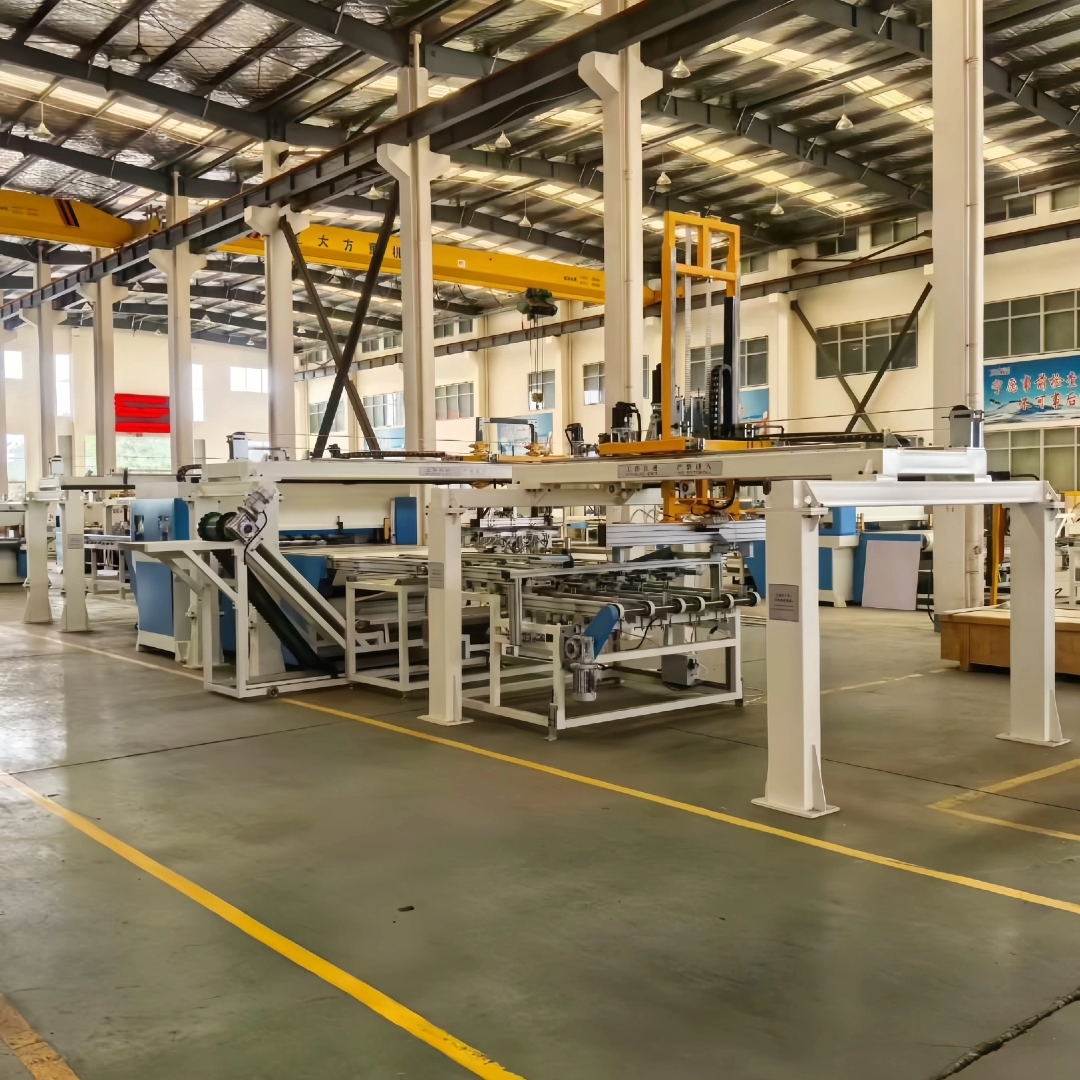

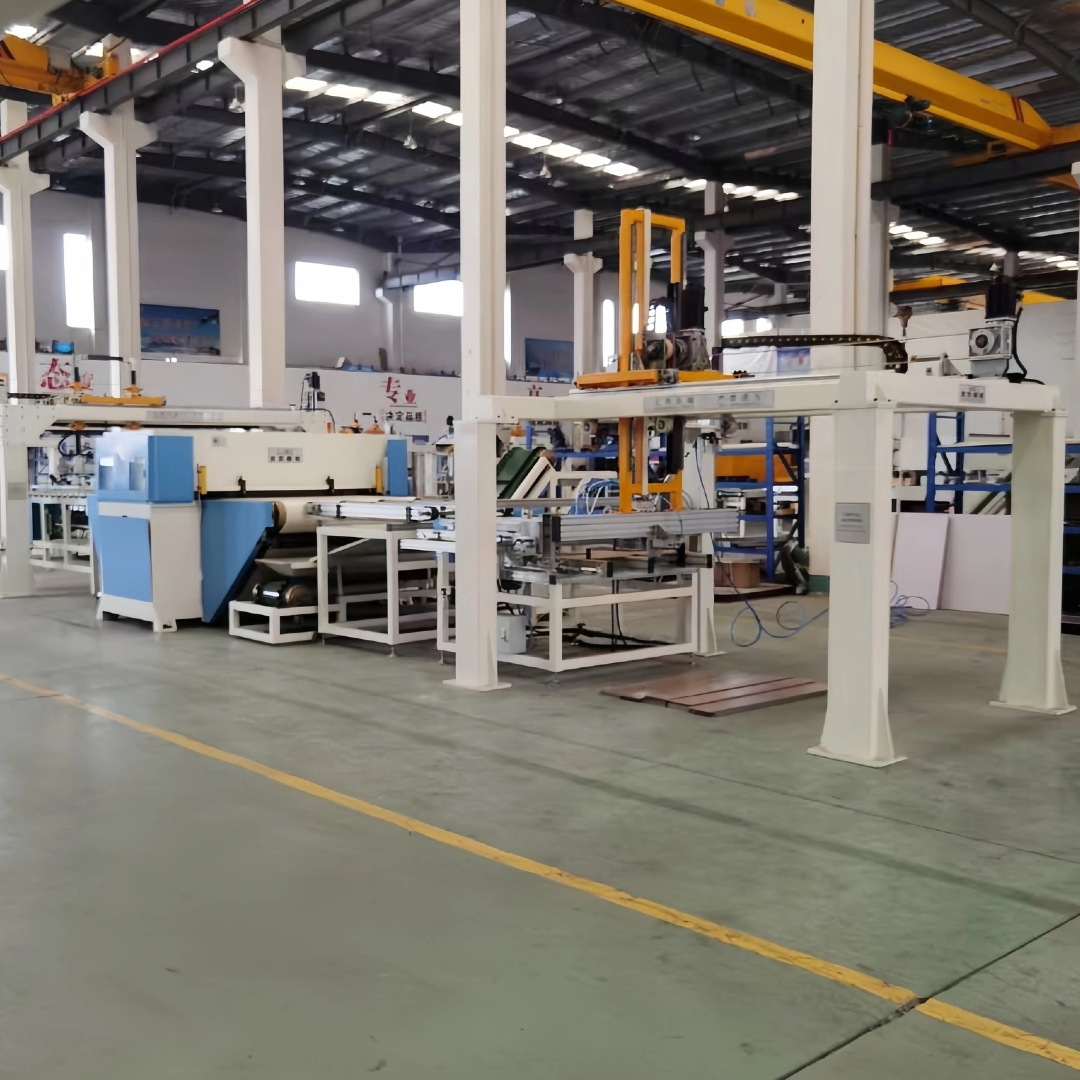

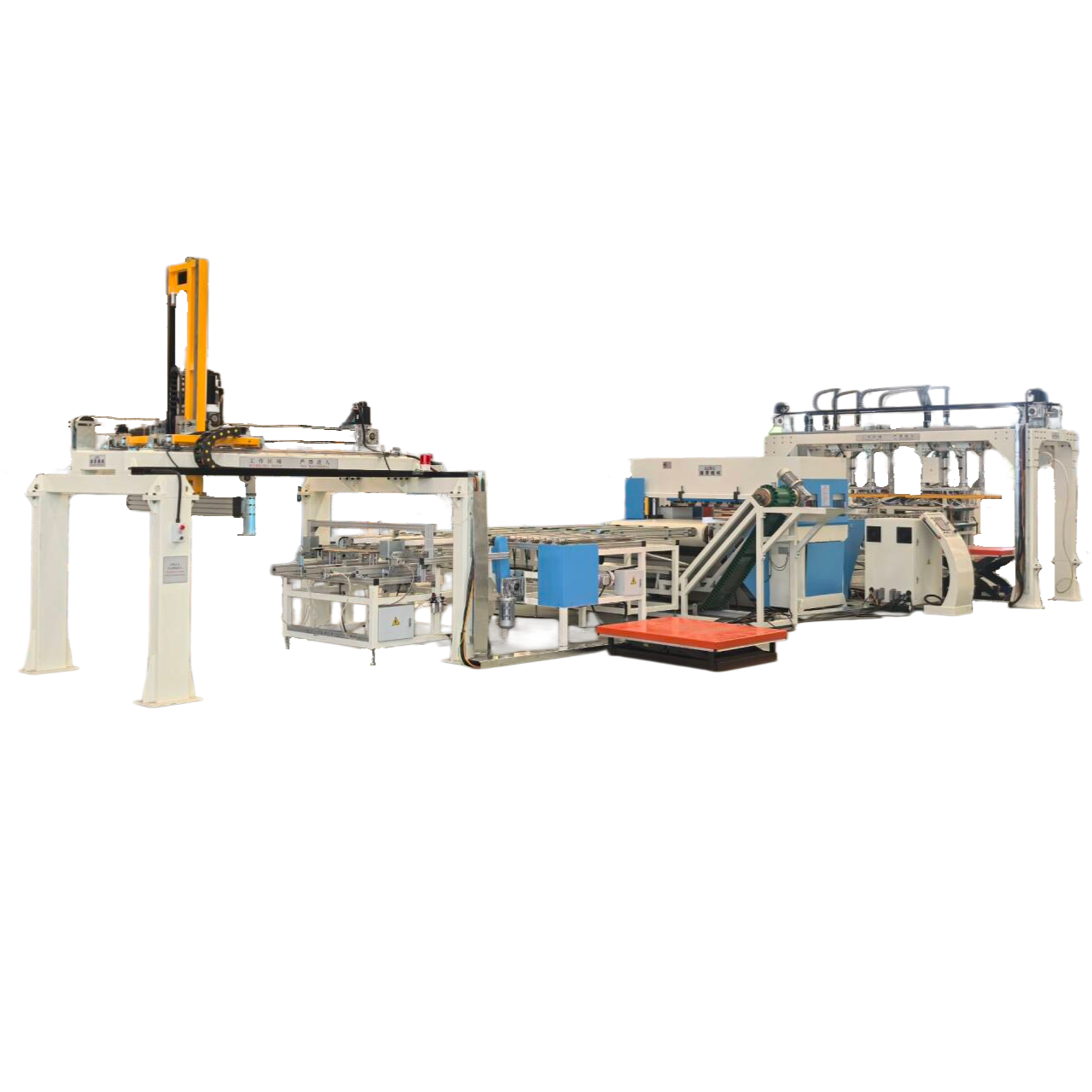

The Fully Automatic LVT Flooring Punching Line is an automatic punching and cutting system for LVT / PVC / vinyl flooring sheets. It is used to punch finished LVT boards into tiles or planks with accurate size, clean edges and stable repeatability. It is suitable for LVT flooring plants that need efficient, automatic sheet-to-tile or sheet-to-plank processing after lamination, cooling and trimming.
Suitable Processing Needs
This line is suitable for buyers who need:
Automatic punching and cutting of LVT flooring sheets.
High-precision tile and plank sizing for residential and commercial flooring.
Stable batch production with reduced manual labor.
Clean cutting edges for PVC, vinyl, LVT composite boards and flexible flooring sheets.
Flexible size adjustment for different flooring specifications.
Machine Structure
Automatic feeding system for stable sheet input.
Punching / cutting unit with adjustable positioning for different tile and plank sizes.
Precision guiding and positioning system to maintain cutting accuracy.
PLC + HMI control system for easy operation and parameter setting.
Safety protection devices for stable and safe production.
Finished product discharge or stacking system for continuous operation.
Optional: servo feeding, vision positioning, automatic scrap removal, customized die tooling.
Performance and Processing Ability
High automation: reduces manual handling and improves production consistency.
Stable punching accuracy: supports uniform size and straight cutting edges.
Fast size changeover: suitable for multi-specification LVT flooring production.
Smooth operation: suitable for continuous working in flooring factories.
Easy maintenance: modular structure and clear control interface.
Customizable configuration: feeding method, punching force, table size and control system can be adjusted by order.
Typical Materials
LVT flooring sheets
PVC vinyl flooring boards
Flexible vinyl tiles
Composite flooring sheets
Decorative PVC boards for flooring applications
Typical Finished Products
LVT floor tiles
LVT floor planks
PVC vinyl tiles
Click or dry-back flooring pieces
Custom-sized vinyl flooring components
Why Buyers Choose This Line
This fully automatic LVT flooring punching line is suitable for flooring manufacturers who need stable cutting quality, high production efficiency and flexible customization. It helps reduce labor cost, improve size consistency and support mass production of LVT flooring tiles and planks. Final model, table size, punching force and speed should be confirmed according to the buyer’s material thickness, product size and daily output requirement.
Model | XYJ-3/120 | XYJ-3/150 | XYJ-3/200 | XYJ-3/300 | XYJ-3/400 | |
Max.cutting force | 1200kN(120Ton) | 1500kN(150Ton) | 2000kN(200Ton) | 3000kN(300Ton) | 4000kN(400Ton) | |
Range between the working tables | 80—280mm | 80—280mm | 100—300mm | |||
Conveyer belt width | 1500mm | 1500mm | 1800mm | 2000mm | ||
Size of upper cutting board | 1600*1100mm | 1680*1100mm | 1900*1100mm | 2000*1100mm | 2100*1100mm | |
Size of lower worktable | 1600*1120mm | 1680*1120mm | 1900*1120mm | 2000*1120mm | 2100*1120mm | |
Main motor power | 11kW | 11kW | 15kW | |||
Total power | 32.8kW | 32.8kW | 34.4kW | 38.4kW | 38.4kW | |
