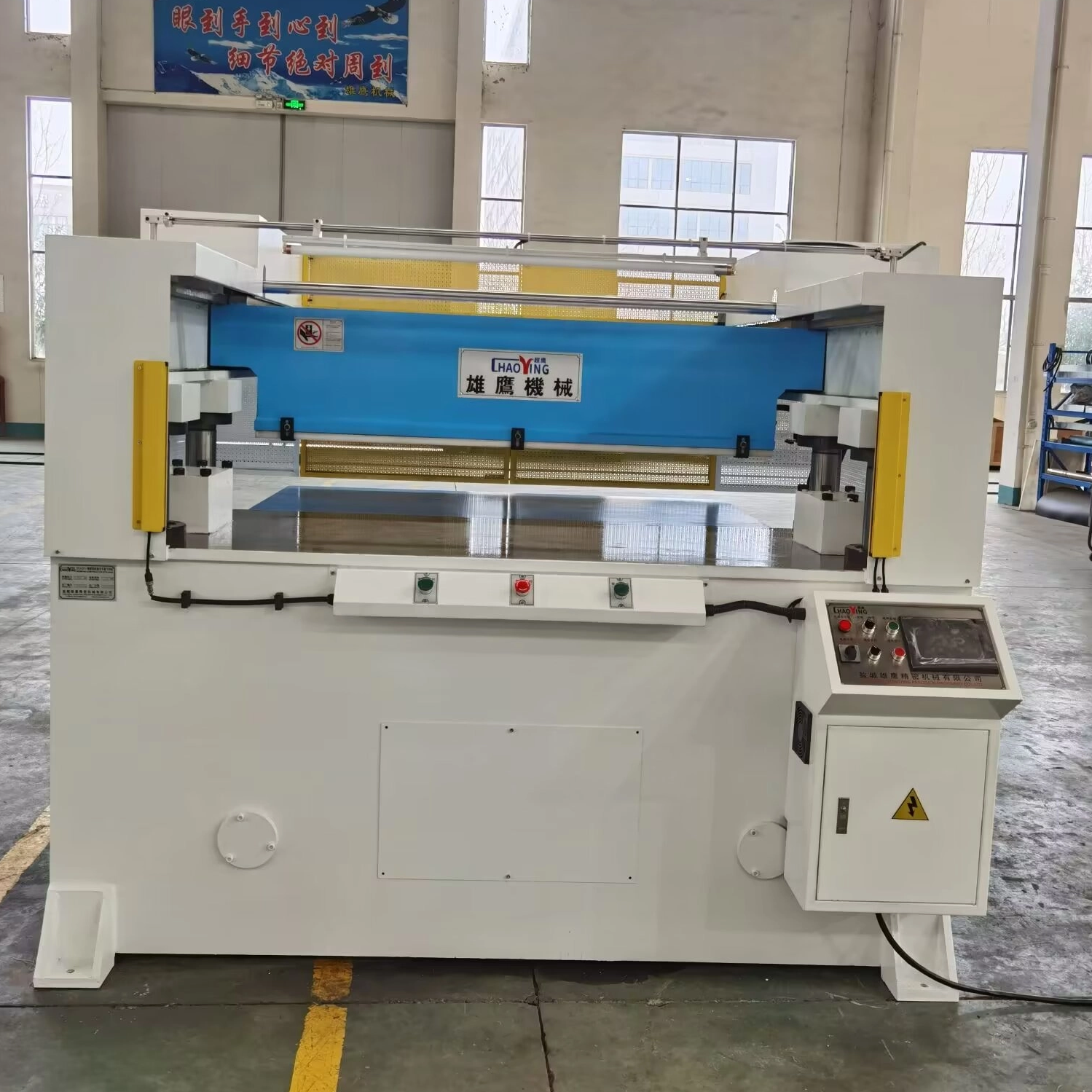

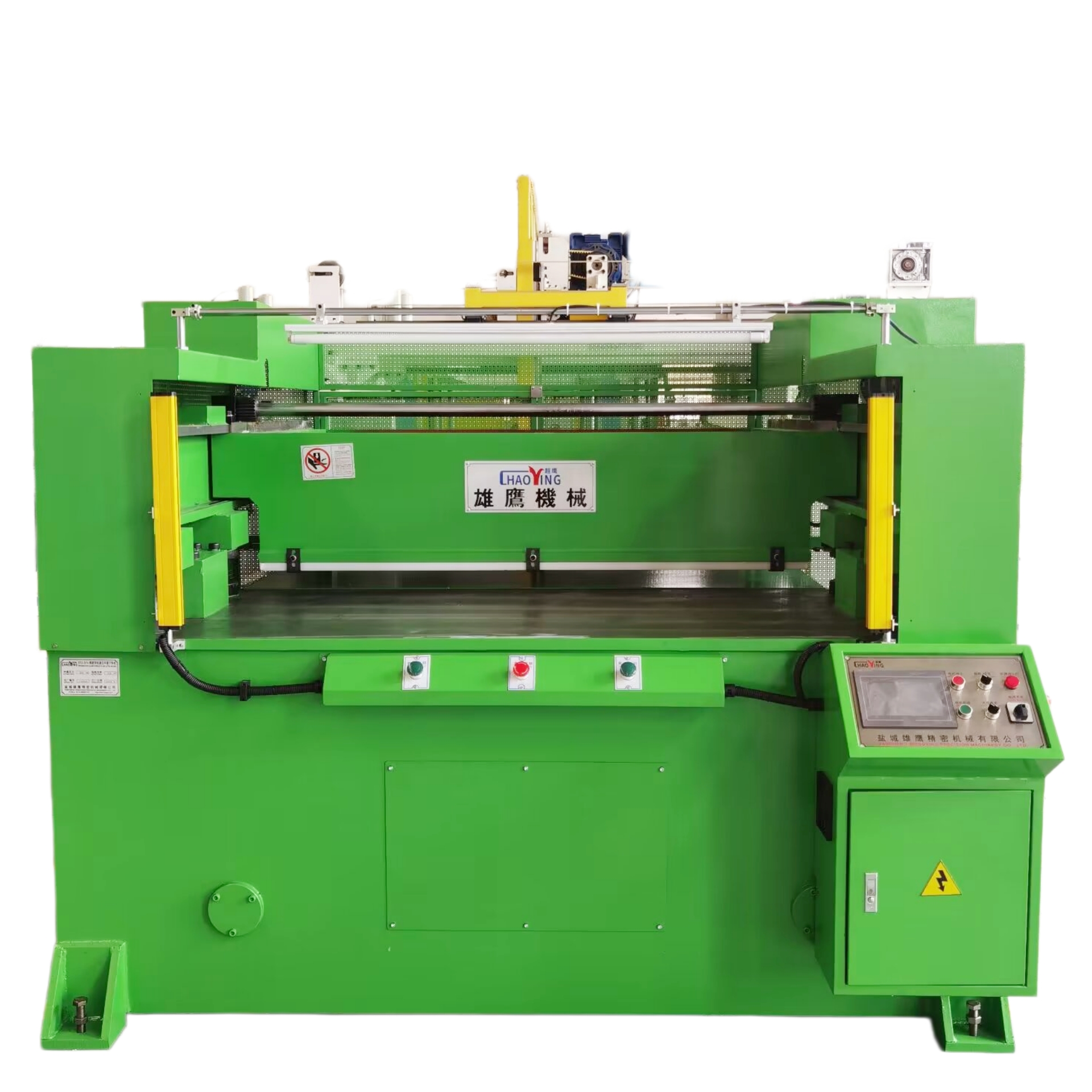

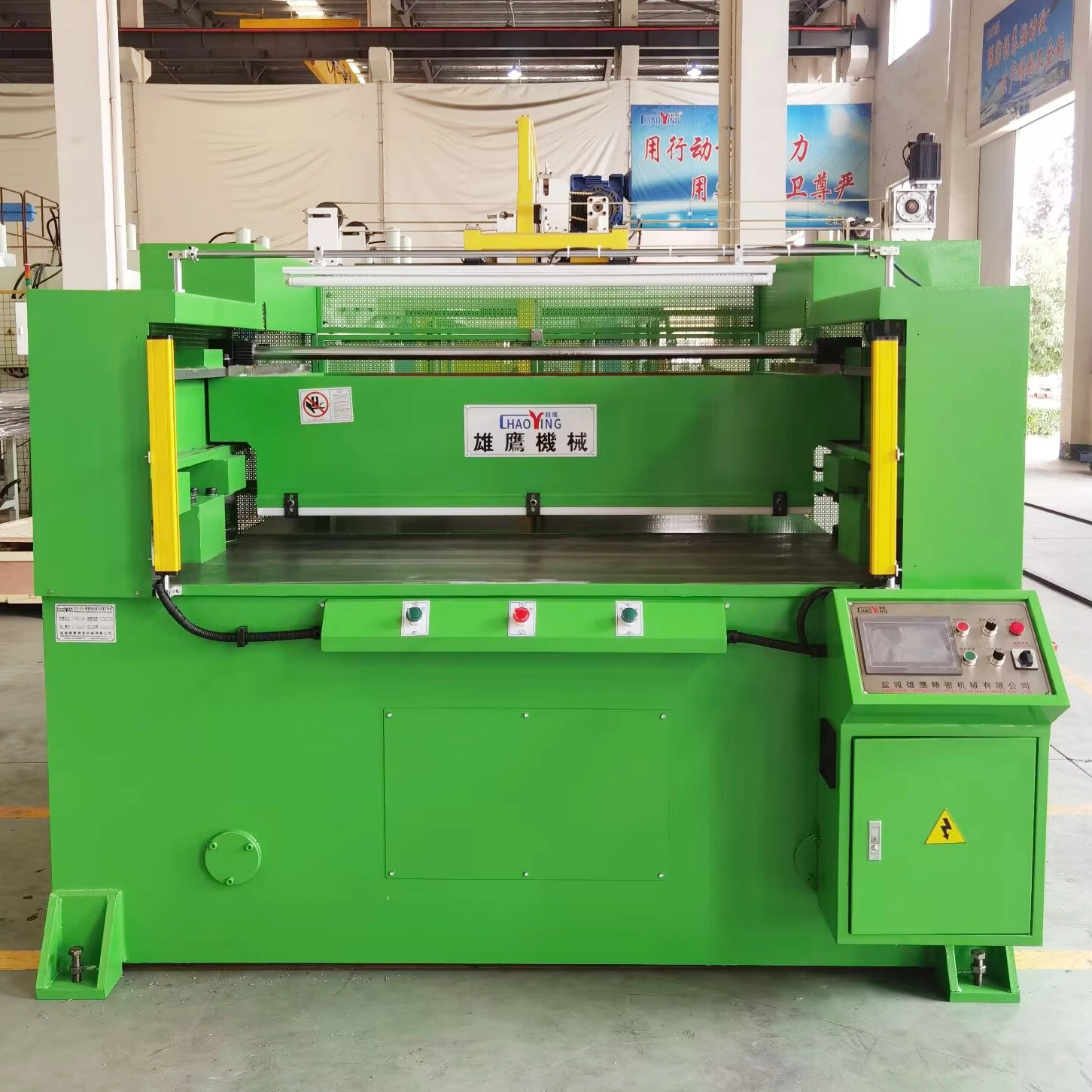

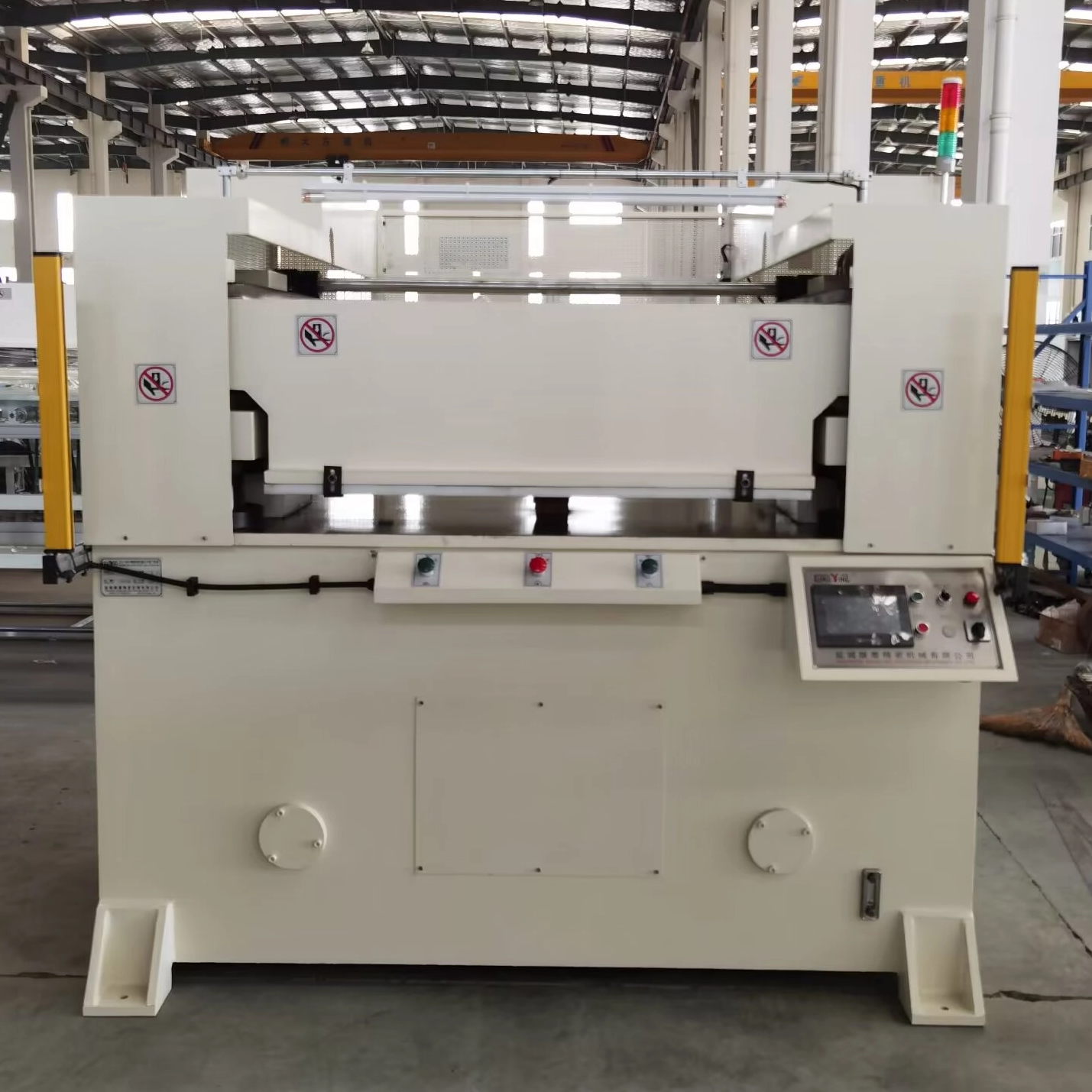

XYJ-3
Chaoying
| Quantity: | |
|---|---|
This machine is ideally suited for die-cutting single or multiple layers of non-metallic materials, including leather, rubber, plastics, packaging materials, textiles, and synthetic fibers.
1.Intelligent PLC Control: Features a PLC touch screen interface with smart pressure adjustment, eliminating the need for manual die-height calibration.
2.Ergonomic & Automated Operation: The upper cutting board moves forward and backward automatically to provide an unobstructed view. The entire workflow—from material feeding and die placement to the cutting process—is fully automated and seamless. This significantly boosts production efficiency while reducing operator fatigue.
3.Precision Balance System: Designed with dual hydraulic cylinders and a precision four-column self-balancing linkage, ensuring consistent cutting depth across the entire worktable.
4.Soft-Cut Protection: The cutting board automatically decelerates upon contacting the die. This soft-cut technology guarantees precise dimensional consistency between the top and bottom layers of the material.
5.Auto-Lubrication System: Equipped with a centralized automatic lubrication system to maintain machining accuracy and extend the machine's service life.
6.Enhanced Safety: Integrated safety light curtains provide maximum protection for operators during the cutting process.
Model | XYJ-3/50 | XYJ-3/80 | XYJ-3/100 | ||
Max.cutting force | 500kN(50Ton) | 800kN(80Ton) | 1000kN(100Ton) | ||
Stroke adjustment range | 0—140mm | 0—140mm | 0—140mm | ||
Range between the working tables | 50—190mm | 50—190mm | 50—190mm | ||
Size of upper cutting board | 1600*800mm | 1600*800mm | 1600*1000mm | 1600*800mm | 1600*1000mm |
Size of lower worktable | 1600*820mm | 1600*820mm | 1600*1020mm | 1600*820mm | 1600*1020mm |
Motor power | 5.5kW | 7.5kW | 11kW | ||
