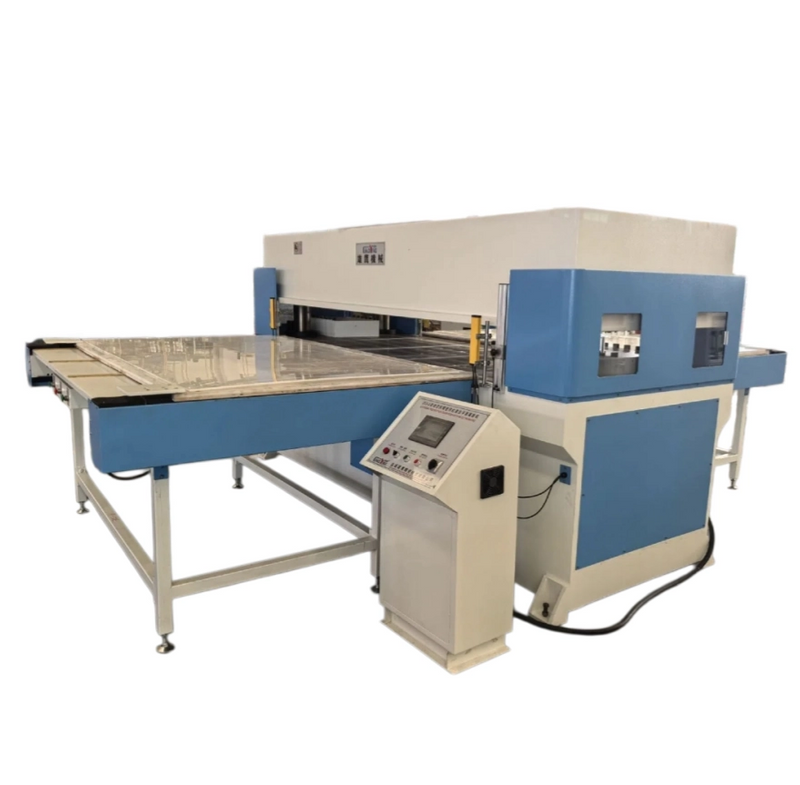

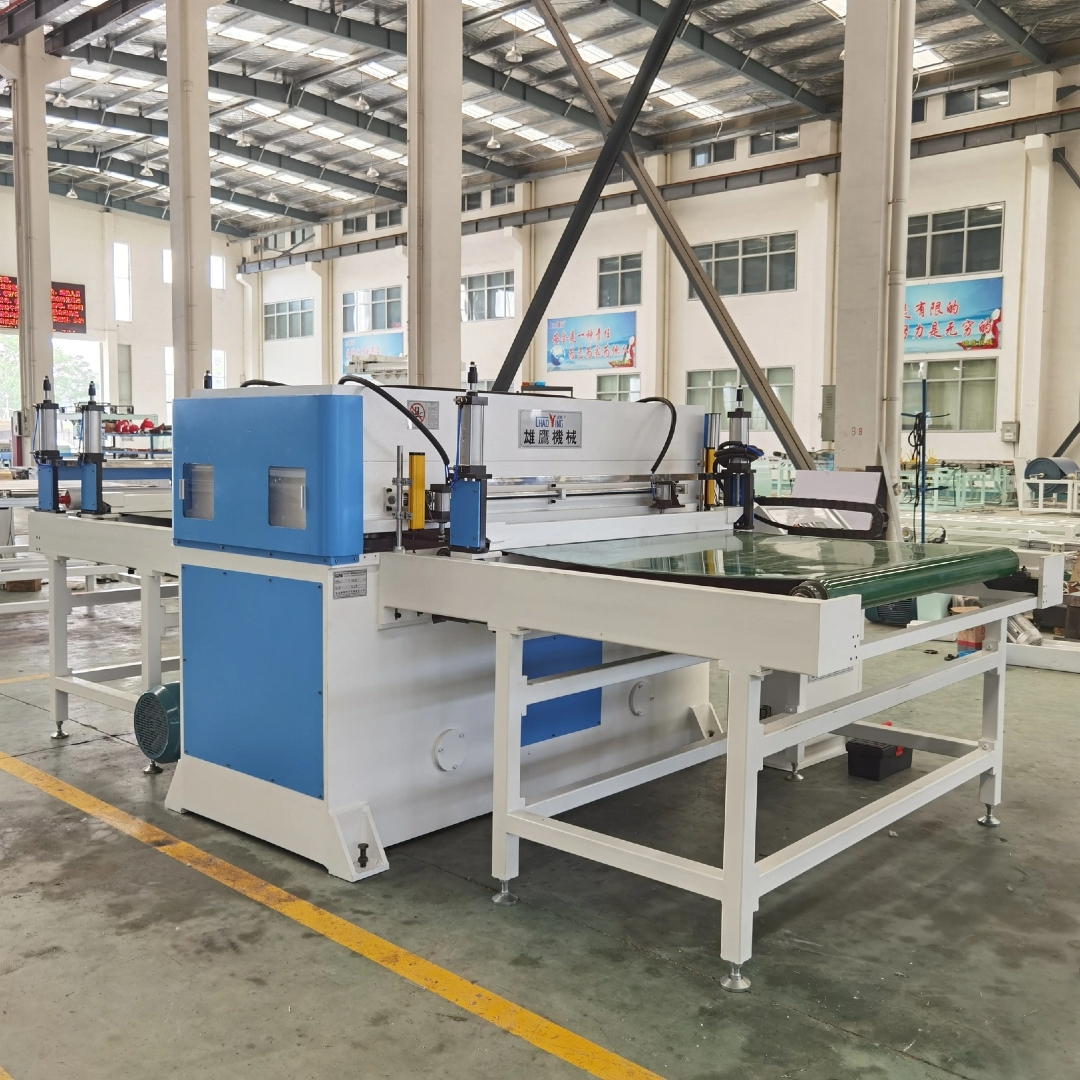

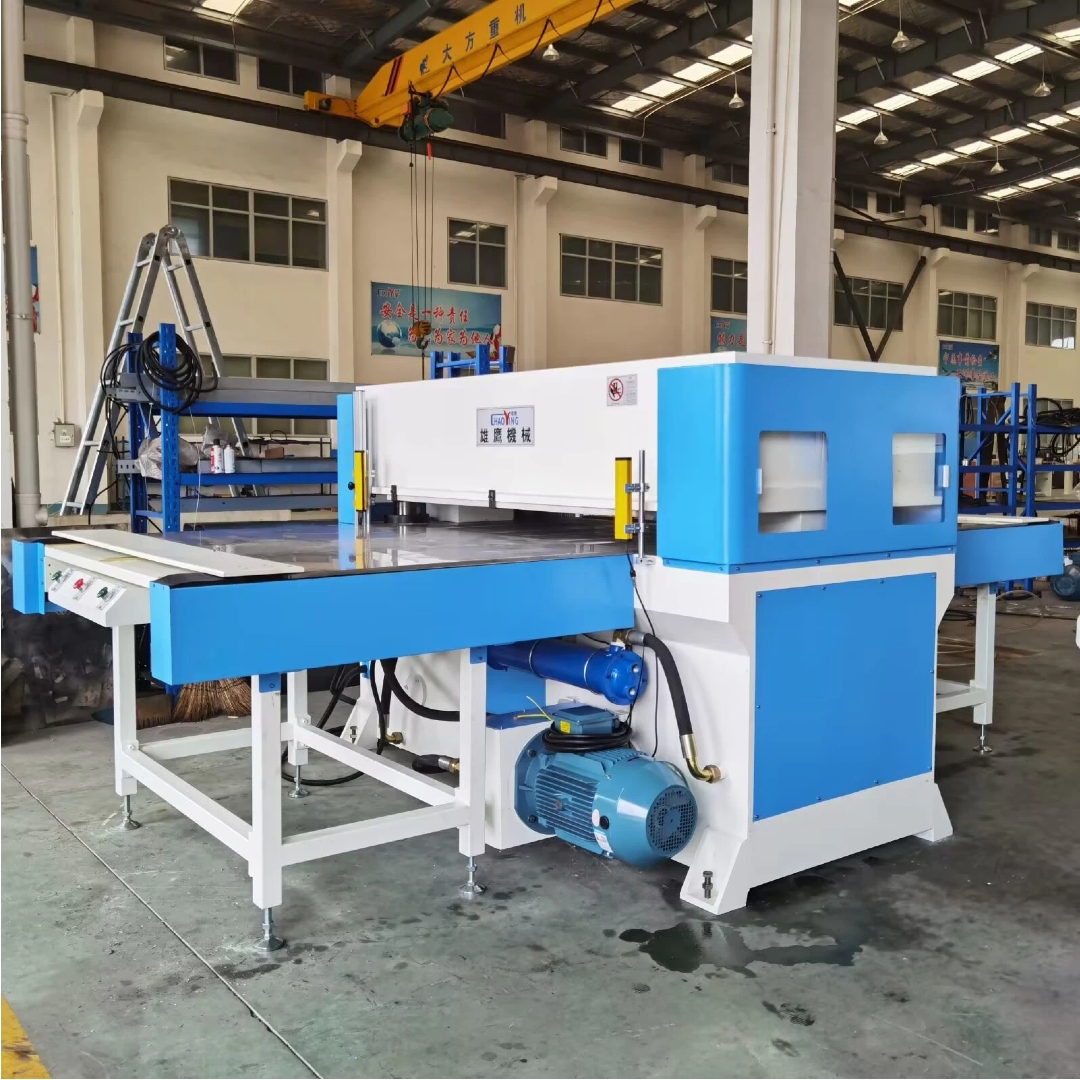

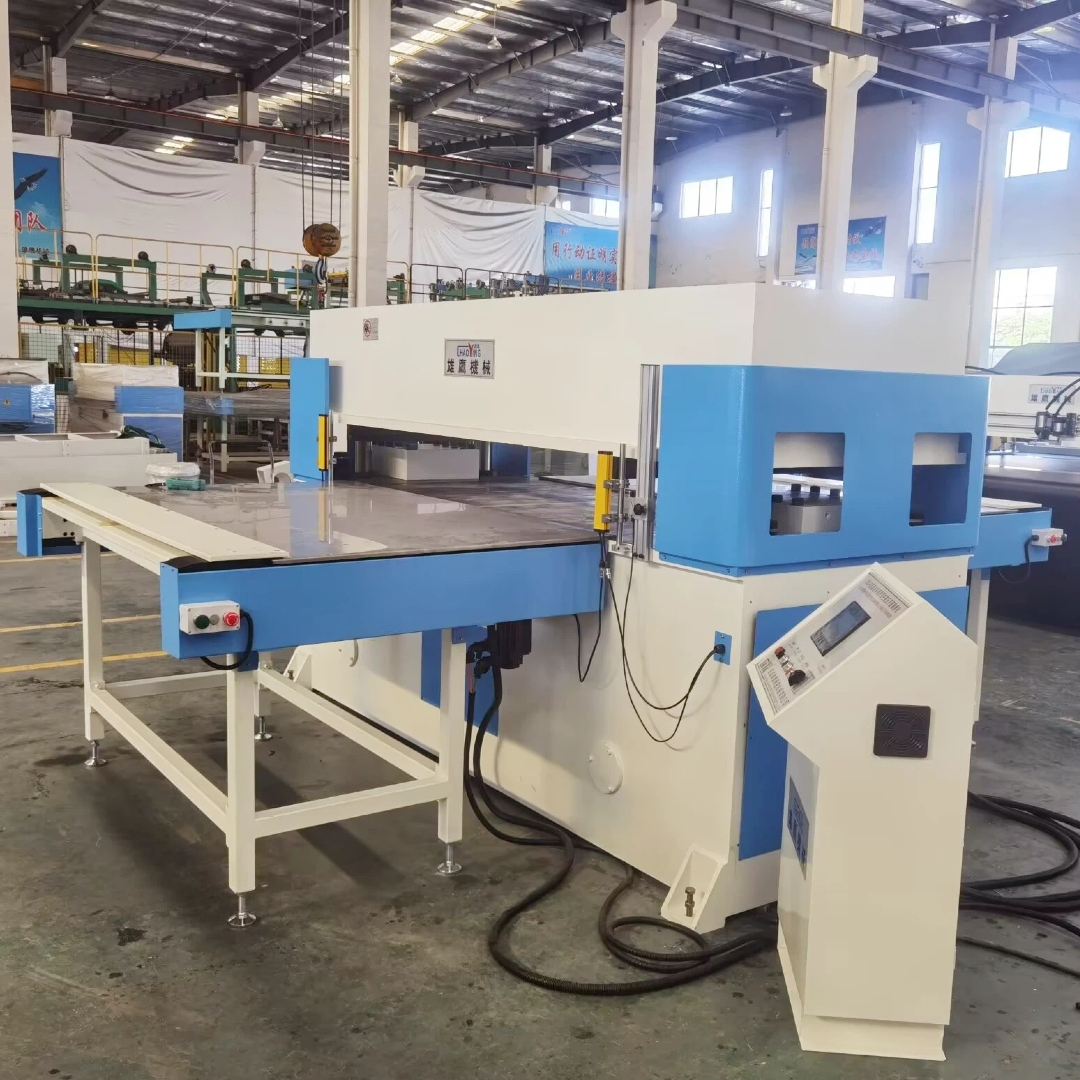

Double-Side Auto Feeding 4-Column Hydraulic Die Cutting Machine
The Professional PLC-Controlled Double-Side Auto-Feeding Cutting Machine is an advanced industrial solution designed for high-pressure and large-format material processing. Engineered to handle a vast array of materials—including fiberglass, textiles, leather, rubber, and soft wood sheets—this machine is optimized for heavy-duty production. It features a robust hydraulic system powered by double oil cylinders and a precision four-column structure to ensure structural integrity under extreme pressure. With its integrated double-side automatic feeding tables and intelligent PLC interface, this equipment provides the perfect balance of massive cutting force and streamlined workflow, making it an essential asset for high-volume manufacturing plants worldwide.
Equipped with a high-end PLC touch screen program control system, the machine offers an intuitive user interface for managing complex cutting tasks. A standout feature is the choice between automatic and manual cutting die setting modes. This flexibility allows operators to quickly switch between different production requirements, ensuring precise pressure control for various die heights. This digital intelligence reduces setup time, minimizes human error, and provides the technological foundation for consistent, high-quality industrial output.
• Double-Side Auto-Feeding for Maximum Throughput
To drastically improve operational efficiency, the machine is designed with a high-speed double-side auto-feeding table device. This allows for simultaneous material preparation and cutting on both sides of the machine, creating a continuous and uninterrupted production cycle. By doubling the feeding capacity compared to traditional single-side machines, it maximizes the output of the assembly line while significantly reducing the labor intensity required for heavy material handling in high-volume environments.
• Four-Column Auto-Balancing Structural Integrity
The equipment utilizes a precision four-column auto-balancing link structure supported by powerful double oil cylinders. This mechanical design ensures that the cutting force is distributed with absolute uniformity across the entire work surface. Regardless of the material's density or the die's position, the machine guarantees a consistent cutting depth at every point. This structural stability is critical for large-area cutting, preventing uneven edges and ensuring every finished component meets rigorous manufacturing tolerances.
• Precision Slow-Cutting Technology for Multi-Layer Accuracy
Achieving flawless multi-layer cutting is made possible through an intelligent automatic slow-cutting mechanism. When the upper cutting board descends and makes contact with the die, the system automatically decelerates the cutting stroke. This precise control ensures there is no size error or displacement between the top and bottom layers of material stacks. It is a vital technical advantage for processing thick textiles, foam sheets, or chemical fibers where dimensional consistency across all layers is paramount.
• Automated Maintenance & Enhanced Safety Systems
Reliability and operator protection are prioritized through a central oil supply automatic lubricating system and a mandatory two-hand operation mechanism. The automated lubrication ensures all moving parts remain oiled, prolonging the service life of the machine and maintaining working precision. Meanwhile, the dual-button control requires the operator to use both hands to trigger the cutting cycle, keeping them safely away from the pressure zone. These features combined provide a secure, low-maintenance, and highly reliable production environment.
Technical Parameters
Model
XYJ-3/120
XYJ-3/150
XYJ-3/200
Max.cutting force
1200kN(120Ton)
1500kN(150Ton)
2000kN(200Ton)
Stroke adjustment range
0—160mm
0—160mm
0—160mm
Range between the working tables
50—210mm
50—210mm
50—210mm
Size of upper cutting board
1600*1100mm
1600*1100mm
1600*1100mm
Size of lower worktable
1600*1120mm
1600*1120mm
1600*1120mm
Motor power
11kW
11kW
11kW
Product Uses
• Industrial and Technical Material Processing
This high-pressure equipment is exceptionally suited for cutting dense and large-scale industrial materials such as fiberglass, soft wood sheets, and heavy-duty floor and carpet materials. Its robust four-column structure handles the resistance of thick materials with ease, making it the preferred choice for the automotive interior, construction, and specialized technical textile industries where both size and strength are required.
• Mass Production of Consumer and Packaging Goods
In the consumer goods sector, the machine excels at processing leather, rubber, foam sheets, and various packing materials for footwear, bags, and electronic inserts. The double-side auto-feeding system allows for the rapid production of complex shapes in high volumes. Whether creating intricate leather components or protective foam packaging, the machine ensures clean edges and consistent dimensions for every batch of products.
