XYJ-3
Chaoying
| Quantity: | |
|---|---|
Use and Features

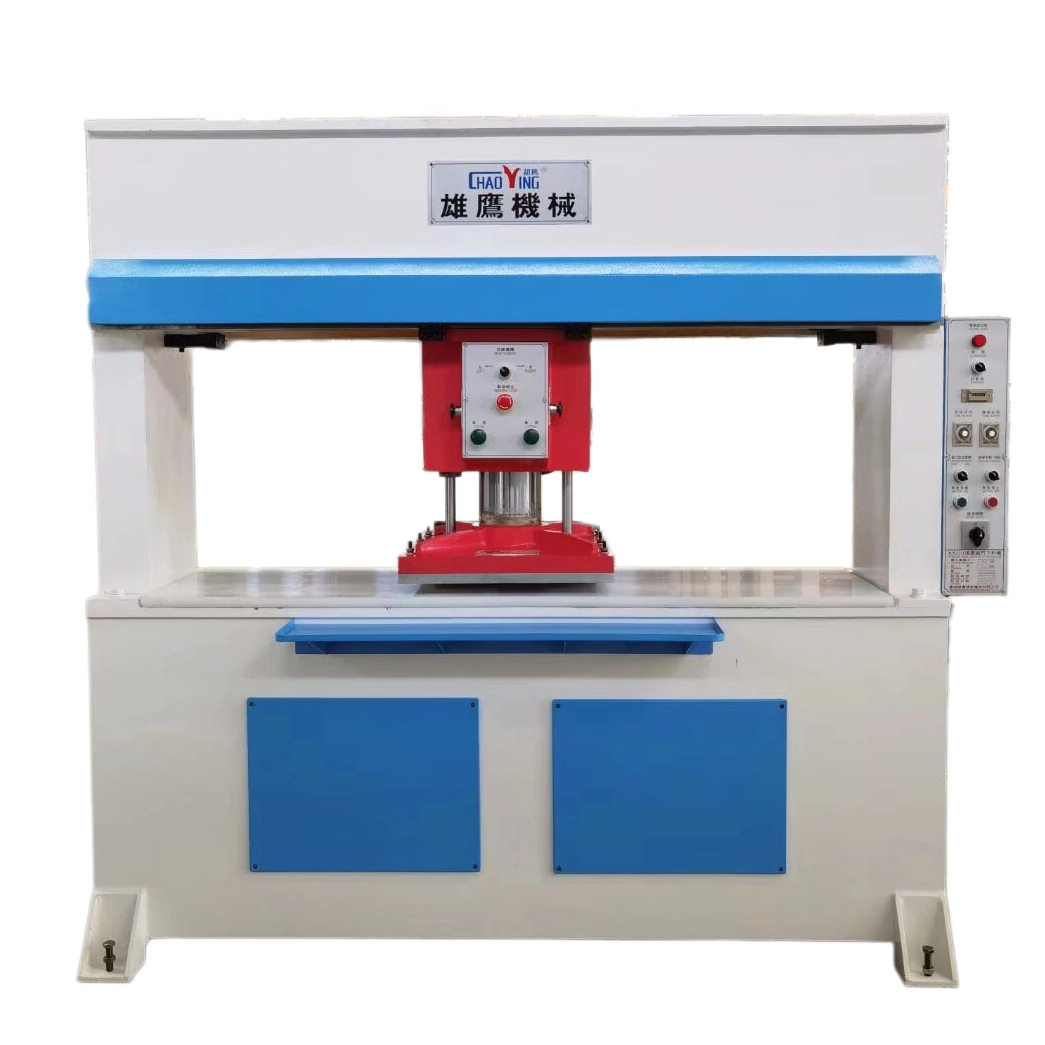

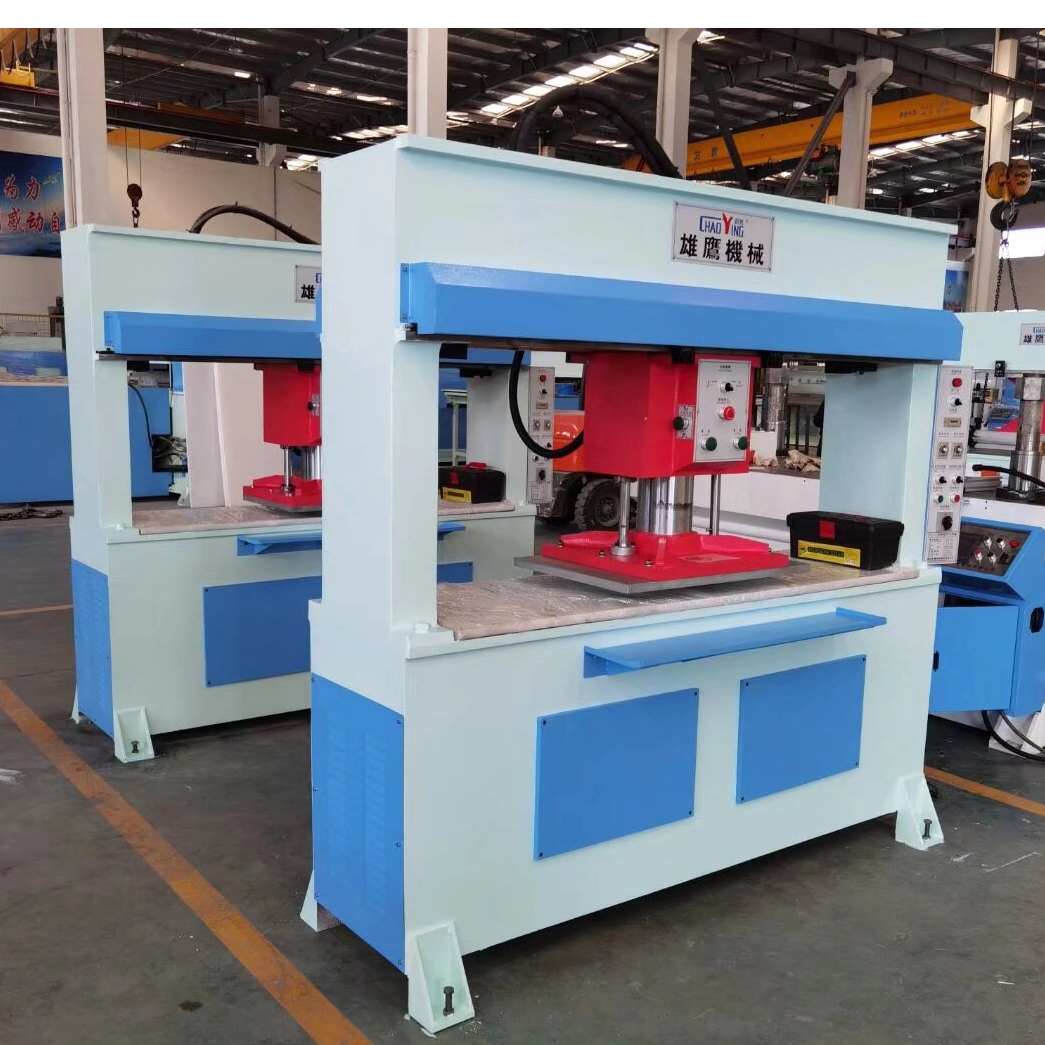

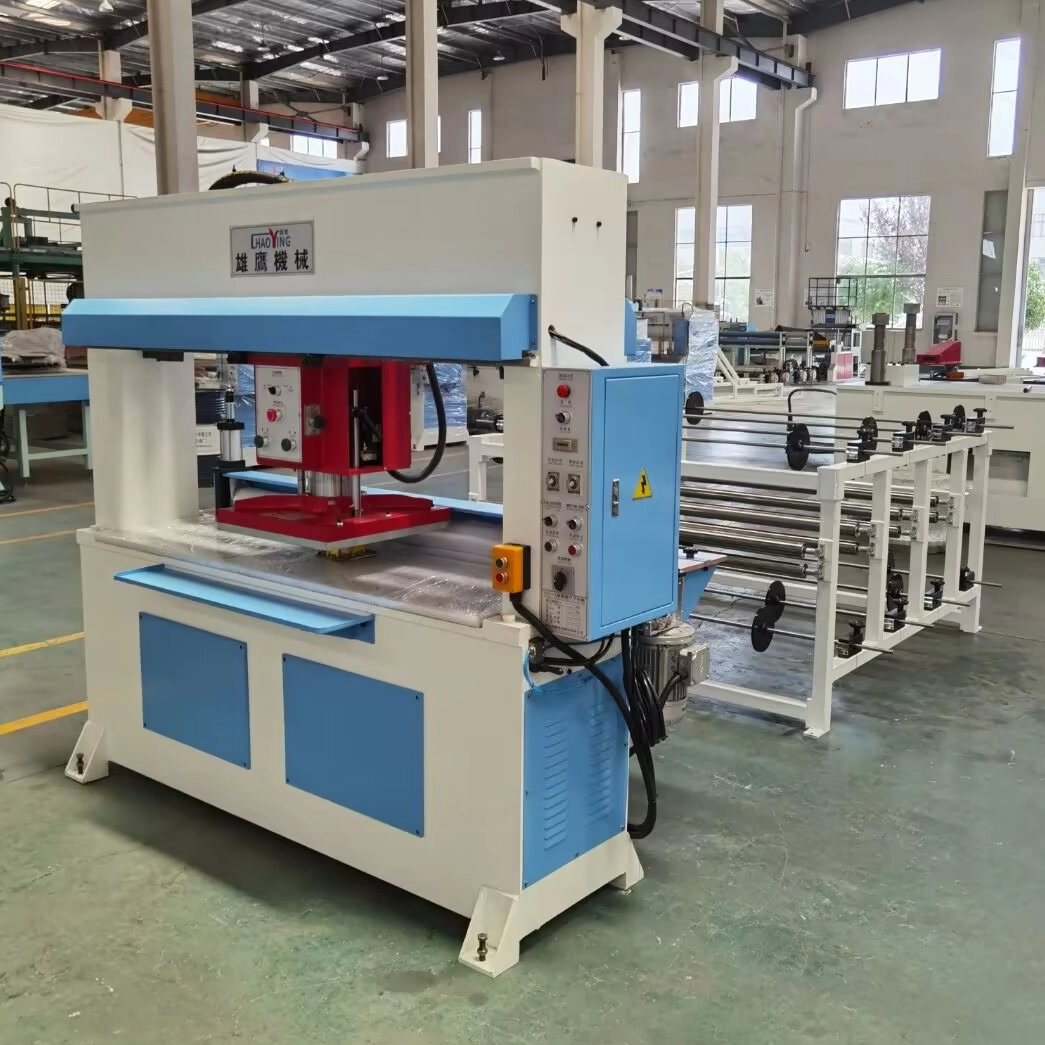

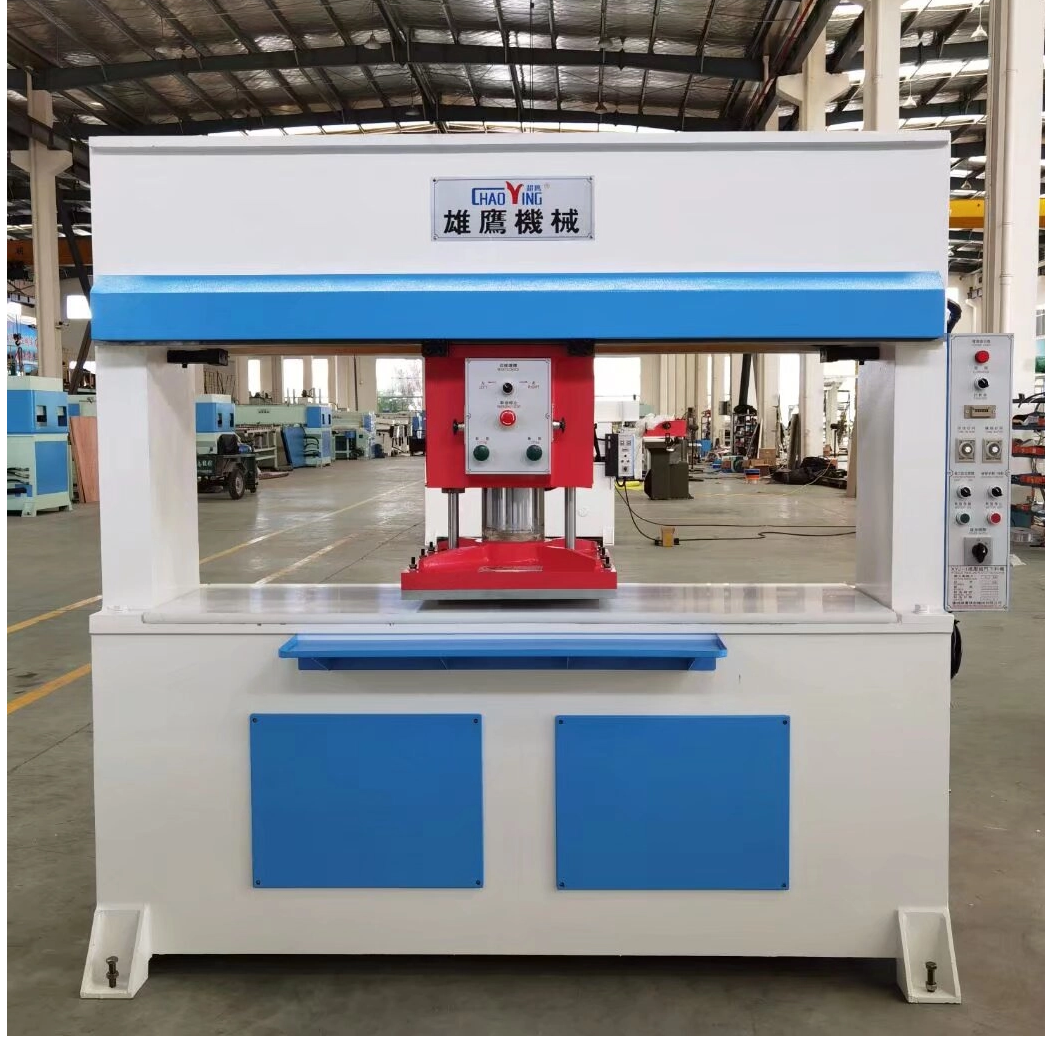

This machine is designed for precision die-cutting of single or multi-layer materials, including leather, rubber, plastics, paperboard, textiles, chemical fibers, and nonwovens.
Wide Visual Field: The transversely moving cutting head travels left and right, providing an expansive and clear operating view.
Automated Efficiency: In automatic mode, the head retracts horizontally after each cut, significantly reducing manual effort and saving cycle time.
Enhanced Safety: The dual-hand operation system ensures maximum safety for the operator during the cutting process.
Optional Upgrades: To further boost productivity, an optional rubber roll auto-feeding system can be integrated based on specific production requirements.
Technical Parameters
Max.cutting force | 250kN(25tons) | 350kN(35tons) |
Stroke adjustment range | 0-120mm | |
Range between the working tables | 30-150mm | |
Size of upper cutting board | 500X500mm | |
Size of lower worktable | 1600X500mm | |
Motor power | 2.2kW | |

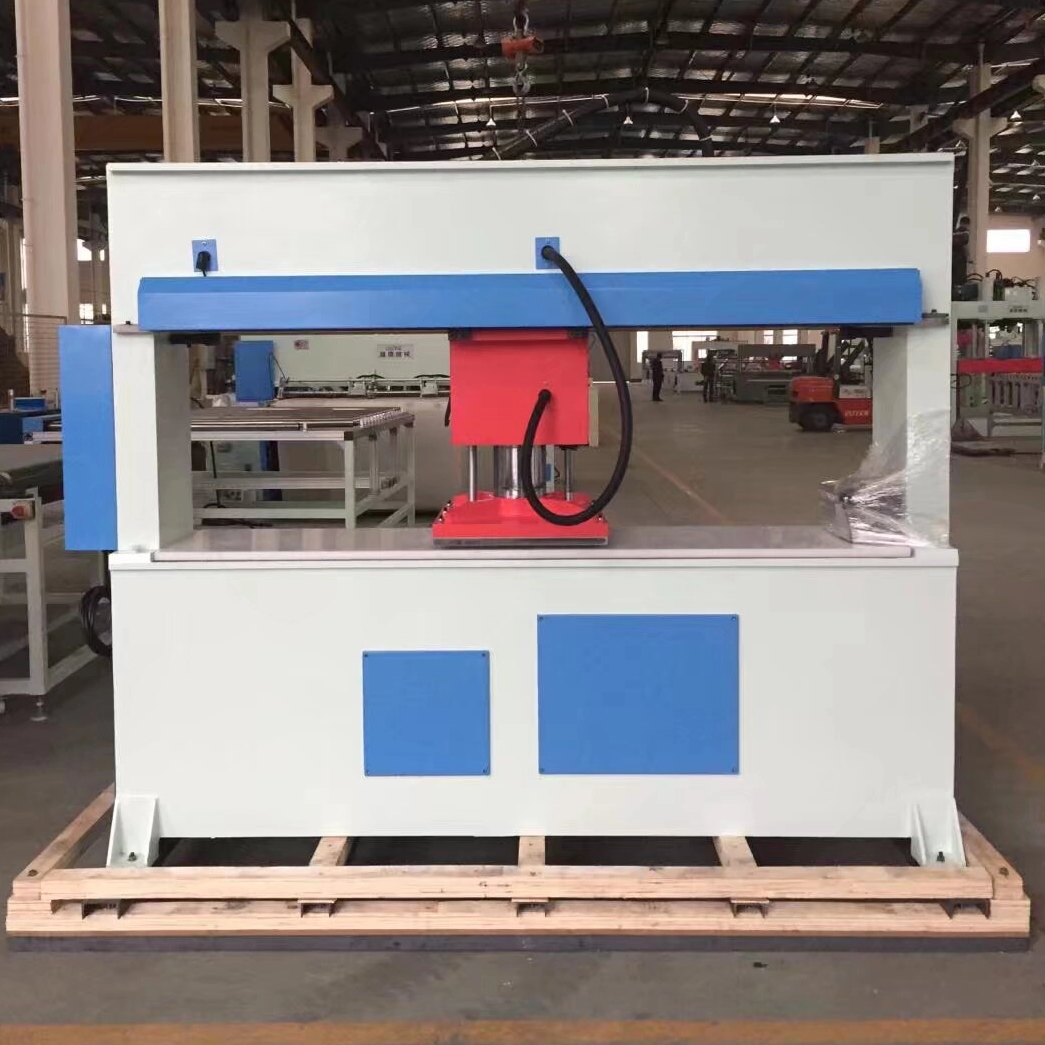

Packaging
