XYJ-3
Chaoying
| Quantity: | |
|---|---|

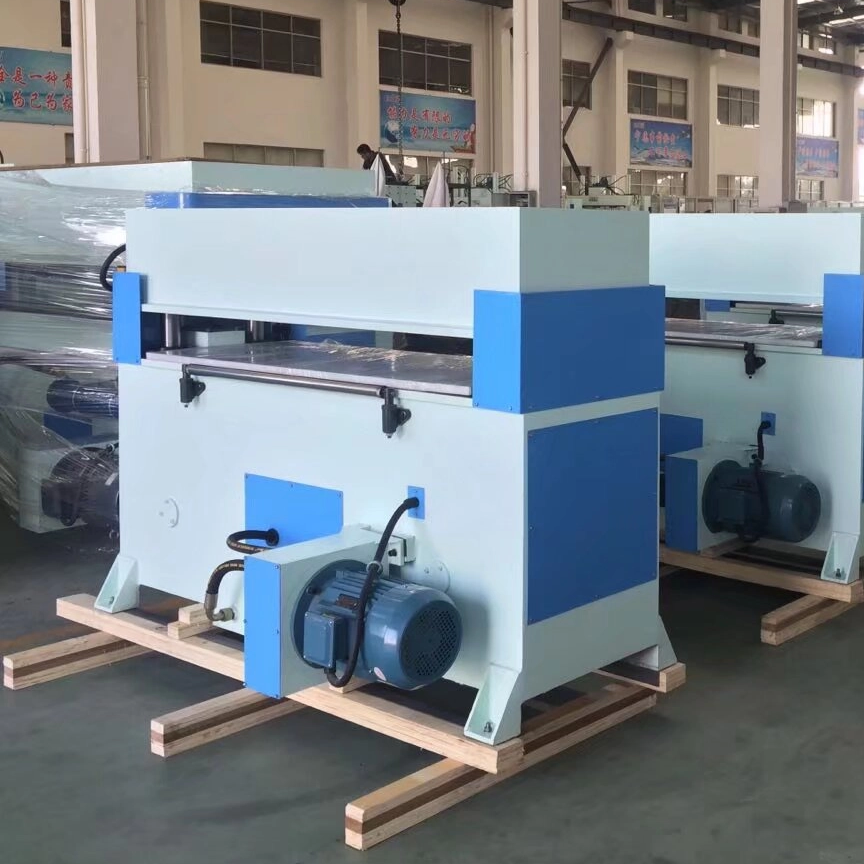

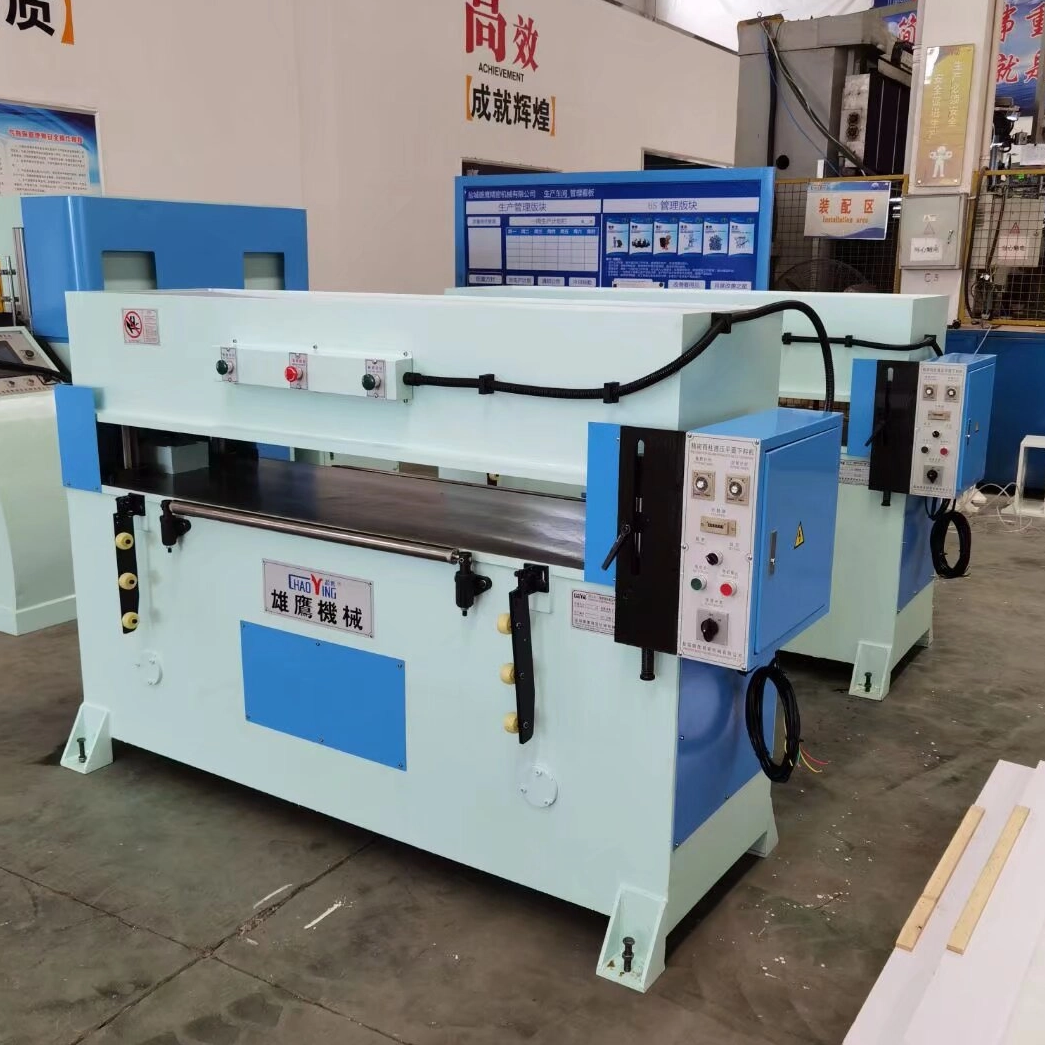

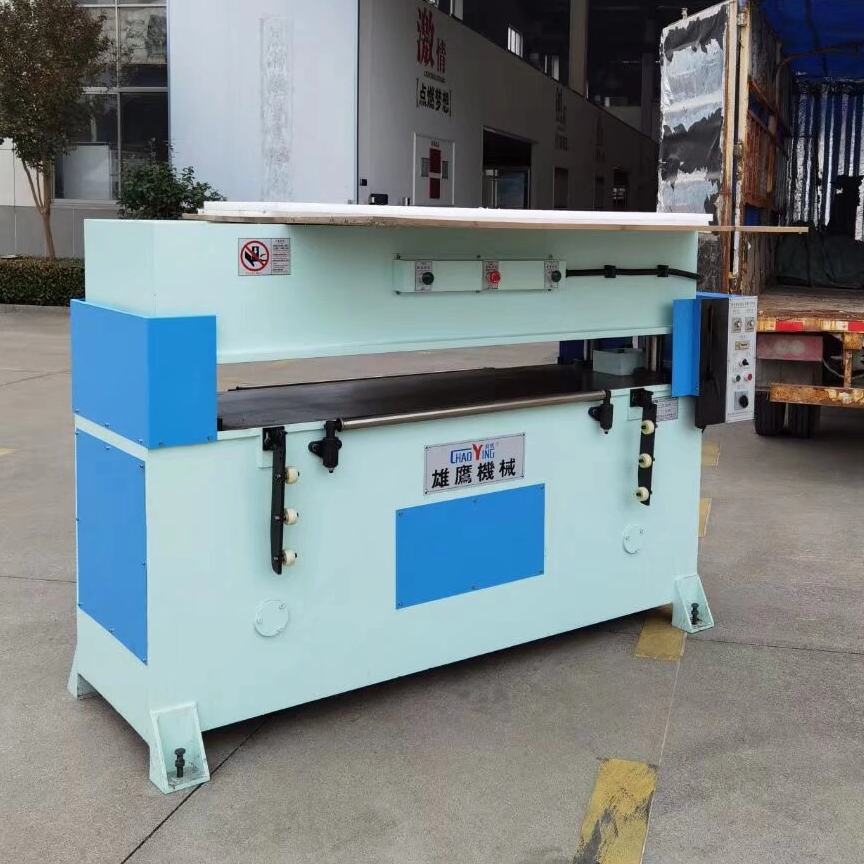

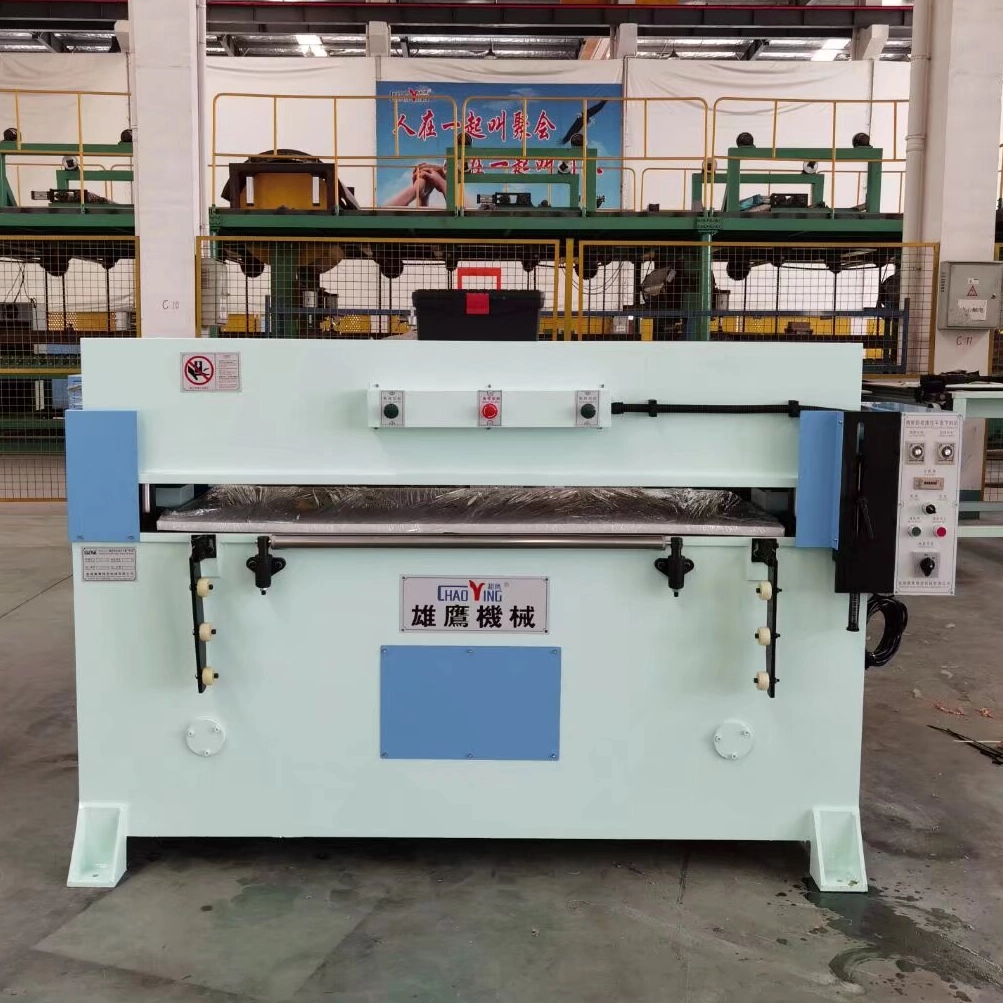

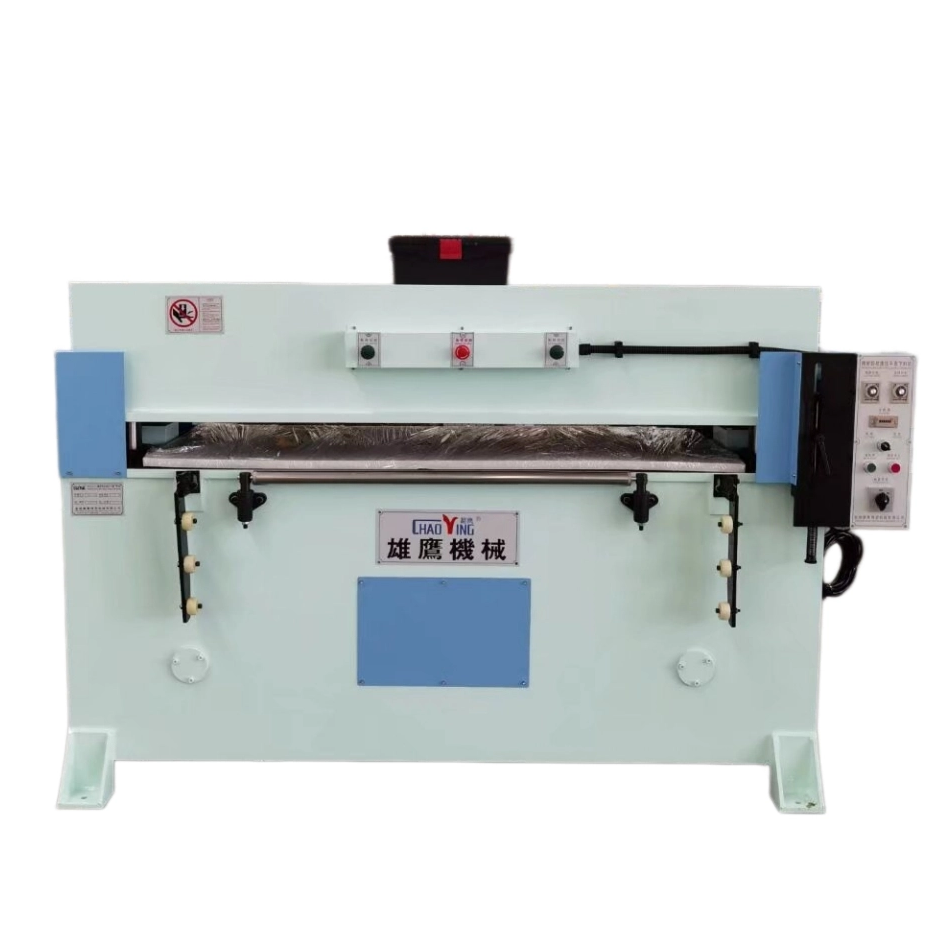

This machine uses a four-column guide structure and hydraulic pressing system to cut shaped parts with shaped dies. The four-column design keeps pressure balanced across the cutting area, so each stroke produces uniform results. It is suitable for medium to high-volume production of gaskets and sealing components.
Materials
Rubber: NBR, EPDM, Silicone, Neoprene, FKM, SBR, Butyl, Natural Rubber, Sponge Rubber
Foam: EVA, PU, PVC, PE, EPDM, Neoprene foam
Plastic Sheets: PTFE, PVC, PE, PP, PC, PET, Acrylic, Nylon, UHMW
Fiber & Composites: Non-asbestos gasket sheet, Aramid fiber, Graphite sheet, CNAF, Felt, Cork, Cork-rubber
Others: Adhesive-backed materials, insulation board, paperboard, fabric, nonwoven
Finished Products
Flange, pump, valve, compressor and engine gaskets
Rubber seals, O-ring blanks and flat seals
Foam gaskets and cushioning pads
EMI shielding gaskets and adhesive-backed seals
Insulation pads, spacers and washers
Soundproofing and vibration-damping parts
Automotive, appliance, electronics and machinery sealing parts
How It Works
The material is placed on the cutting table, and the shaped die presses down under hydraulic pressure to cut the required shape in one stroke. The four-column guide helps maintain stable alignment and even pressure, reducing uneven cuts and improving part consistency.
Key Advantages
Balanced cutting pressure across the full work area
Clean edges and consistent part quality
Suitable for soft, elastic and layered materials
Easy operation with shaped dies for batch production
Stable performance for medium to high-volume orders
Industries
Sealing, automotive, electronics, packaging, machinery, appliances and industrial component manufacturing.
Model | XYJ-3/30 | XYJ-3/35 | XYJ-3/40 | |
Max.cutting force | 300kN(30Ton) | 350kN(35Ton) | 400kN(40Ton) | |
Stroke adjustment range | 0—100mm | 0—100mm | 0—110mm | |
Range between the working tables | 60—160mm | 60—160mm | 60—170mm | |
Size of upper cutting board | 1600*500mm | 1600*600mm | 1600*600mm | 1600*730mm |
Size of lower worktable | 1600*510mm | 1600*610mm | 1600*610mm | 1600*740mm |
Motor power | 2.2kW | 3kW | 3kW | |
Packaging
