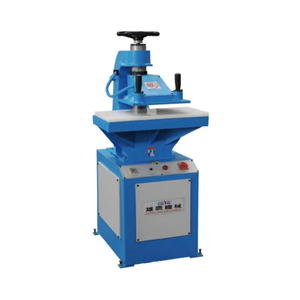

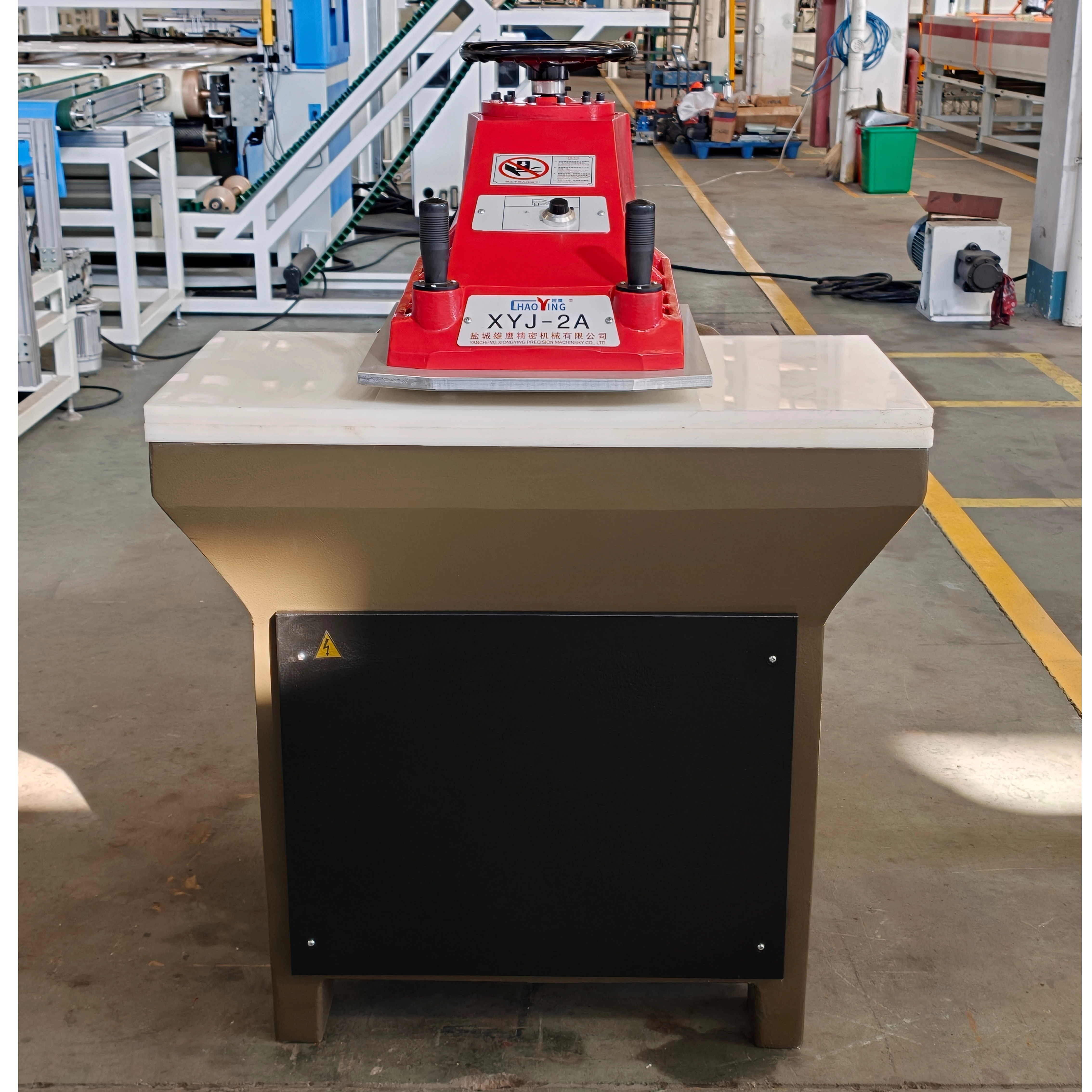

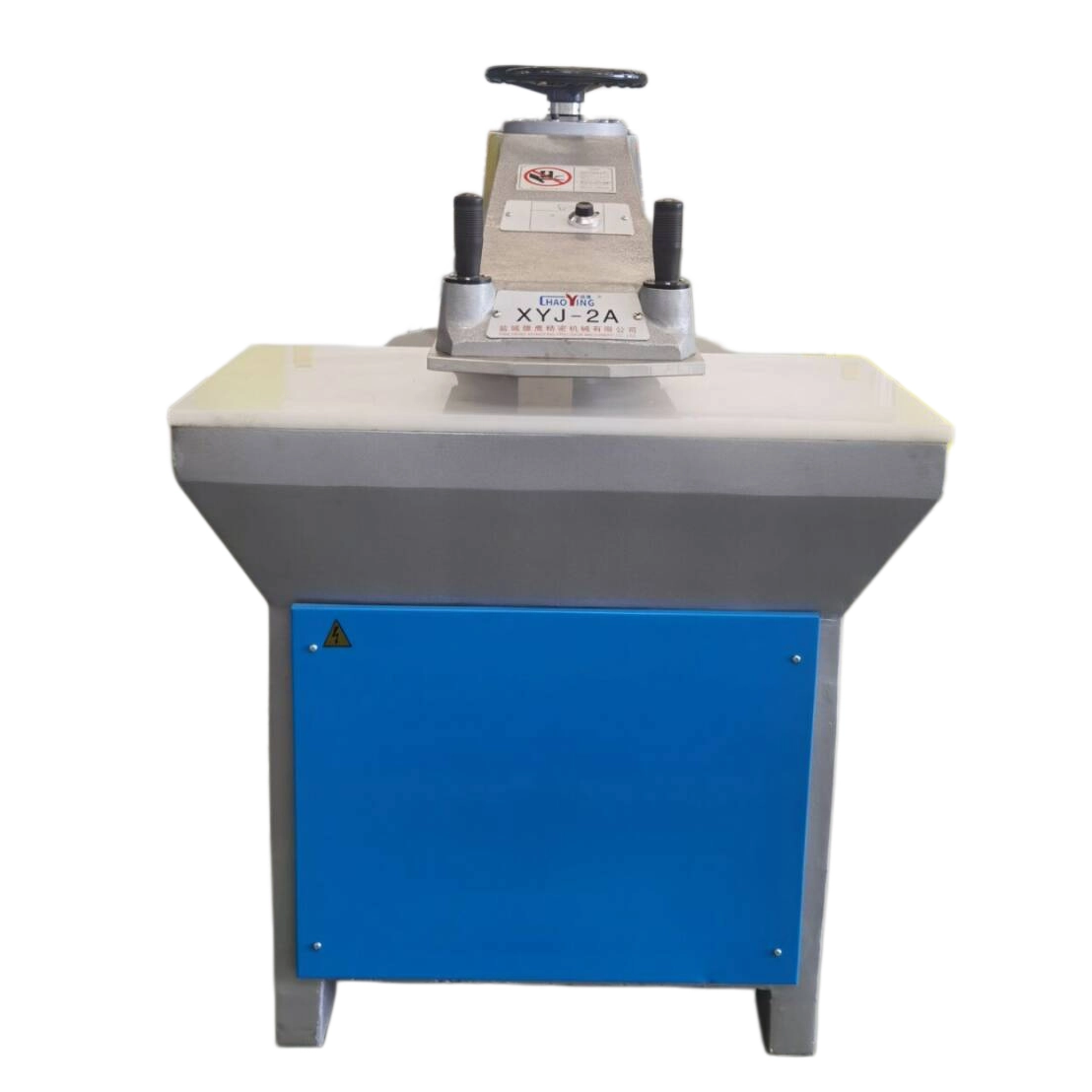

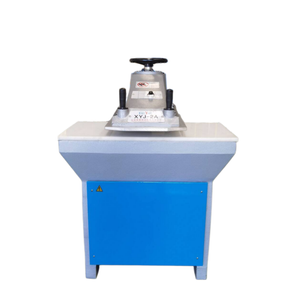

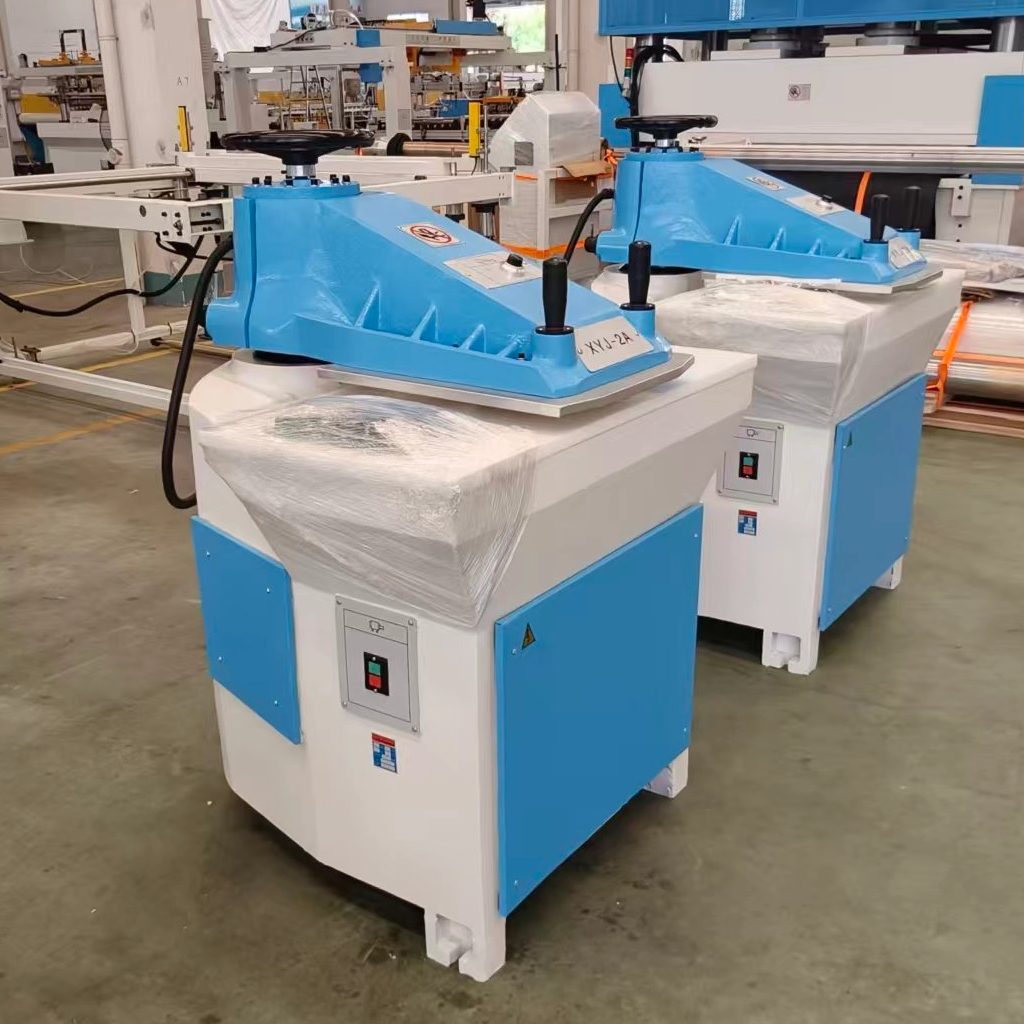

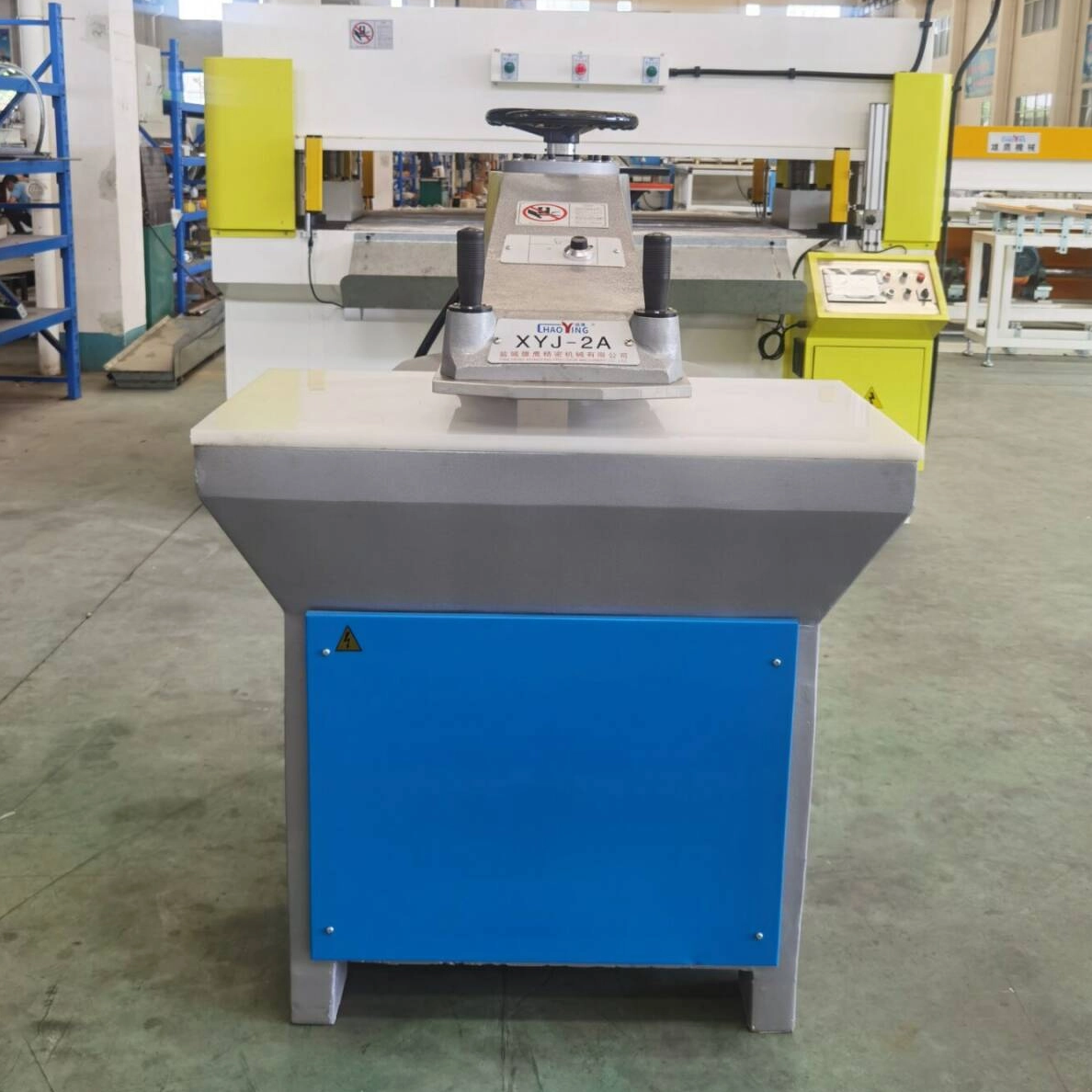

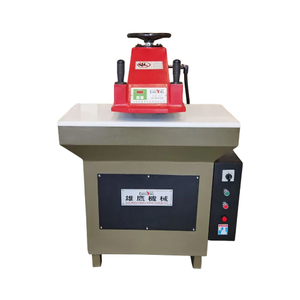

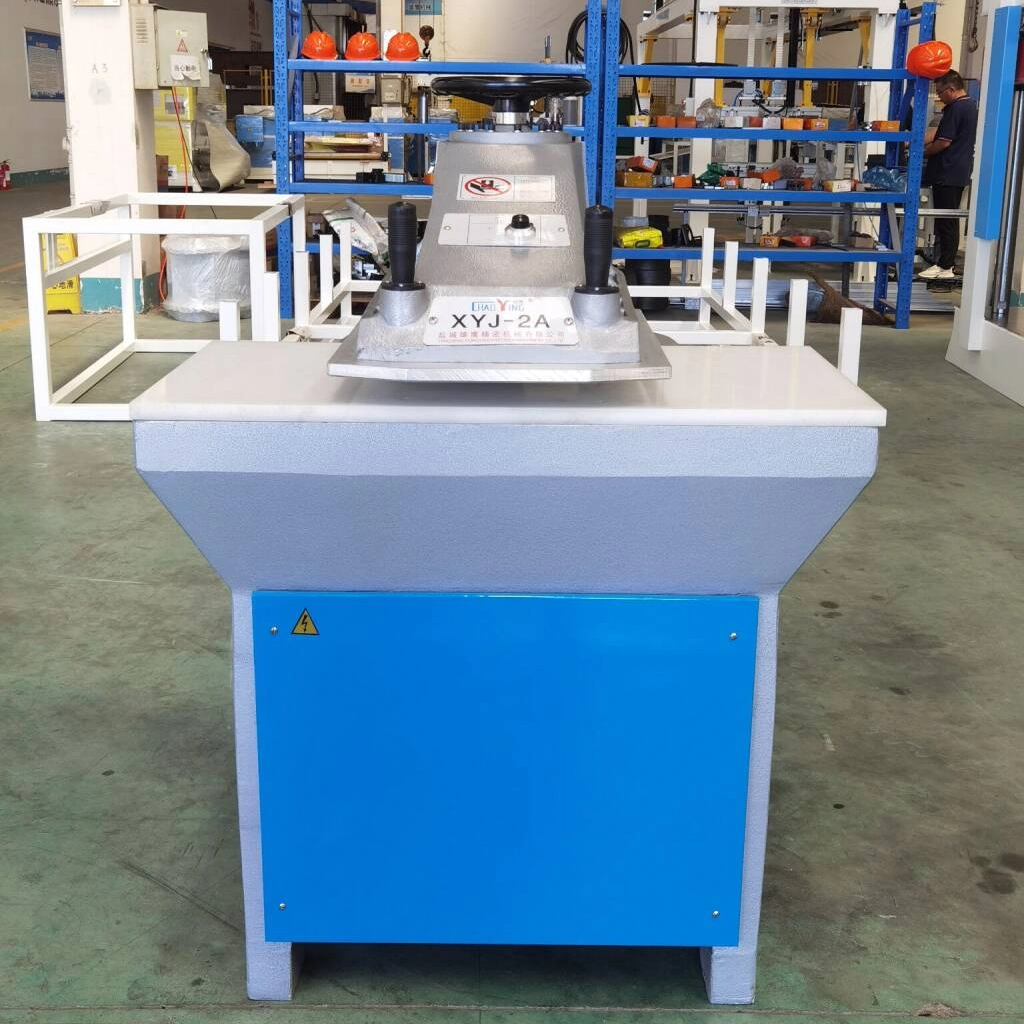

25Ton Hydraulic Swing Arm Clicker Press Shoe Die Cutting Machine

Color: Red, Blue, or customize
Size of swing arm: Standard or customize

Size of lower worktable: Standard or customize

Sales Models: Resale or Wholesale）
Min Order: 1pc

Model:
XYJ-2A/25
Brand:
Chaoying

Quantity:
Availability:





Inquire Add to Basket

Product Description

Use and Features

It is suitable for cutting all kinds of materials such as leather, plastic, cloth,wallet, toy, cap, foam sheet, floor & carpet material, soft wood sheet and etc. by the cutting die.

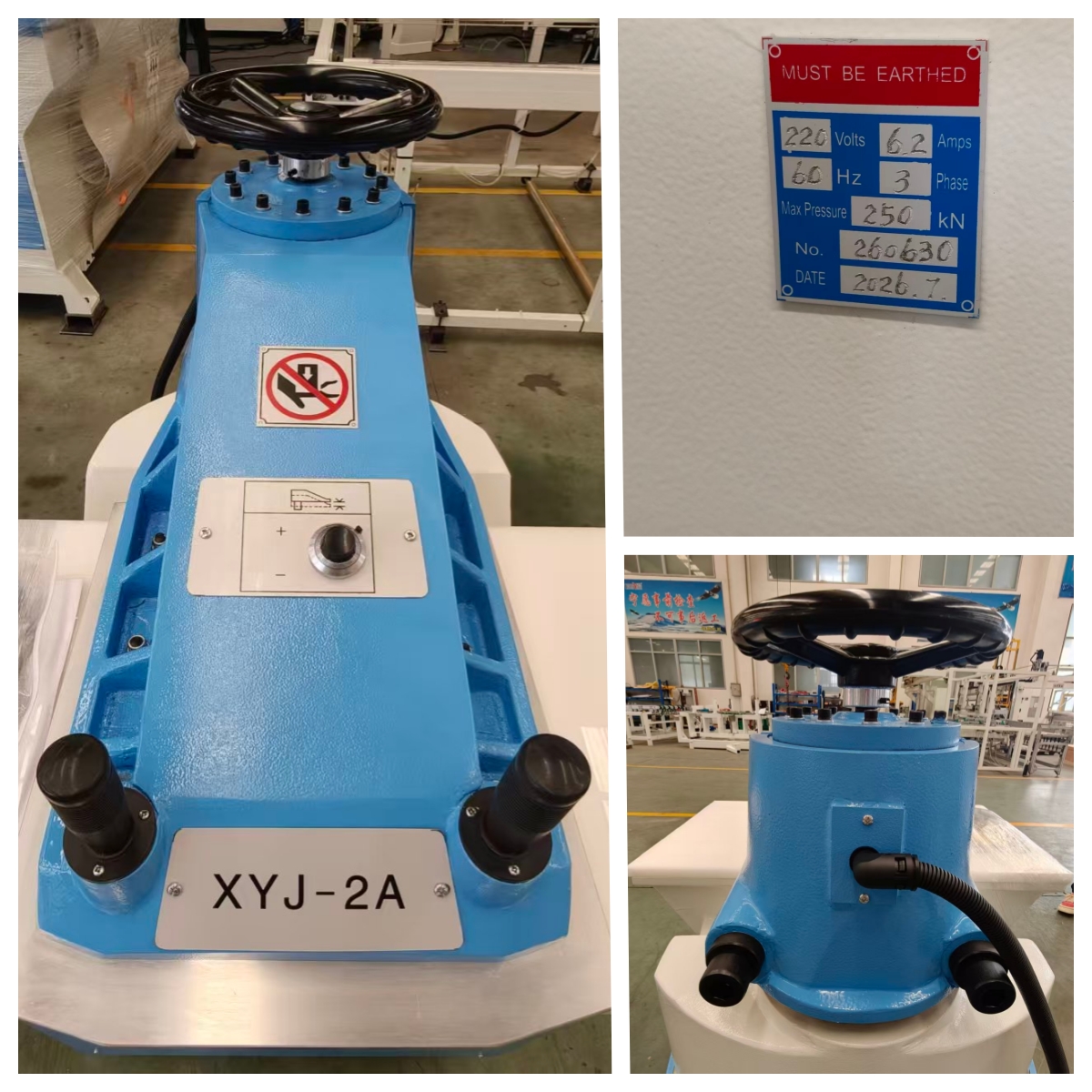

1. Swing arm can swing flexibly with excellent operating visual field, so it is especially suitable for cutting the genuine leather materials.

2. The column is provided with self-lubricating system, which can prolong the service life of machine.

3. The hydraulic system is operating in a closed environment, so the machine can work under the general working conditions.

4. Operating with both hands, ensures high safety of operators.

Technical Parameters

Model	XYJ-2A/25
Max.cutting force	250kN(25Ton)
Stroke adjustment range	0—75mm
Range between the working tables	65—150mm
Size of swing arm	450X500mm
Size of lower worktable	1000X500mm
Motor power	1.5kW
