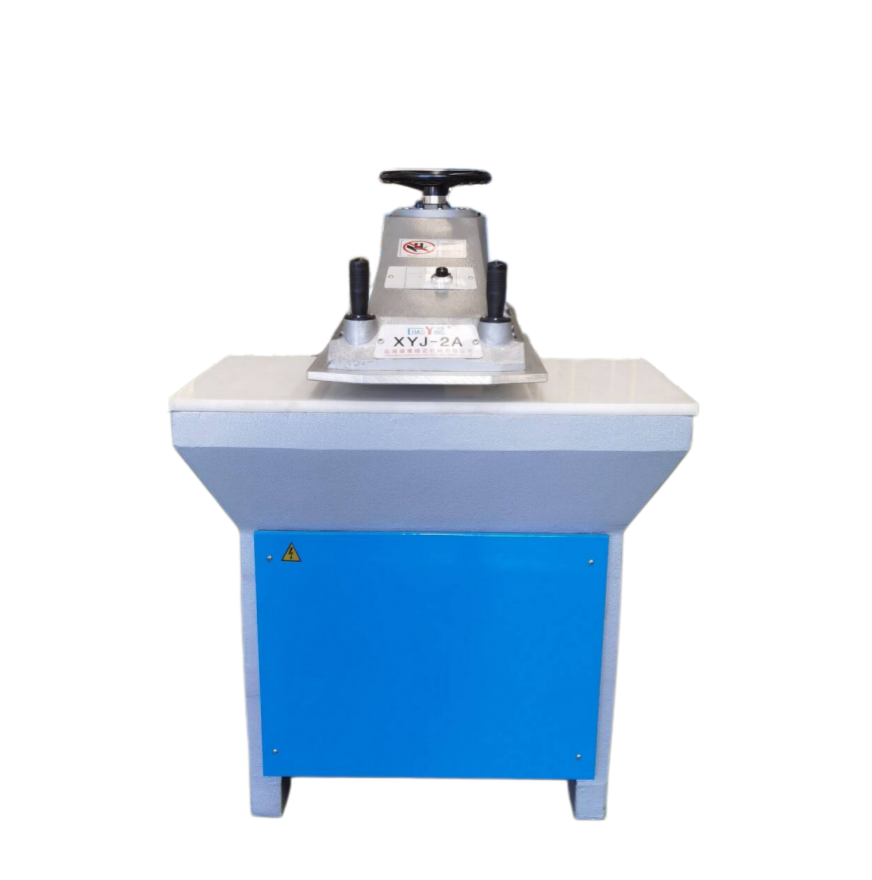

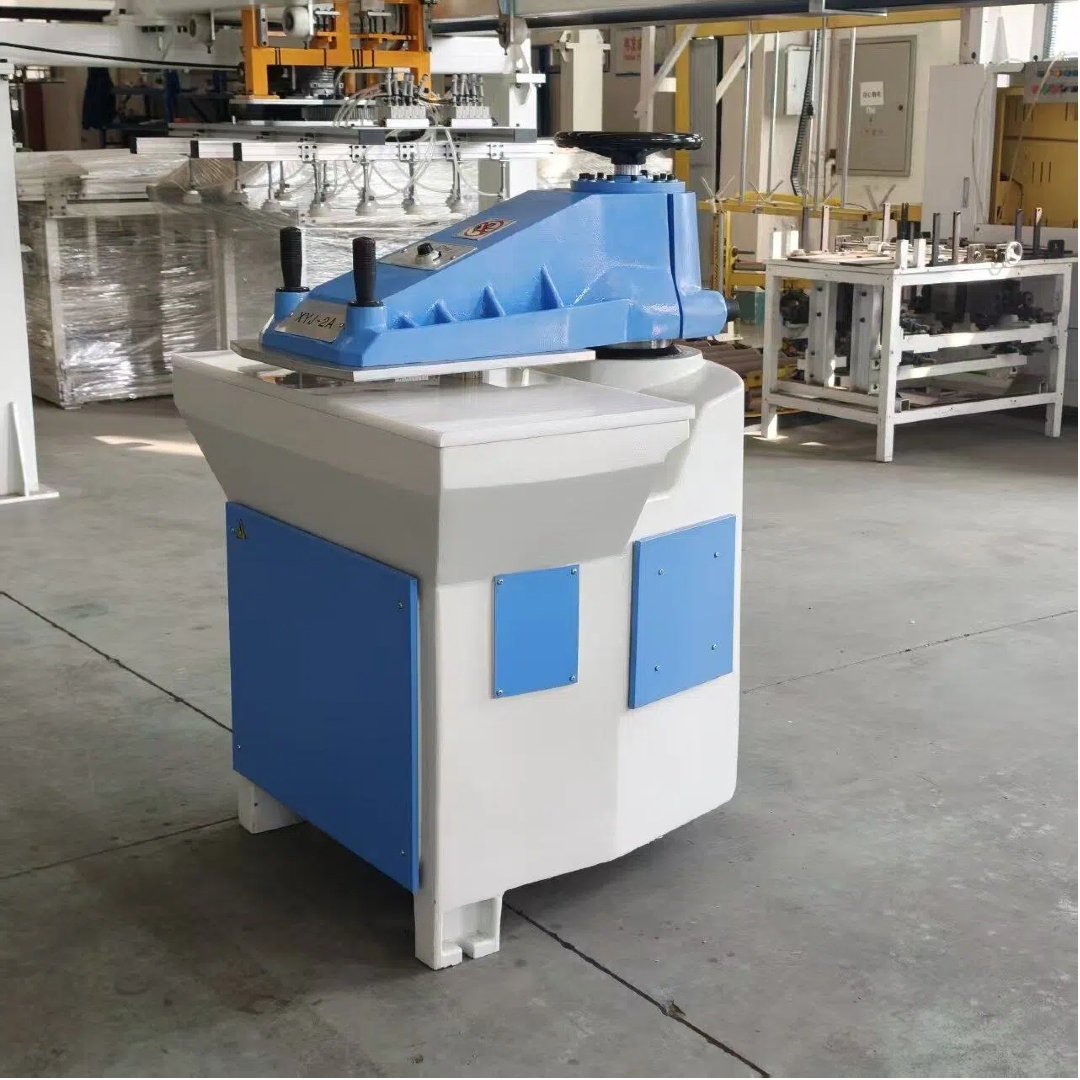

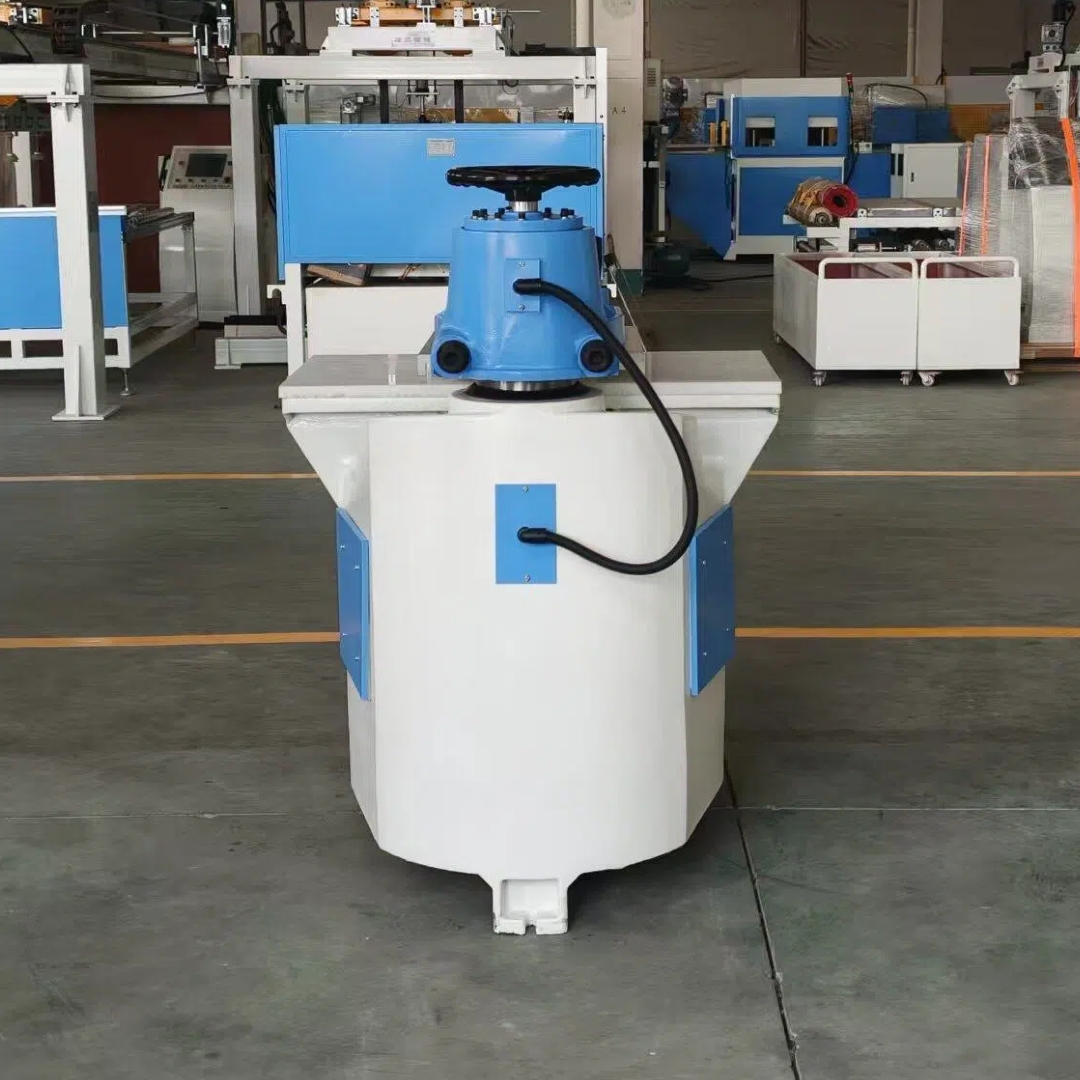

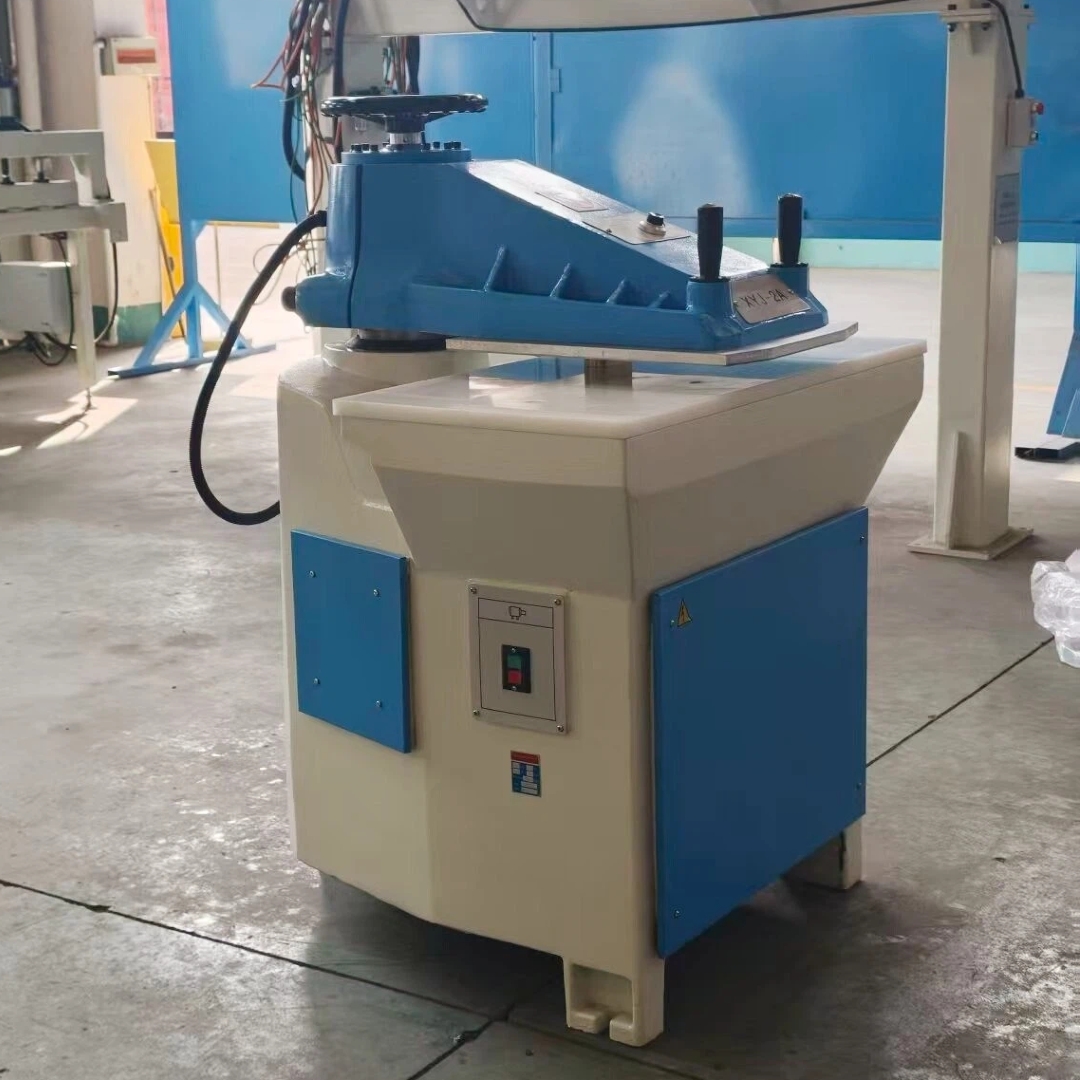

The Hydraulic Swing Arm Cutting Machine, commonly known as a clicker press, is a premier industrial solution designed for high-precision material processing. Engineered to handle a vast array of non-metallic materials, this machine utilizes high-force cutting dies to deliver clean and accurate results across various thicknesses. From delicate fabrics and genuine leather to robust floor materials and foam sheets, its versatile design caters to multiple manufacturing sectors. With its signature flexible swing arm and robust hydraulic power, it offers an optimal balance of strength, precision, and ease of use, making it an indispensable asset for factories seeking high-efficiency production across diverse product lines.
The machine's swing arm is designed for maximum flexibility, allowing it to rotate effortlessly across the working area. A key technical advantage is the "excellent operating visual field" it provides, which is critical when processing high-value materials. This unobstructed view makes it especially suitable for cutting genuine leather, where precise placement is required to avoid natural flaws and maximize material utilization, thereby reducing waste and increasing profitability for the manufacturer.
• Advanced Self-Lubricating Column System
Equipped with a sophisticated self-lubricating system integrated directly into the central column, the machine ensures continuous, smooth mechanical movement. This automated lubrication reduces friction between moving parts and prevents premature wear. By maintaining optimal operating conditions without constant manual intervention, this system significantly prolongs the service life of the machine and minimizes downtime for maintenance, ensuring a higher return on investment over years of intensive industrial use.
• Closed Environment Hydraulic System
The hydraulic system operates within a fully closed environment, protecting the core power unit from dust, debris, and external contaminants. This design ensures that the machine can perform reliably under general working conditions without the risk of hydraulic failure or oil contamination. The closed-loop system maintains consistent pressure output and operational stability, providing the heavy-duty force needed for thick materials while protecting the internal components from the typical harsh environment of a factory floor.
• Mandatory Two-Hand Safety Operation
Prioritizing worker protection, the machine is built with a mandatory two-hand safety control mechanism. Operators must engage both control buttons simultaneously to trigger the cutting cycle, ensuring their hands are safely away from the pressure zone during operation. This high-safety standard meets rigorous industrial regulations and provides a secure working environment. By eliminating the risk of accidental injury, factories can maintain consistent production speeds while fostering a culture of safety and peace of mind for their workforce.
Technical Parameters
Model
XYJ-2A/20
XYJ-2A/25
Max.cutting force
200kN(20Ton)
250kN(25Ton)
Stroke adjustment range
0—75mm
0—75mm
Range between the working tables
65—150mm
65—150mm
Size of swing arm
350*500mm
450*500mm
Size of lower worktable
1000*500mm
1000*500mm
Motor power
1.5kW
1.5kW
Product Uses
• Premium Leather and Fashion Manufacturing
This equipment is specifically optimized for the fashion and leather goods industry. It is the preferred choice for cutting intricate components for wallets, caps, and designer bags, especially when working with high-end genuine leather. The machine’s precision and clear visibility allow artisans to align dies perfectly with the material grain, ensuring that every cut meets the luxury standards required for top-tier fashion accessories and apparel.
• Versatile Industrial and Home Material Processing
Beyond fashion, the machine excels in processing a wide variety of industrial and household materials. It is highly effective for cutting foam sheets for packaging, carpet and floor materials for interior design, and even soft wood sheets for specialized crafts or toy components. Its ability to handle materials of varying densities—from soft cloth to rigid floor tiles—makes it a multi-purpose workhorse for toy factories, packaging plants, and interior decor manufacturers.
