What This Machine Is

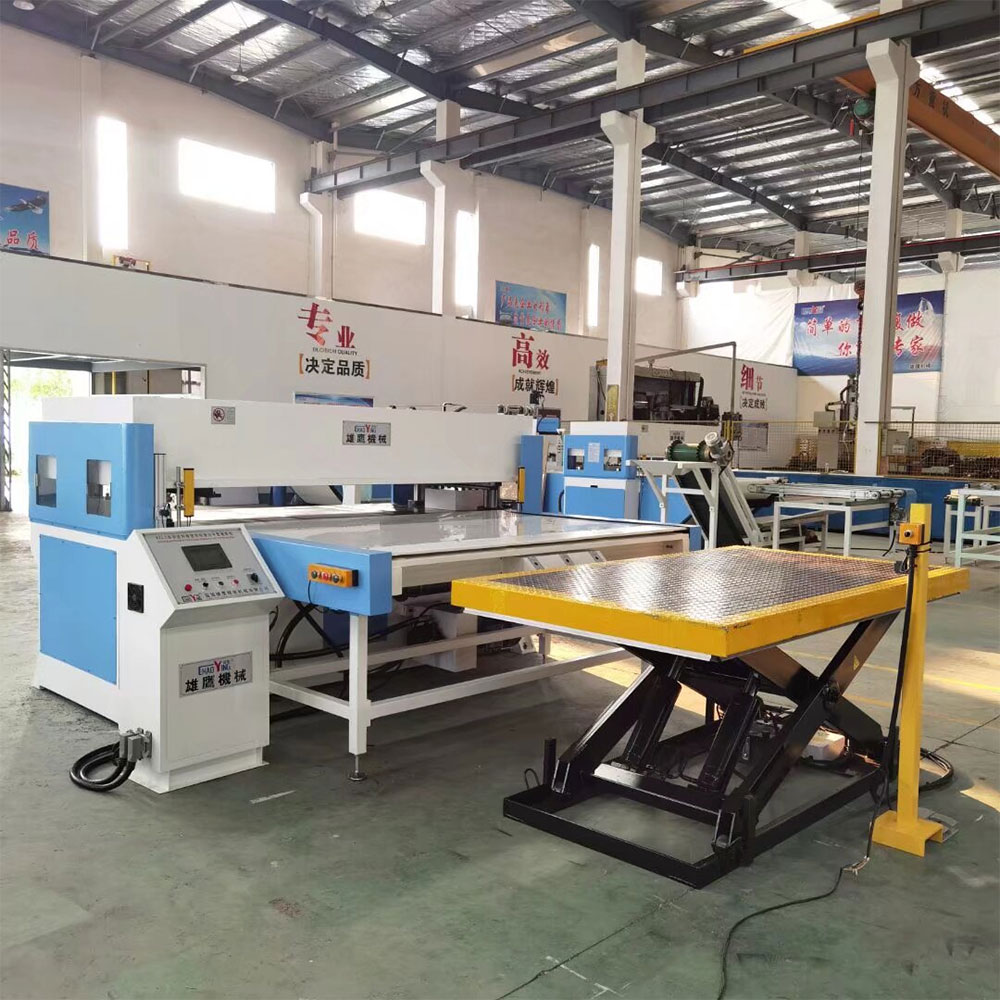

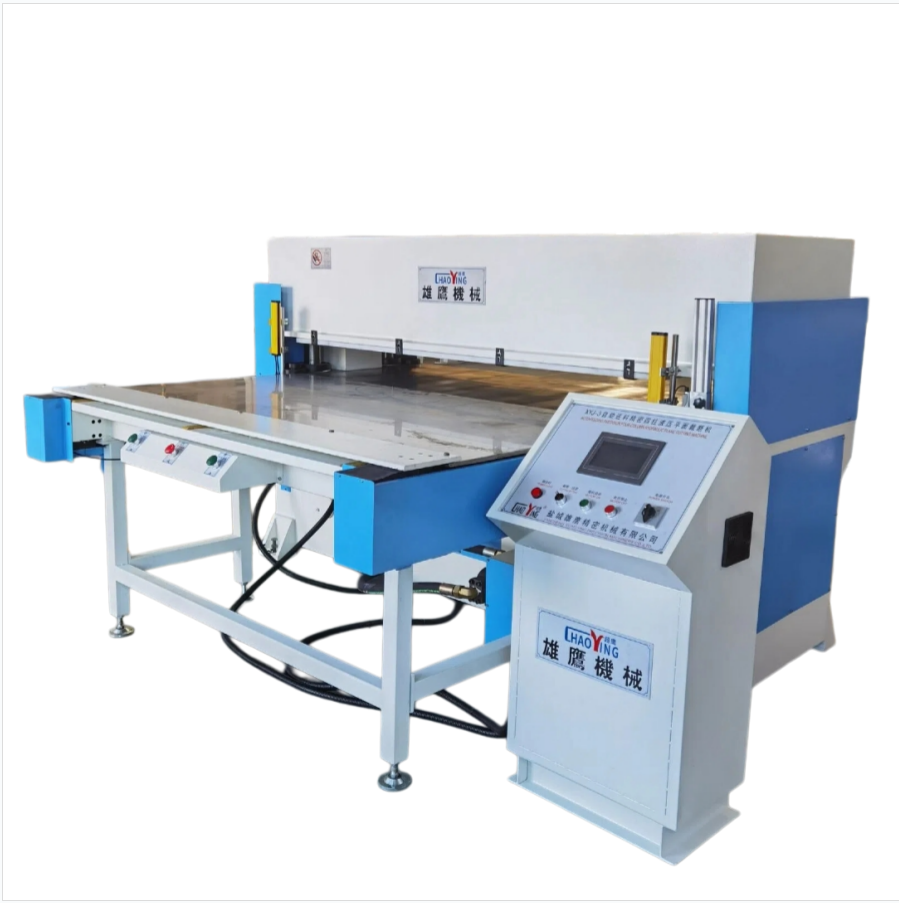

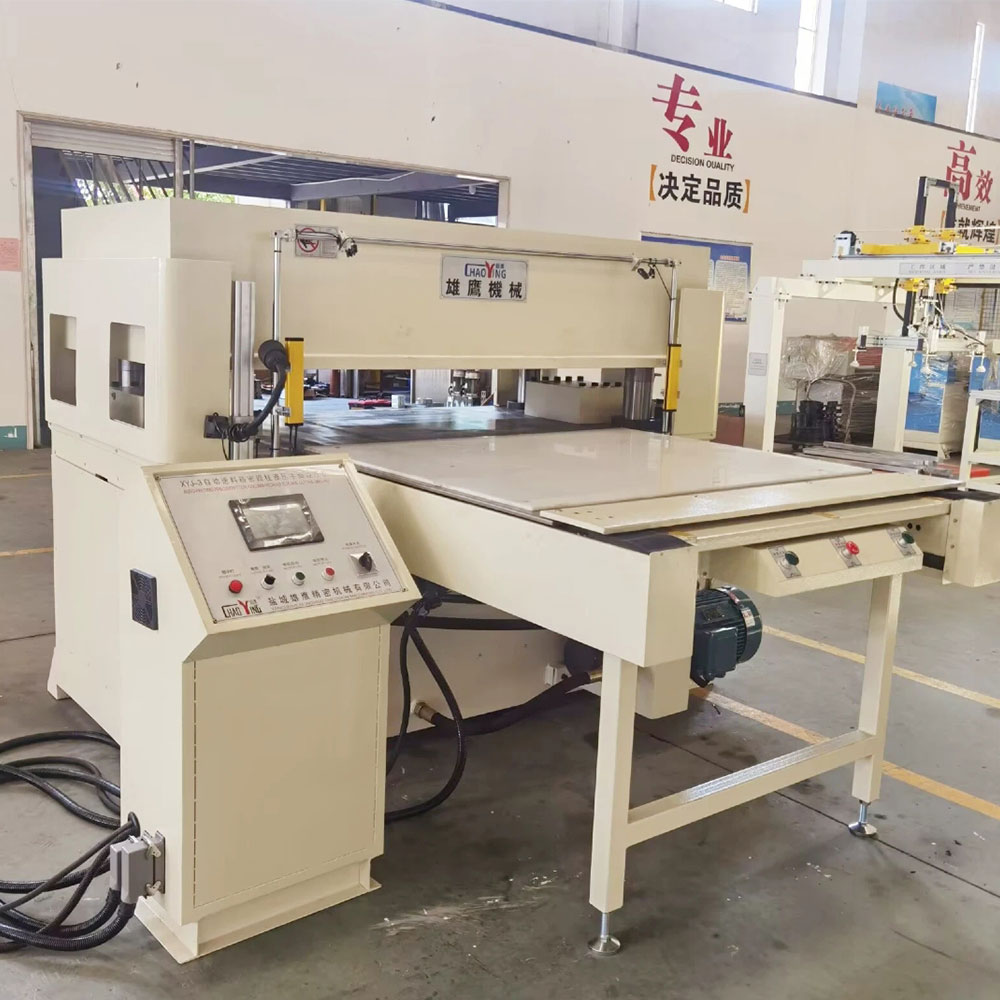

This is a single-side automatic feeding four-column hydraulic die cutting machine, designed for precise die cutting of non-metallic sheet and roll materials. It combines a four-column precision guiding structure with a single-side automatic feeding system to improve cutting consistency and production efficiency.
Machine Structure

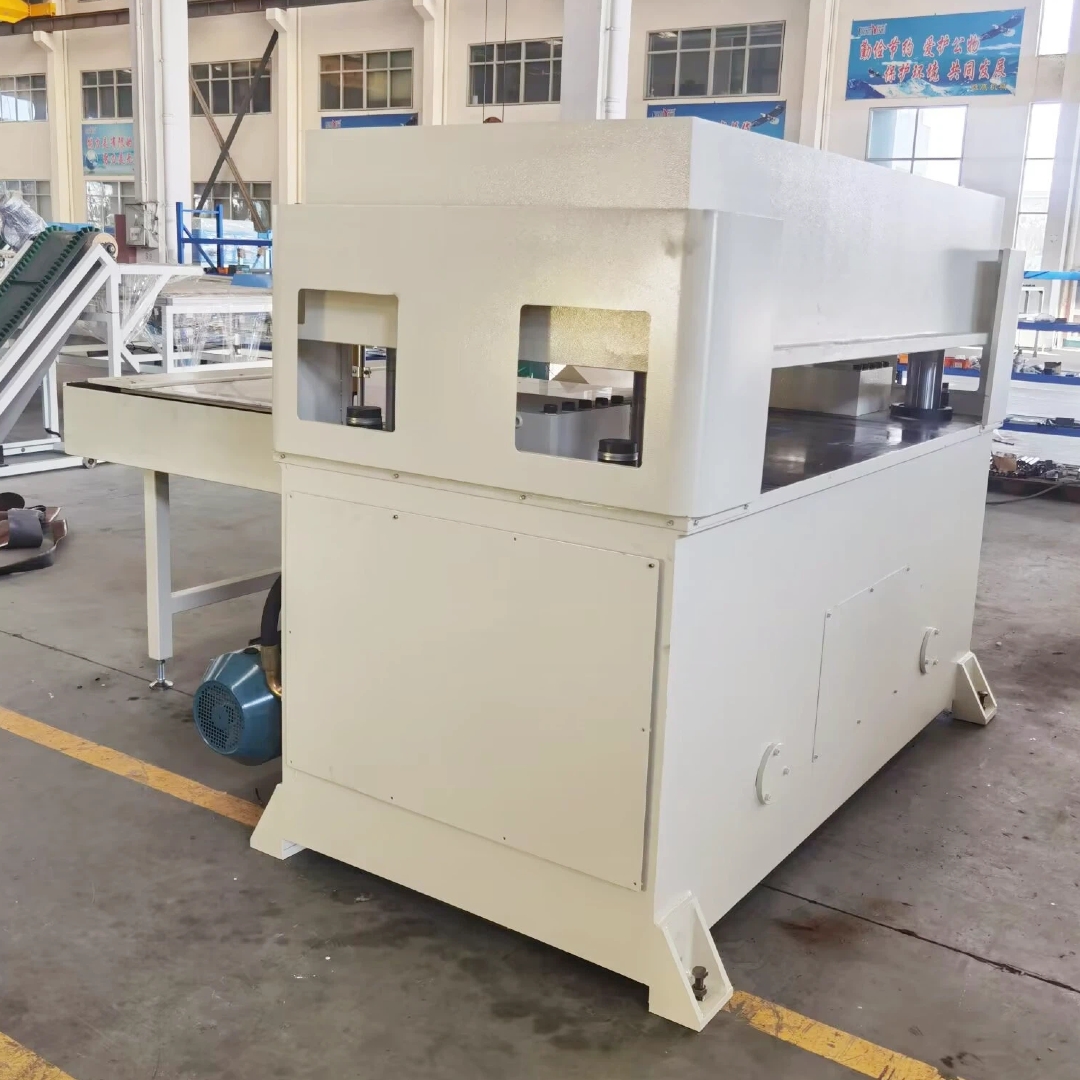

Four-column precision guiding structure with double oil cylinders and automatic balancing linkage to keep the cutting depth uniform across the working area.
Single-side automatic feeding device to reduce manual handling and increase output.
Hydraulic slow-cutting control near the die to minimize size difference between upper and lower material layers.
Adjustable stroke and cutting height for different die heights and material thicknesses.
Central automatic lubrication system to maintain precision and extend service life.
Optional: PLC control, cutting board micro-movement, die pneumatic clamping, safety light curtain, double-side feeding.
Processing Materials
Suitable for non-metallic materials such as:
Leather, PU/PVC leather and microfiber leather
Fabric, canvas, non-woven fabric and mesh
Foam, sponge, EPE, EVA and pearl cotton
Rubber sheets and soft plastic sheets
Cardboard, paperboard and reinforcement board
Blister, PET, PS, ABS and packaging materials
Finished Products
Leather goods and wallet components
Shoe uppers, insoles and linings
Bag panels and small leather accessories
Foam inserts and packaging pads
Blister trays and plastic packaging parts
Automotive interior trim components
Carpet, floor mat and gasket parts
Performance and Processing Ability
Supports single-layer or multi-layer die cutting.
Delivers stable cutting depth and clean edges through four-column guidance.
Reduces material waste and die wear with balanced pressure control.
Improves batch consistency for repetitive production.
Automatic feeding helps reduce labor intensity and increase efficiency by 2–3 times.
Suitable Processing Needs
This machine is suitable for factories that need:
High-efficiency die cutting for leather, fabric, foam, rubber and packaging materials.
Stable precision across large cutting areas.
Reduced manual feeding for continuous production.
Flexible customization of tonnage, table size and feeding mode.
Reliable performance for leather goods, footwear, packaging, automotive interior and general non-metal cutting applications.
Technical Parameters
Model | XYJ-3/120 | XYJ-3/150 | XYJ-3/200 |
Max.cutting force | 1200kN(120Ton) | 1500kN(150Ton) | 2000kN(200Ton) |
Stroke adjustment range | 0—160mm | 0—160mm | 0—160mm |
Range between the working tables | 50—210mm | 50—210mm | 50—210mm |
Size of upper cutting board | 1600*1100mm | 1600*1100mm | 1600*1100mm |
Size of lower worktable | 1600*1120mm | 1600*1120mm | 1600*1120mm |
Motor power | 11kW | 11kW | 11kW |
