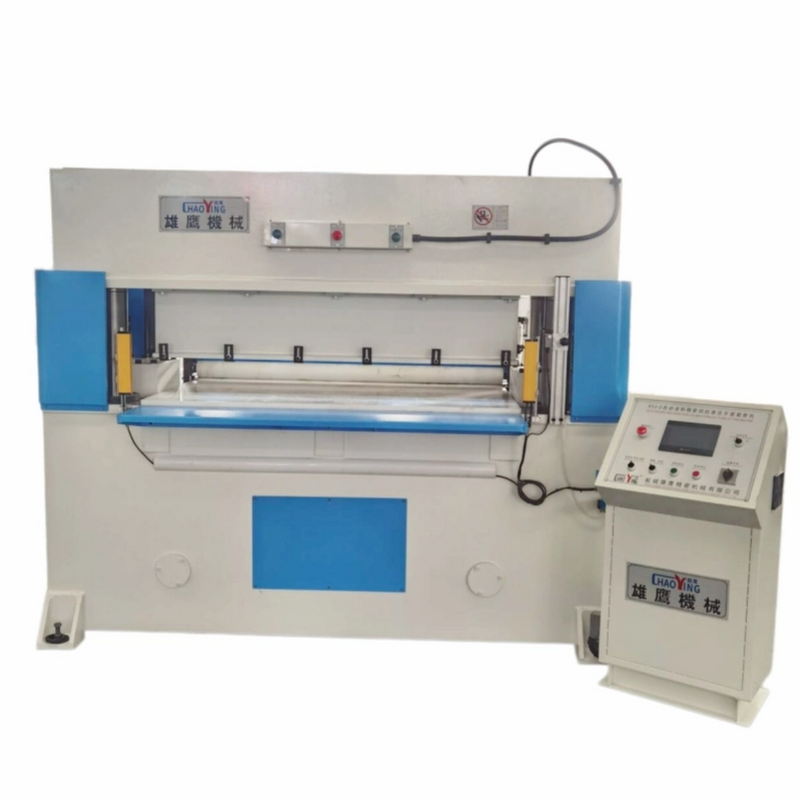

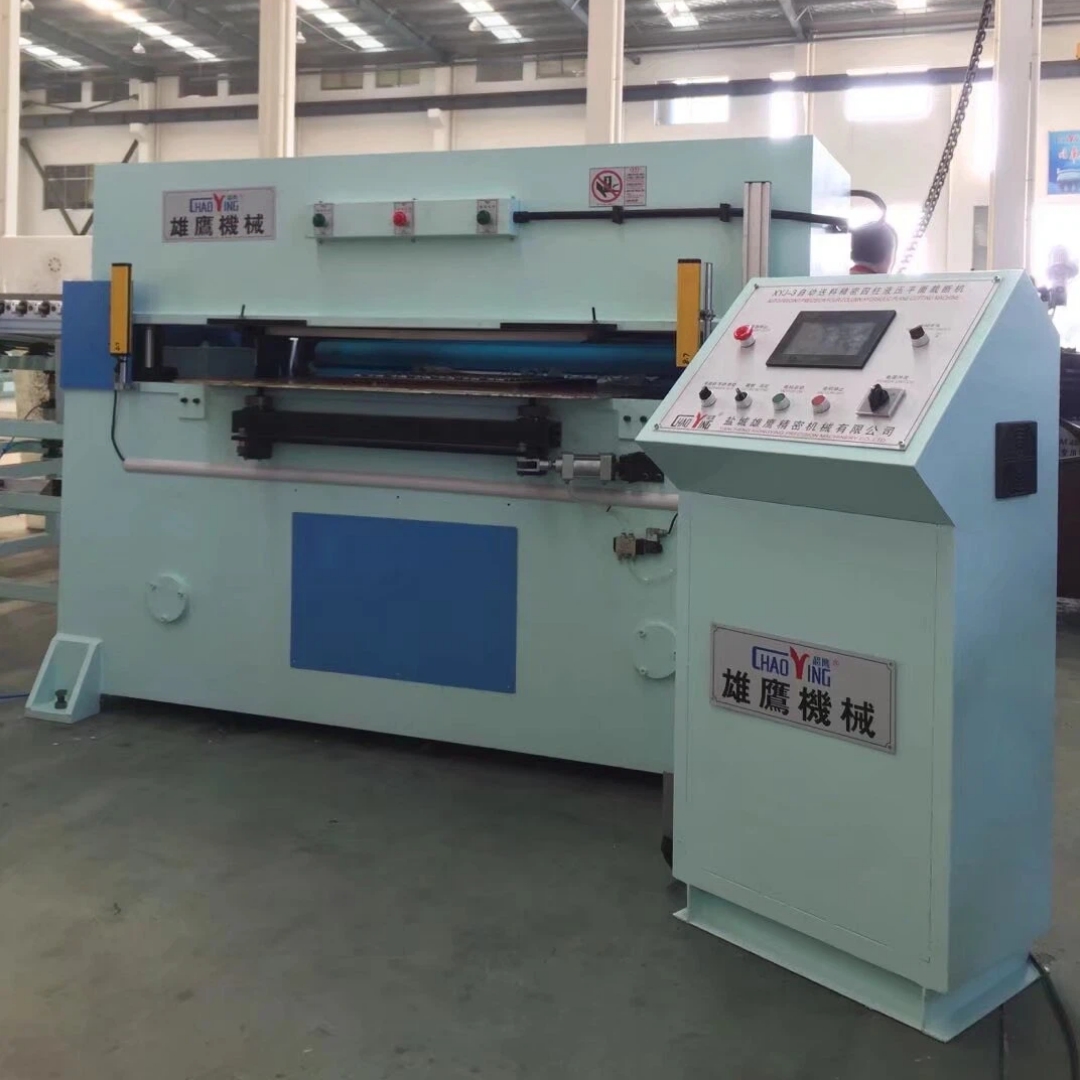

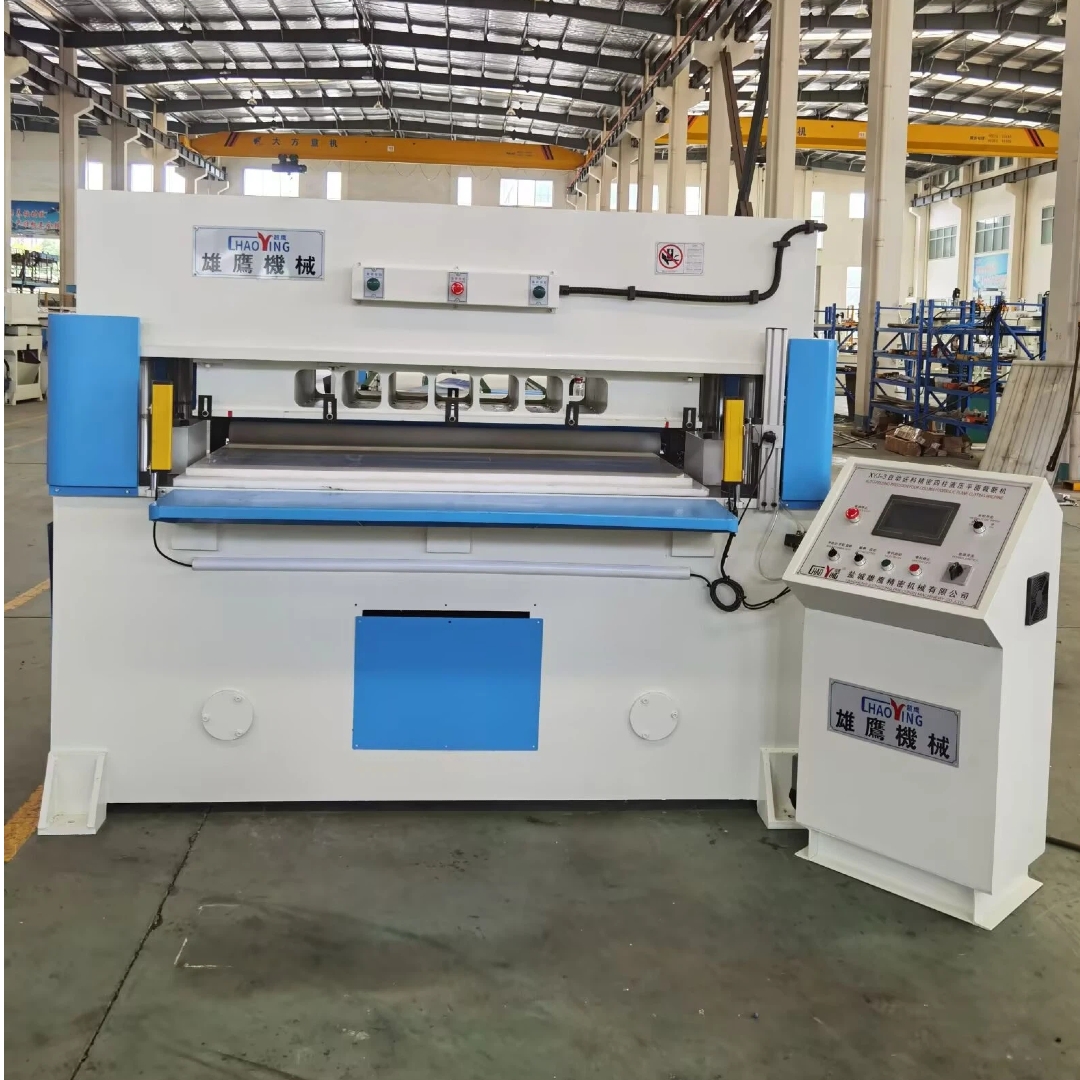

Rubber Roller Feeding 4-Column Hydraulic Die Cutting Machine
The Professional PLC-Controlled Rubber Roll Auto-Feeding Cutting Machine is a premier industrial solution designed for high-efficiency, continuous cutting of a vast range of non-metallic materials. Engineered specifically for large-batch production, this machine utilizes a precision four-column structure and double oil cylinders to deliver exceptional stability and cutting power. Whether processing multi-layer textiles, durable rubber, nylon, or synthetic fabrics, it ensures flawless accuracy across every cycle. With its integrated PLC touch screen control and automated feeding system, it provides a seamless, high-speed workflow, making it the ideal choice for modern manufacturers seeking to maximize throughput while maintaining superior quality standards in every cut.
Equipped with an advanced PLC touch screen program control system, this machine offers an intuitive interface for managing complex cutting tasks. A standout feature is the choice between automatic and manual cutting die setting modes, allowing operators to adapt to different tools and material requirements instantly. This digital intelligence reduces setup time, minimizes human error, and ensures precise pressure application, providing the technological foundation for consistent, high-quality industrial output across various production batches.
• Rubber Roll Auto-Feeding for Continuous Efficiency

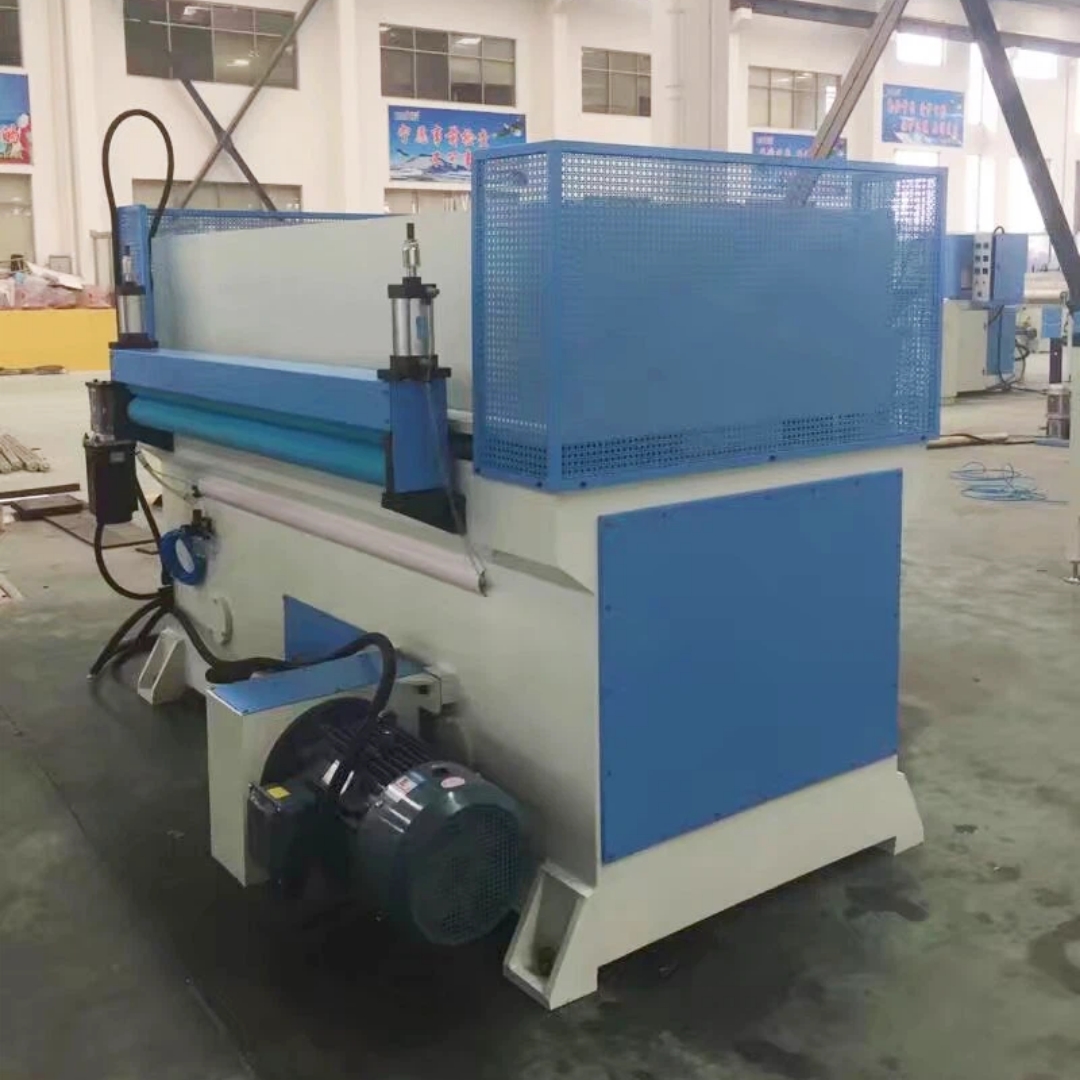

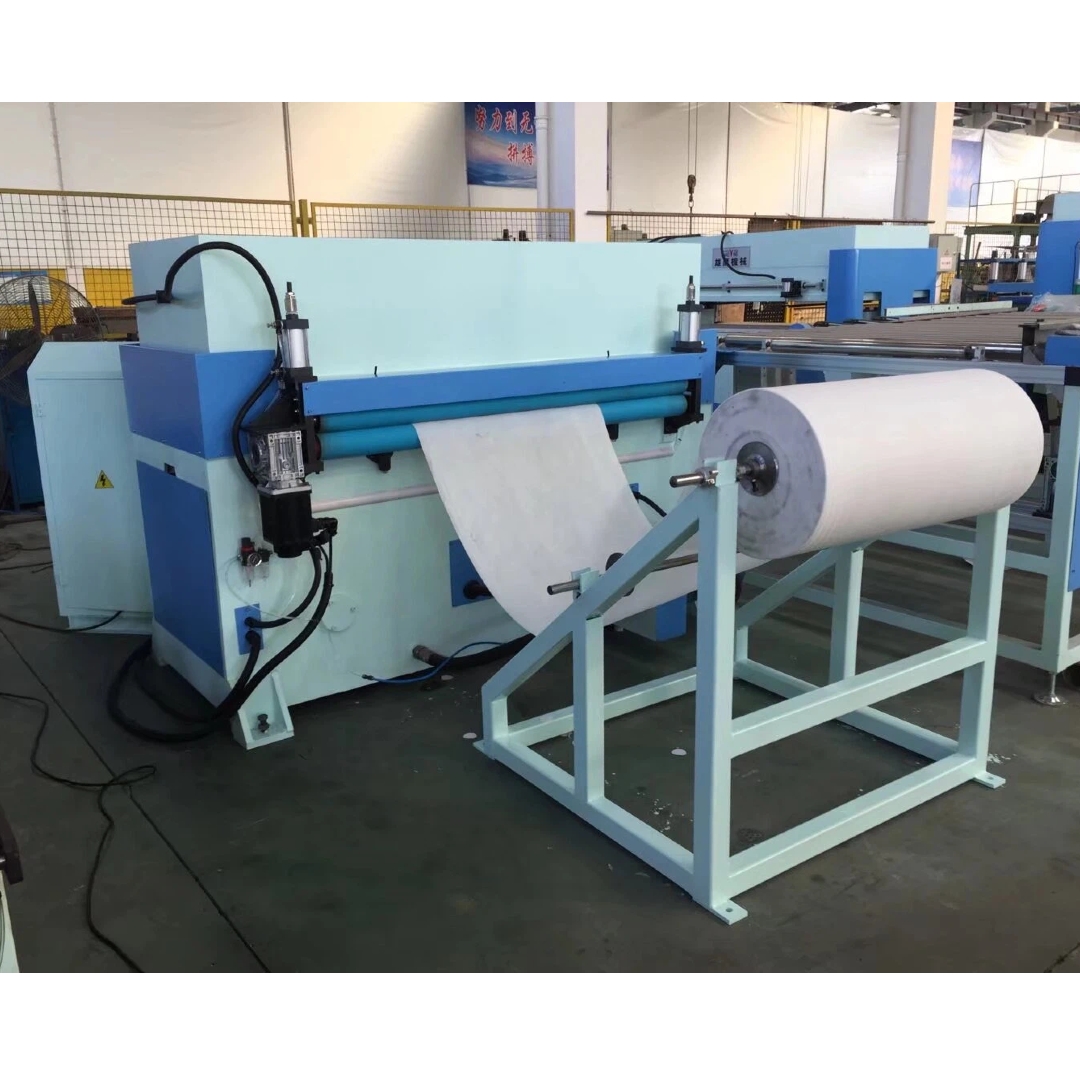

To optimize high-volume manufacturing, the equipment features a specialized back-side rubber roll auto-feeding device. This system automates the material advancement process, ensuring a continuous and smooth flow into the cutting zone. By significantly improving cutting efficiency compared to manual feeding, it allows for uninterrupted large-batch production. This automated handling not only increases daily output but also reduces the physical labor required, making it a highly cost-effective solution for busy factory environments.
• Precision Four-Column Auto-Balancing Structure
The machine utilizes a precision four-column auto-balancing link structure supported by heavy-duty double oil cylinders. This mechanical design ensures that hydraulic pressure is distributed with absolute uniformity across the entire cutting area. Regardless of the material’s position on the bed, the machine guarantees a consistent cutting depth for every piece. This structural stability is critical for maintaining high dimensional accuracy and preventing partial cuts, ensuring that every finished component meets rigorous industrial standards.
• Slow-Cutting Technology for Multi-Layer Accuracy
Achieving perfection in multi-layer material processing is made possible through an intelligent automatic slow-cutting mechanism. When the upper board descends and touches the cutting die, the system automatically decelerates the stroke. This precise control ensures that there is zero size error or displacement between the top and bottom layers of a material stack. It is a vital technical advantage for processing nylon, felt, or textiles where maintaining identical dimensions throughout high stacks is paramount for quality control.
Safety and longevity are built-in core priorities. The machine is equipped with a high-sensitivity safety grating that protects operators by immediately halting movement if a hazard is detected during the cutting cycle. Additionally, a central oil supply automatic lubricating system continuously oils all moving parts, significantly prolonging the machine's service life and maintaining long-term working precision. These features combine to create a secure, low-maintenance, and highly reliable production environment for continuous industrial use.
Technical Parameters
Model
XYJ-3/120
XYJ-3/150
XYJ-3/200
Max.cutting force
1200kN(120Ton)
1500kN(150Ton)
2000kN(200Ton)
Stroke adjustment range
0—160mm
0—160mm
0—160mm
Range between the working tables
50—210mm
50—210mm
50—210mm
Size of upper cutting board
1600*1100mm
1600*1100mm
1600*1100mm
Size of lower worktable
1600*1120mm
1600*1120mm
1600*1120mm
Motor power
11kW
11kW
11kW
Product Uses
• Apparel and Fashion Accessory Manufacturing
This machine is an optimized solution for the high-volume production of apparel, footwear, and fashion accessories. It is highly effective at cutting leather, felt, fabric, and nylon components for garments and bags. Its multi-layer precision and continuous cutting capability allow manufacturers to process large stacks of textiles with zero size error, maximizing the output of sewing lines and ensuring that every component is perfectly cut to specification for mass-market fashion goods.
• Industrial Cleaning and Household Supplies
Beyond fashion, the equipment is widely applied in the manufacturing of industrial cleaning supplies, carpets, and household goods. It easily handles dense materials like rubber and specialized felts used in scouring pads and cleaning tools. The rubber roll auto-feeding system is perfect for processing rolls of carpet and nylon materials, providing the speed and accuracy required for high-volume home supply production. Its versatile design makes it a multi-purpose workhorse for factories producing diverse industrial and household components.
