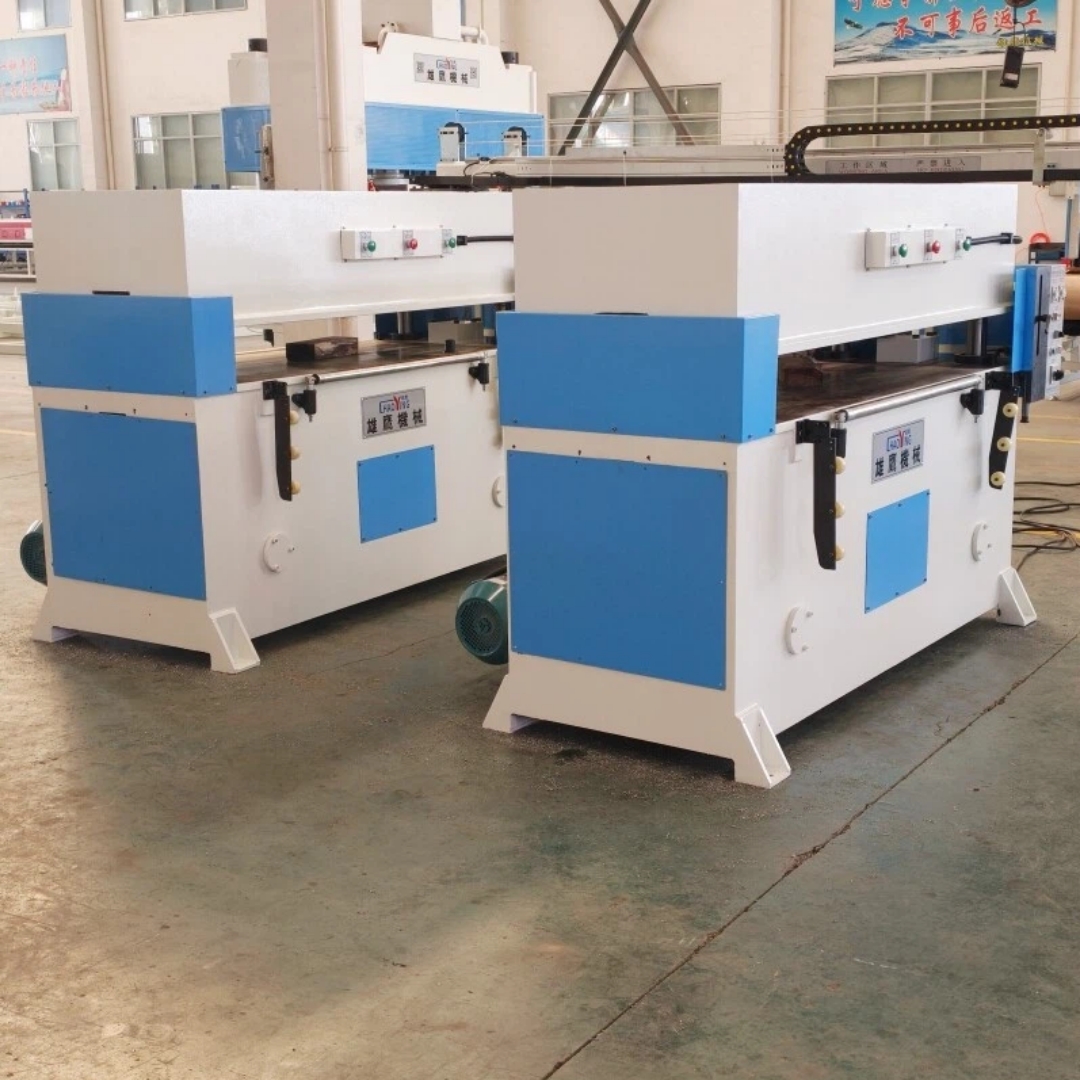

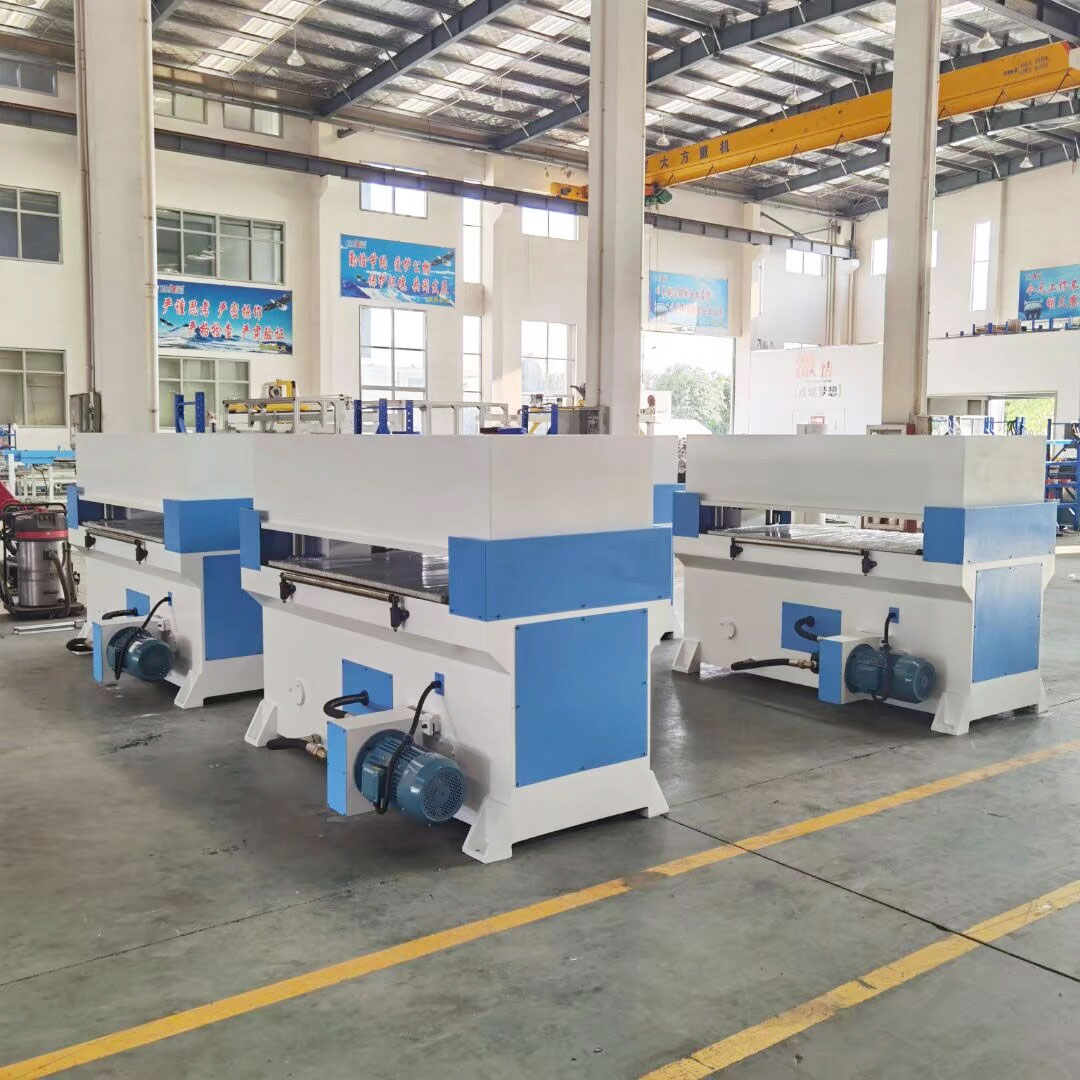

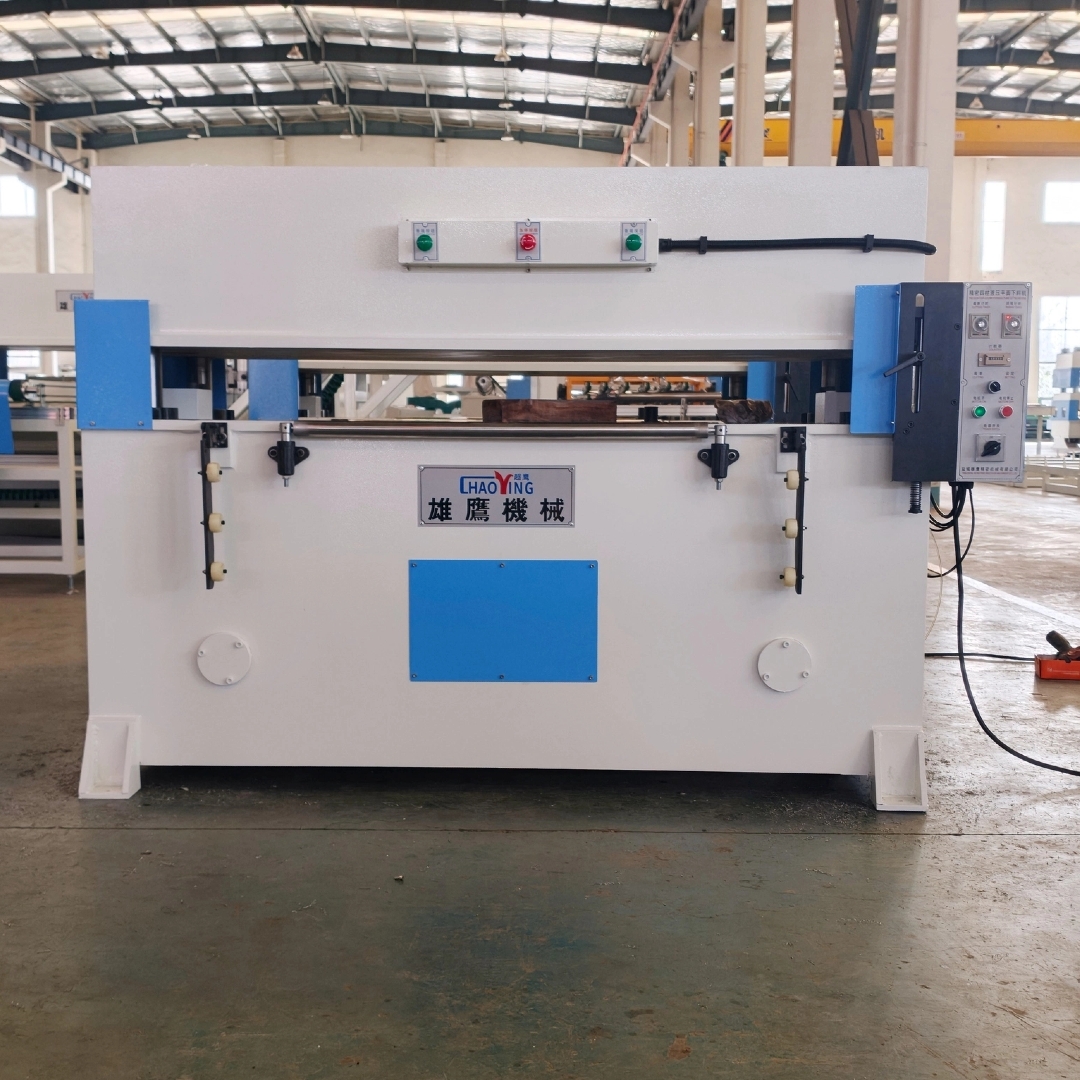

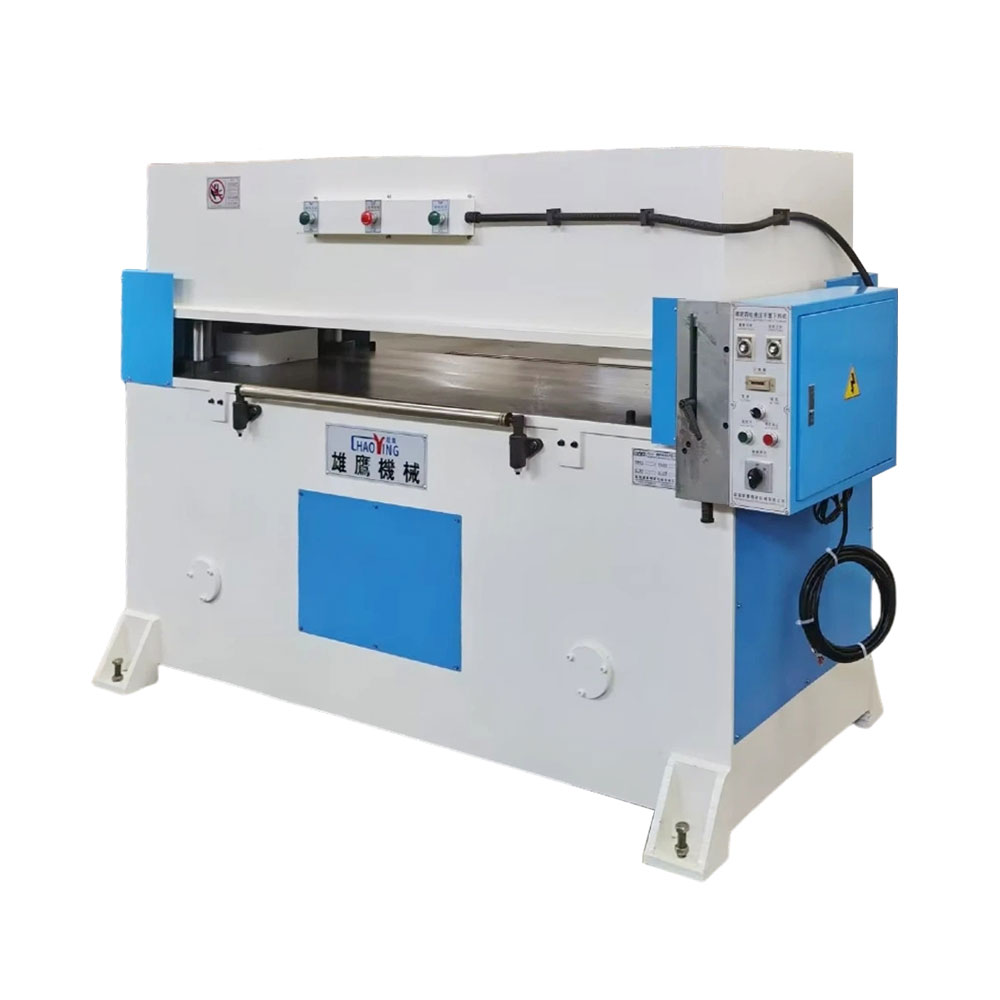

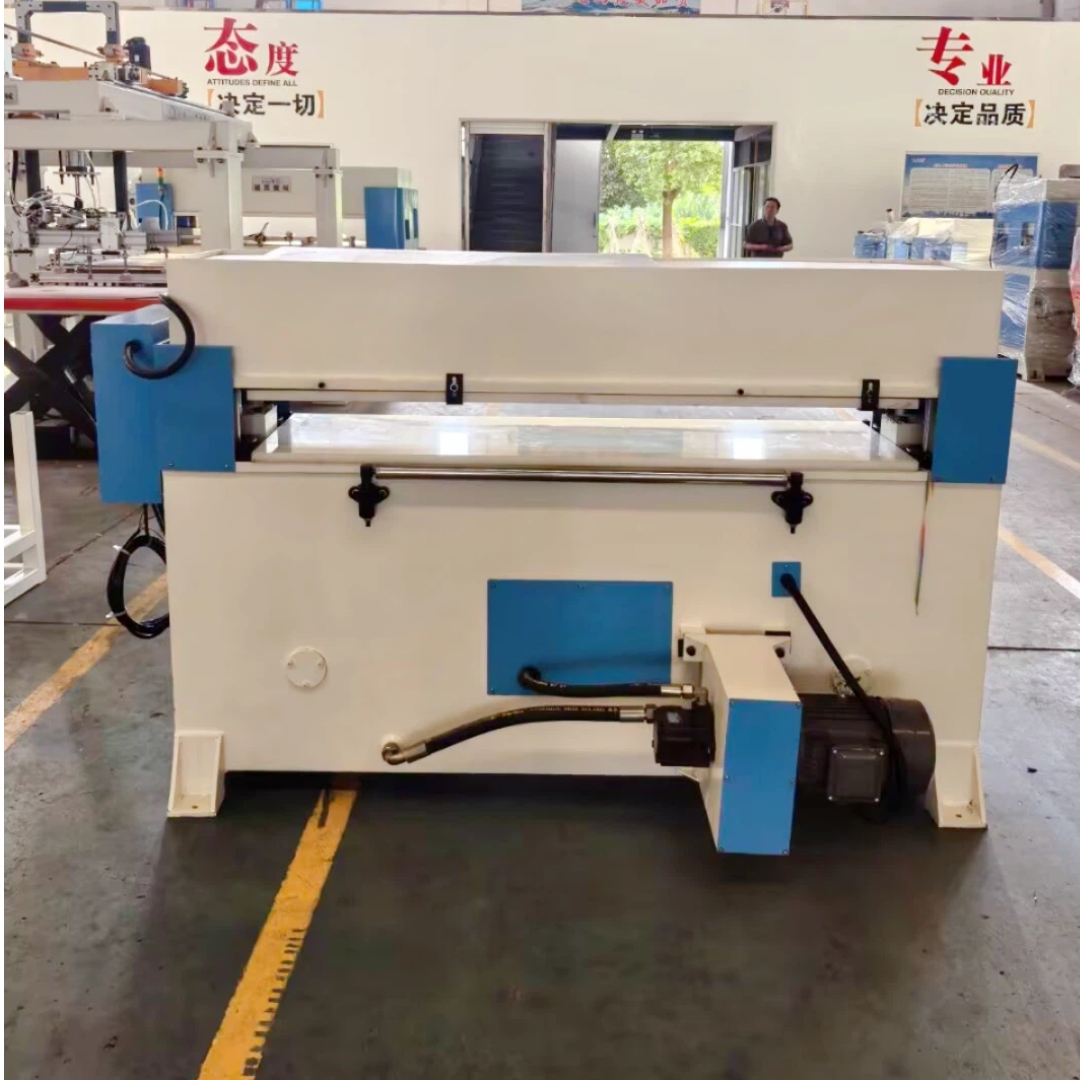

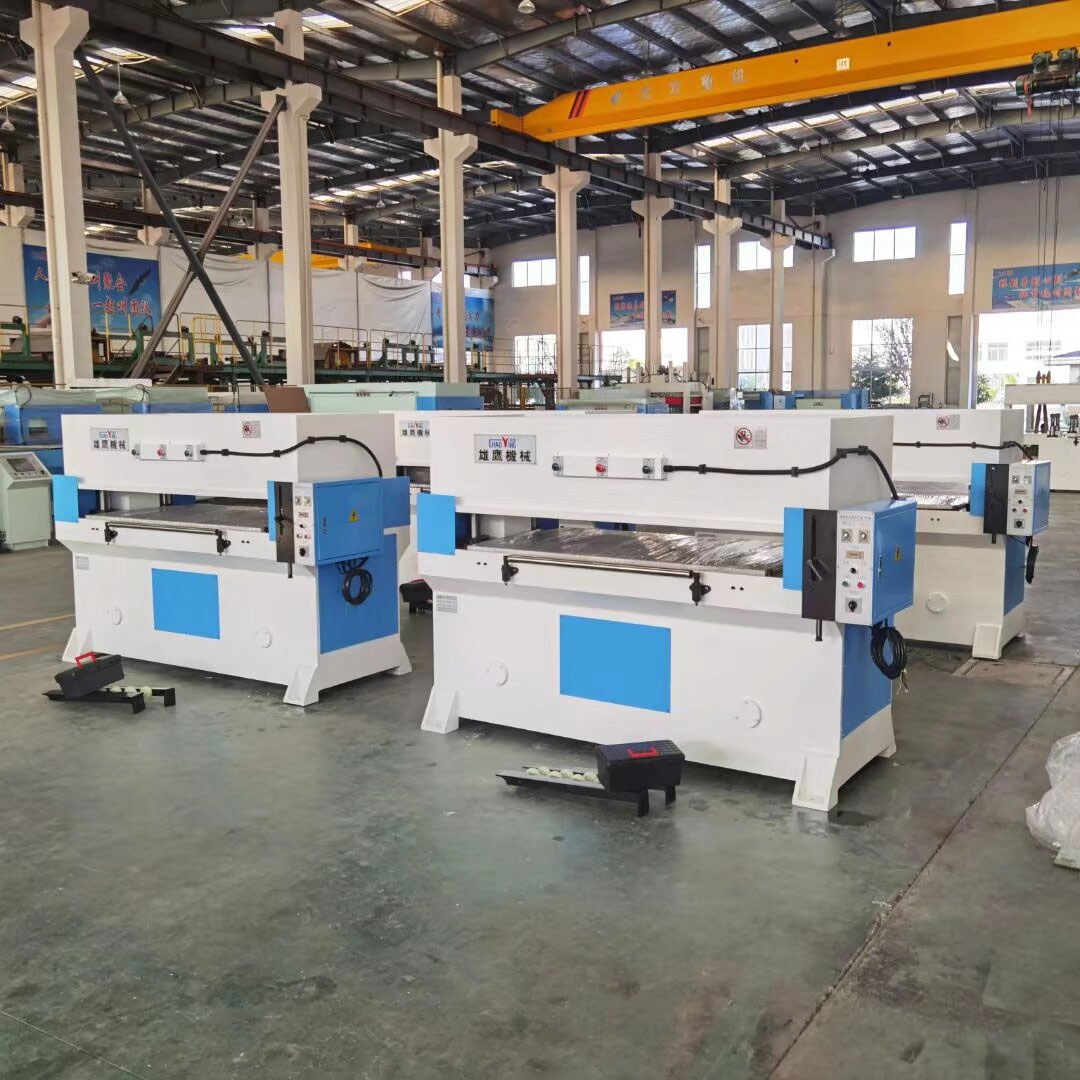

The Precision Four-Column Auto-Balancing Hydraulic Cutting Machine is a top-tier industrial solution designed for high-accuracy processing of both single and multi-layer materials. Utilizing a robust double oil cylinder system and a cutting-edge four-column structure, this machine is optimized for various materials including leather, rubber, plastic, textiles, and chemical fibers. It is engineered to provide an ideal combination of strong cutting force and high operational speed. With its focus on uniform precision and ease of use, this equipment is the perfect choice for manufacturers in the packaging, garment, and industrial sectors looking to maximize productivity while maintaining flawless cutting quality across diverse production lines.
The machine is engineered with a high-precision four-column auto-balancing link structure supported by double oil cylinders. This advanced mechanical design guarantees that the cutting pressure is distributed perfectly across the entire work surface. By ensuring a completely uniform cutting depth at every position, it eliminates inconsistent results and material waste. This technical feature is essential for manufacturers who require high-dimensional accuracy and a perfect finish for every component, regardless of where it is placed on the cutting bed.
• Intelligent Automatic Slow Cutting Technology
A standout feature of this equipment is its intelligent slow-cutting mechanism. When the upper cutting board drops and makes contact with the cutting die, the machine automatically transitions to a slower cutting speed. This precise deceleration ensures that there is no size error between the top and bottom layers during multi-layer cutting. It effectively solves the common industrial problem of "material displacement" or size inconsistency, making it ideal for high-stack cutting of textiles, chemical fibers, and leather sheets.
• Central Oil Supply Automatic Lubrication System
To ensure long-term operational reliability, the machine is equipped with a sophisticated central oil supply automatic lubricating system. This system continuously delivers oil to all critical moving parts, reducing friction and preventing mechanical wear. Not only does this automation guarantee high working precision over time, but it also significantly prolongs the service life of the machine. By reducing the need for manual maintenance, it lowers operational downtime and ensures the equipment remains a high-performance asset for years.
• High-Efficiency & High-Force Operation
Designed for heavy-duty industrial environments, this machine offers an exceptional balance of strong cutting force and high cutting speed. The operation is specifically designed to be labor-saving and simple, allowing operators to achieve high output with minimal physical effort. Despite its powerful performance, the machine maintains a remarkably low malfunction rate due to its optimized hydraulic circuit. This high-efficiency profile helps manufacturers increase their daily production capacity while keeping energy consumption and maintenance costs to a minimum.
• Mandatory Two-Hand Safety Control
Safety is integrated into every aspect of the machine’s design through a mandatory two-hand operation mechanism. The cutting cycle can only be initiated when the operator engages both control buttons simultaneously, ensuring that hands are kept completely clear of the pressure zone during operation. This high-safety standard provides maximum protection for the workforce and ensures that the factory remains compliant with international safety regulations, allowing for high-speed production with total peace of mind for the operator.
Technical Parameters
Model
XYJ-3/30
XYJ-3/35
XYJ-3/40
XYJ-3/50
XYJ-3/60
XYJ-3/80
XYJ-3/100
Max.cutting force
300kN(30Ton)
350kN(35Ton)
400kN(40Ton)
500kN(50Ton)
600kN(60Ton)
800kN(80Ton)
1000kN(100Ton)
Stroke adjustment range
0—100mm
0—100mm
0—110mm
0—130mm
0—140mm
0—140mm
0—140mm
Range between the working tables
60—160mm
60—160mm
60—170mm
60—190mm
50—190mm
50—190mm
50—190mm
Size of upper cutting board
1600*500mm
1600*600mm
1600*600mm
1600*730mm
1600*800mm
1600*800mm
1600*940mm
1600*800mm
1600*1000mm
1600*800mm
1600*1000mm
Size of lower worktable
1600*510mm
1600*610mm
1600*610mm
1600*740mm
1600*820mm
1600*820mm
1600*960mm
1600*820mm
1600*1020mm
1600*820mm
1600*1020mm
Motor power
2.2kW
3kW
3kW
5.5kW
5.5kW
7.5kW
11kW
Product Uses
• Automotive and Footwear Industry
This machine is widely applied for the precision cutting of single-layer or multi-layer leather and synthetic textiles. Its auto-balancing structure ensures that components for car interiors, footwear, and leather bags are cut with extreme accuracy. The ability to handle high stacks of material without size deviation makes it a critical tool for mass-producing complex patterns in the garment and accessory sectors.
• Industrial Packaging and Synthetic Processing
In the packaging and chemical fiber industries, this machine excels at processing rubber, plastics, and various packaging materials. Its high cutting force allows it to penetrate dense materials with ease, while the automatic lubrication system ensures it can handle the rigorous demands of continuous industrial use. It is the perfect solution for creating custom packaging inserts, industrial gaskets, and synthetic fiber components for technical applications.
