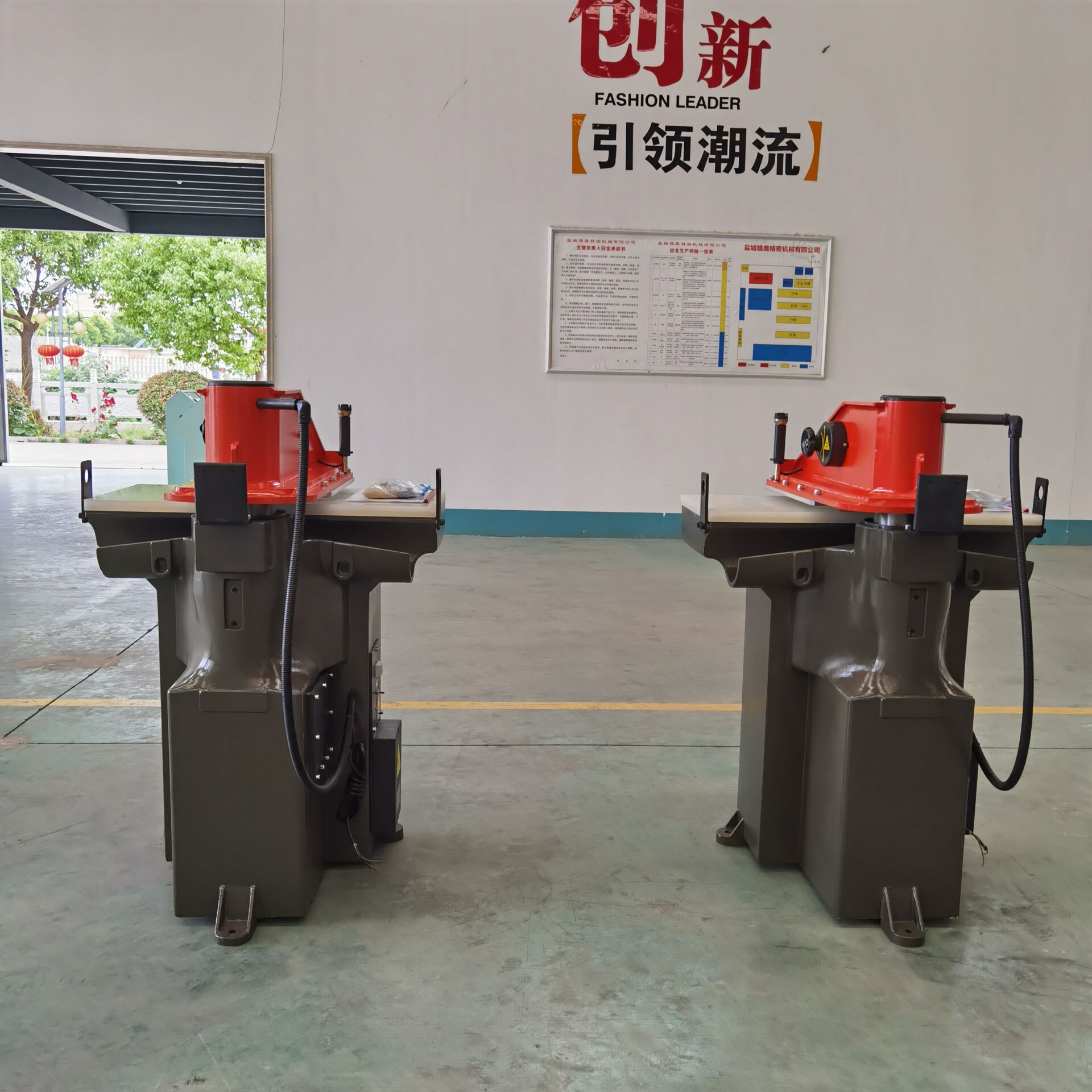

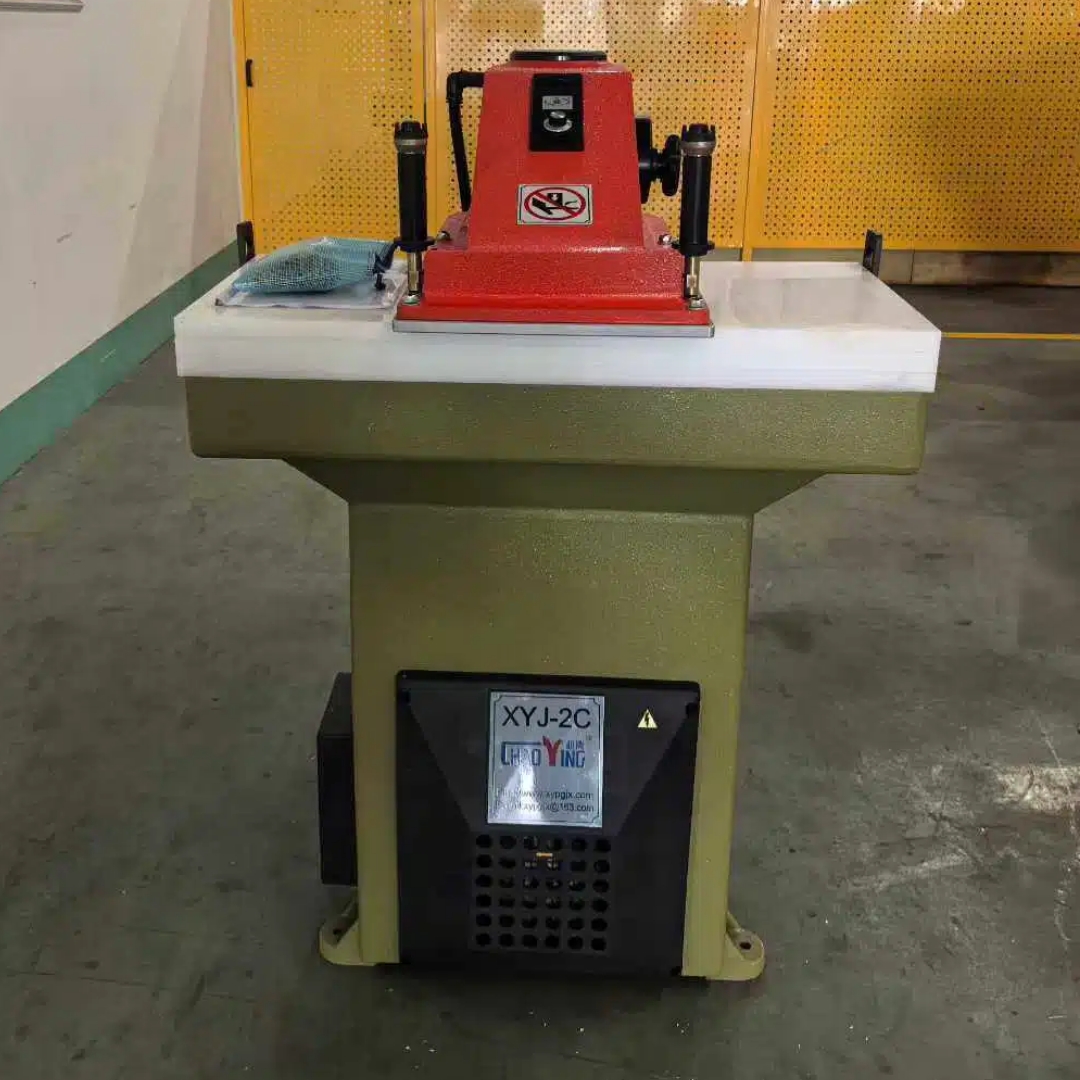

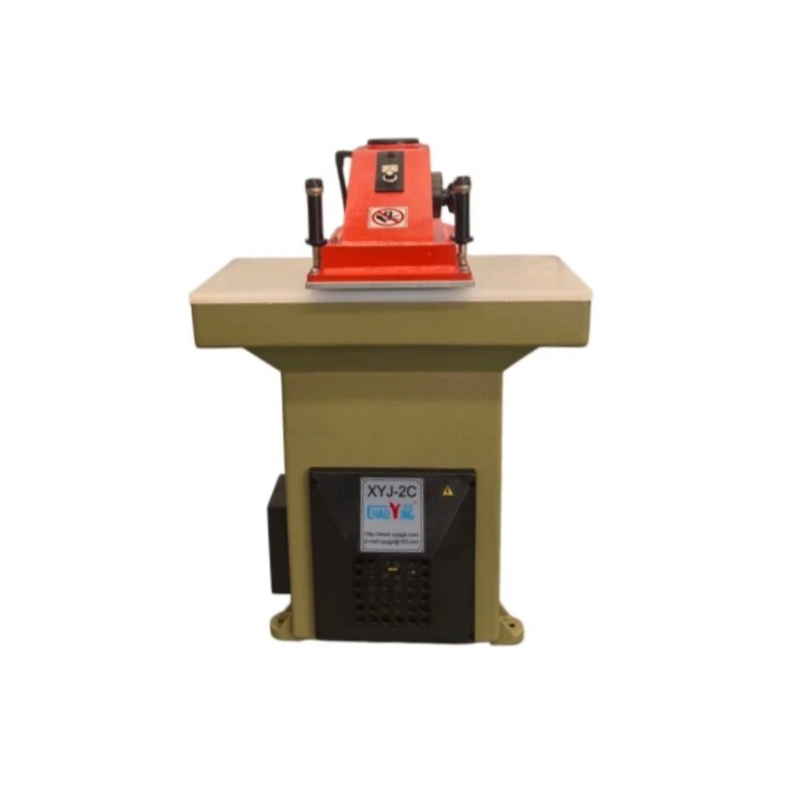

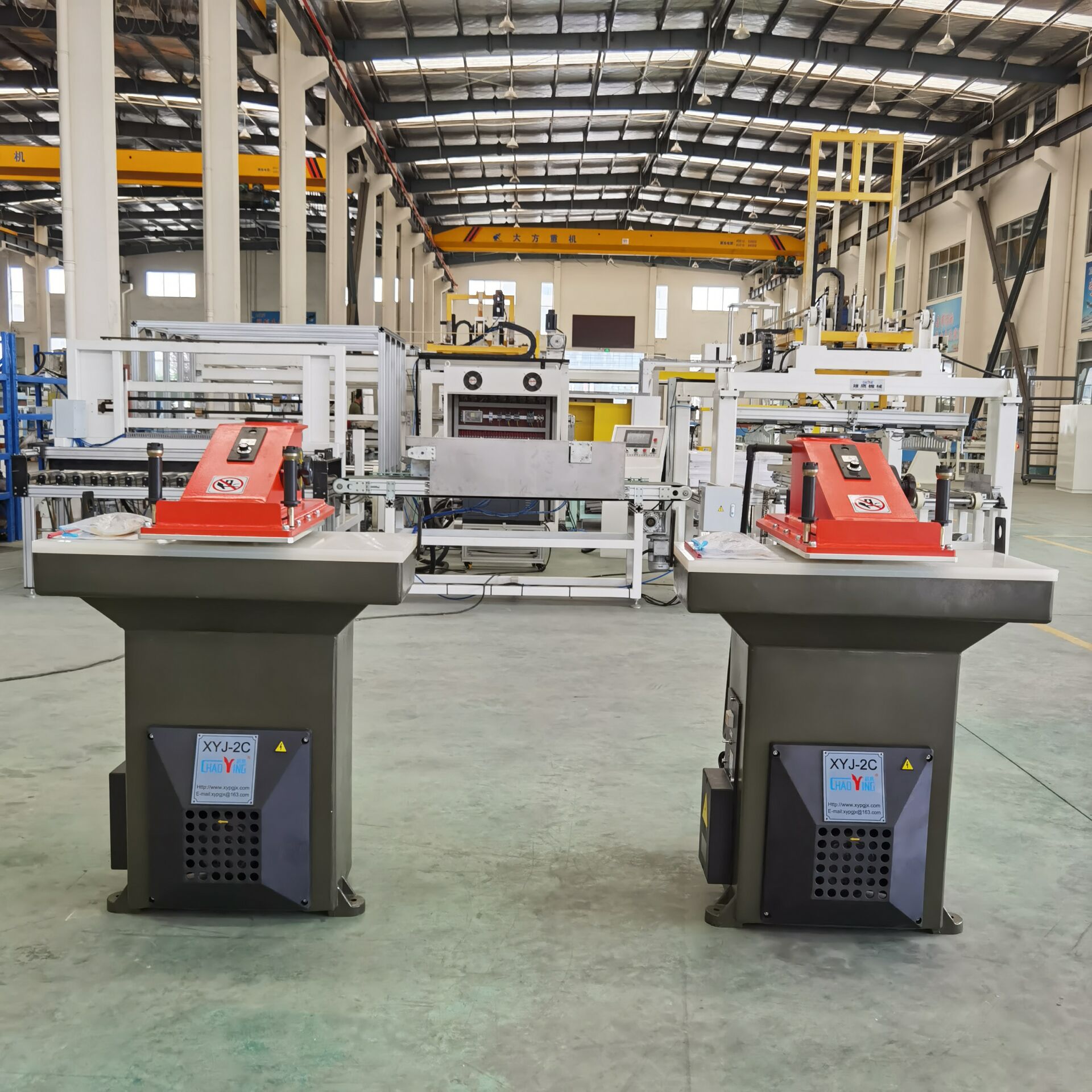

The Precision Cutting Die Machine is a high-performance industrial solution engineered for versatile material processing. Specifically designed to cut both single-layer and multi-layer non-metallic materials—including leather, plastic, paperboard, and fabric—this machine delivers exceptional accuracy across various applications. As an ideal choice for industries such as shoemaking, automotive interiors, clothing, and electronics packaging, it combines robust construction with intelligent technology. Its intuitive operation and adaptability make it an essential asset for manufacturers seeking to enhance production efficiency while maintaining superior quality standards in diverse material cutting tasks.
The machine offers two selectable cutting modes, including a "small pressure" stepless adjustment for precision tasks. A standout feature is the intelligent pressure (T) feedback system, which eliminates the need to manually set the cutting die height. This ensures that the die height has no impact on cutting depth, allowing for consistent, ideal results at every cutting point while significantly reducing setup time for operators.
• Advanced Self-Lubricating Column System
Equipped with a state-of-the-art self-lubricating system featuring double oil circuit static pressure supporting, the machine ensures smooth and effortless mechanical movement. This technical innovation reduces friction and wear on critical components, providing the operator with an easy and free working environment. The automated maintenance improves long-term reliability and extends the machine's service life in high-intensity production settings.
• High-Efficiency & Energy-Saving Components
By utilizing high-quality imported parts for all main systems, the equipment guarantees stable performance and exceptional reliability. This commitment to premium components results in significantly lower noise levels and superior energy-saving capabilities. Manufacturers can benefit from high operational efficiency and reduced power consumption, making it a cost-effective and environmentally friendly solution for modern factory environments.
• Enhanced Two-Hand Safety Operation
Safety is a core priority, integrated via a mandatory two-hand operation control mechanism. This system requires the operator to engage both hands simultaneously to trigger the cutting cycle, effectively preventing accidental hand injuries. This high-safety standard ensures compliance with strict labor regulations and provides a secure working environment, allowing operators to focus on productivity with peace of mind.
Technical Parameters
Model
XYJ-2C/22
XYJ-2C/27
Max.cutting force
220kN(22Ton)
270kN(27Ton)
Stroke adjustment range
0—70mm
0—100mm
Range between the working tables
35—105mm
45—145mm
Size of swing arm
360*430mm
500*500mm
Size of lower worktable
900*430mm
1000*500mm
Motor power
1.1kW
1.5kW
Product Uses
• Apparel and Fashion Accessories
This equipment is an optimized cutting solution for the shoemaking, bag, suitcase, and clothing industries. It excels at processing various grades of leather and fabrics, whether in single sheets or multi-layer stacks. Its precision ensures that complex components for footwear and fashion goods are cut flawlessly, maintaining material integrity while maximizing the throughput of large-scale garment manufacturing lines.
• Technical and Industrial Manufacturing
The machine is widely applied in the automotive, electronics, and packaging sectors for cutting plastics, paperboards, and other technical non-metallic materials. It is perfect for producing car interior parts, protective electronic shielding, and specialized packaging inserts. Its ability to handle diverse materials with consistent depth and high reliability makes it a versatile tool for technical industries requiring rigorous manufacturing standards.The machine is widely applied in the automotive, electronics, and packaging sectors for cutting plastics, paperboards, and other technical non-metallic materials. It is perfect for producing car interior parts, protective electronic shielding, and specialized packaging inserts. Its ability to handle diverse materials with consistent depth and high reliability makes it a versatile tool for technical industries requiring rigorous manufacturing standards.
