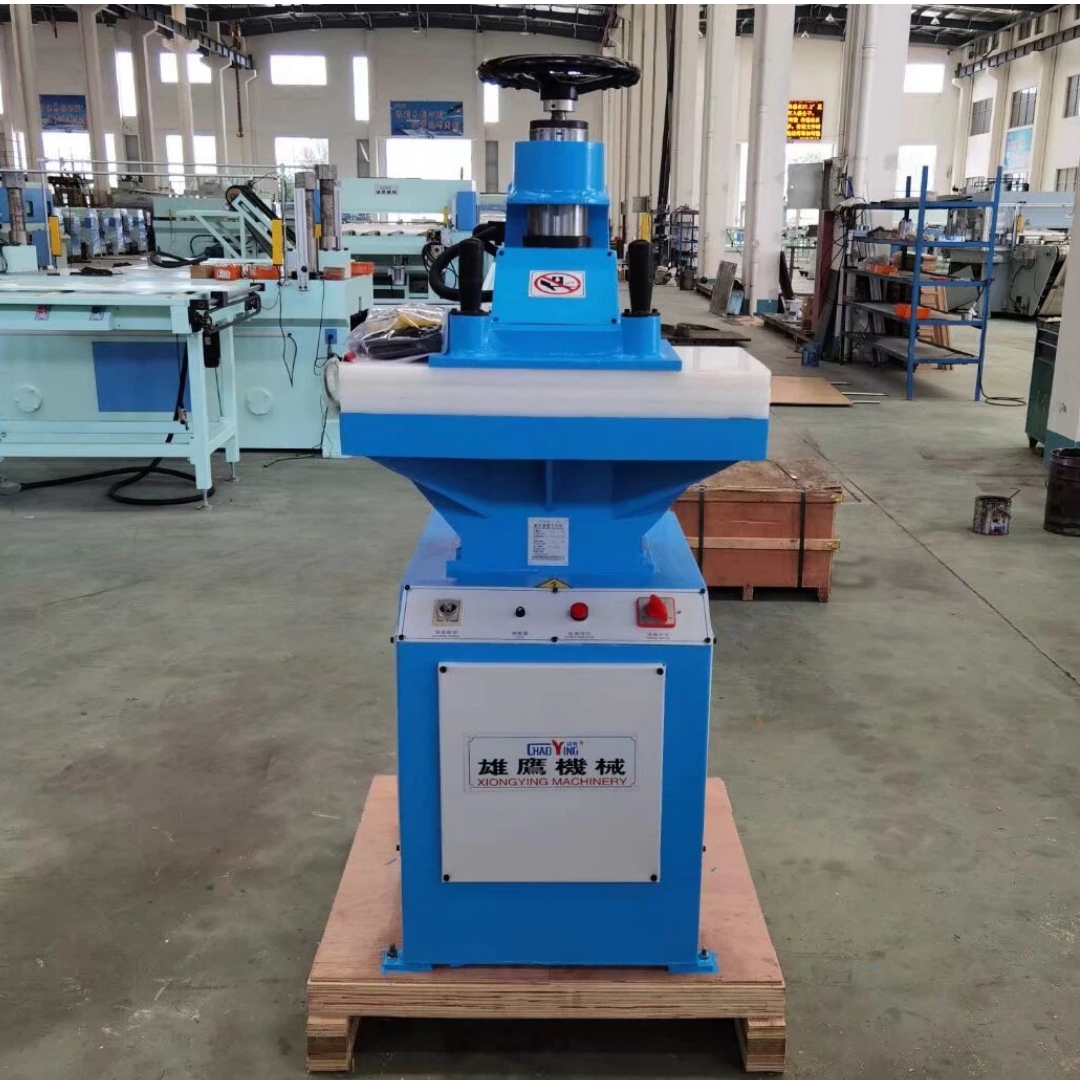

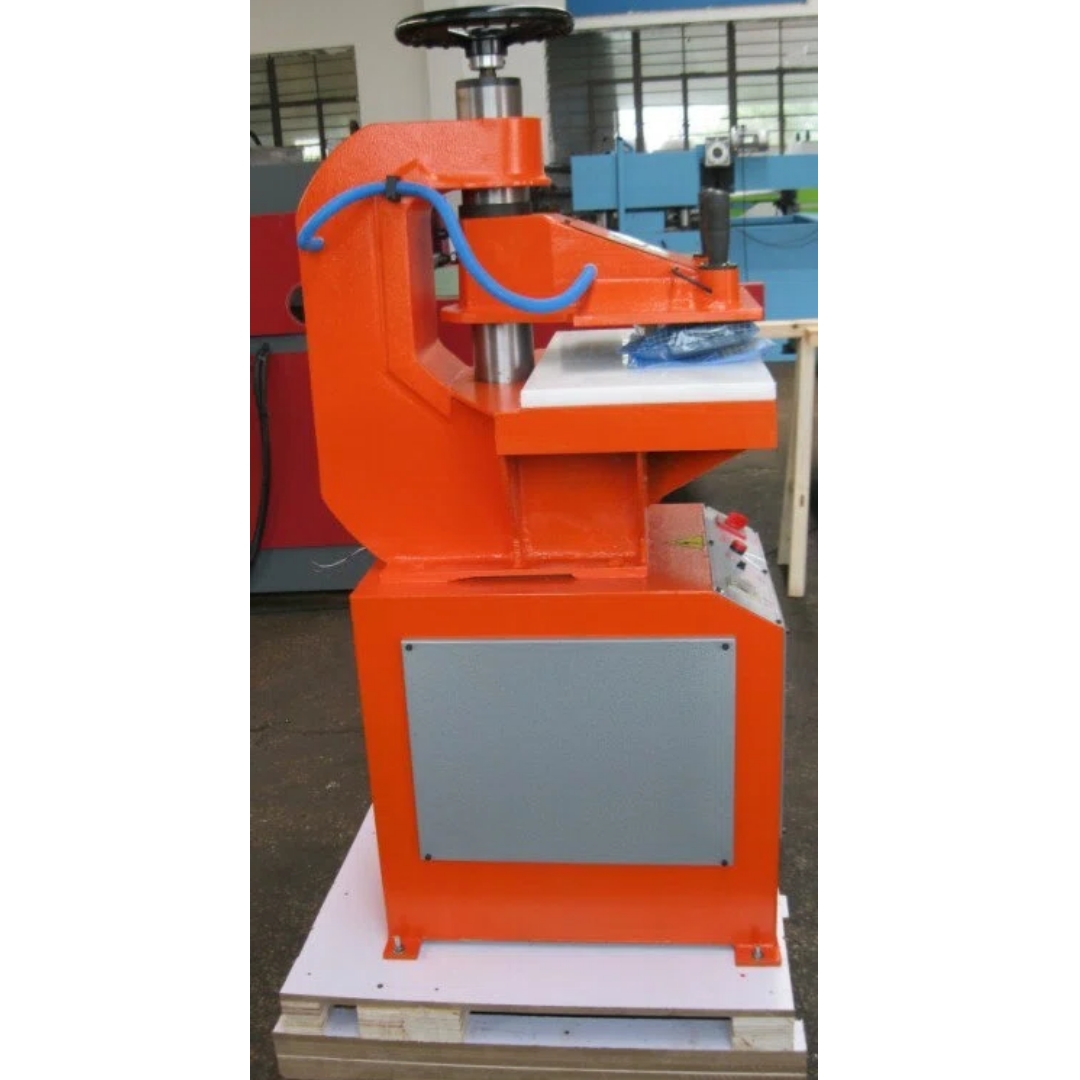

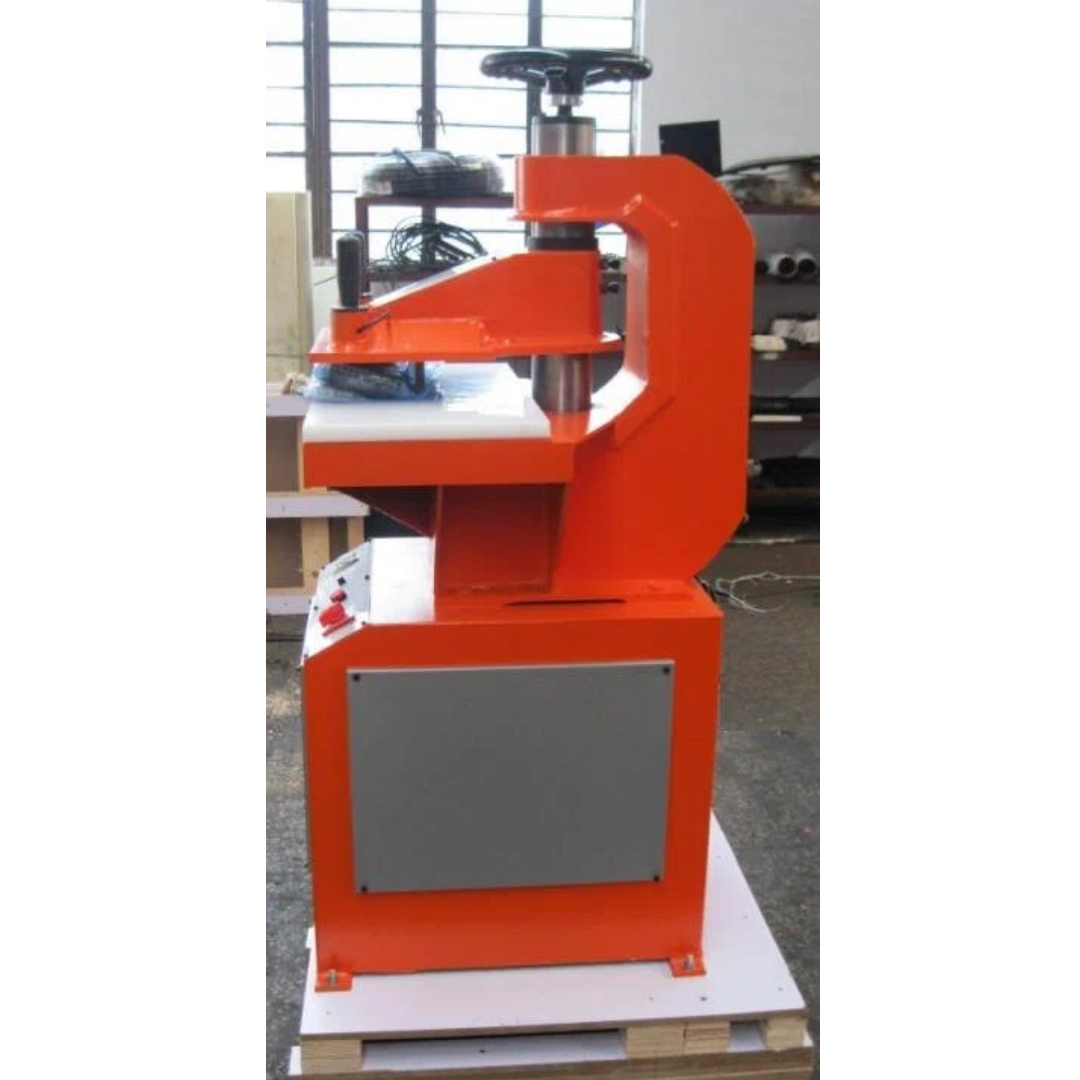

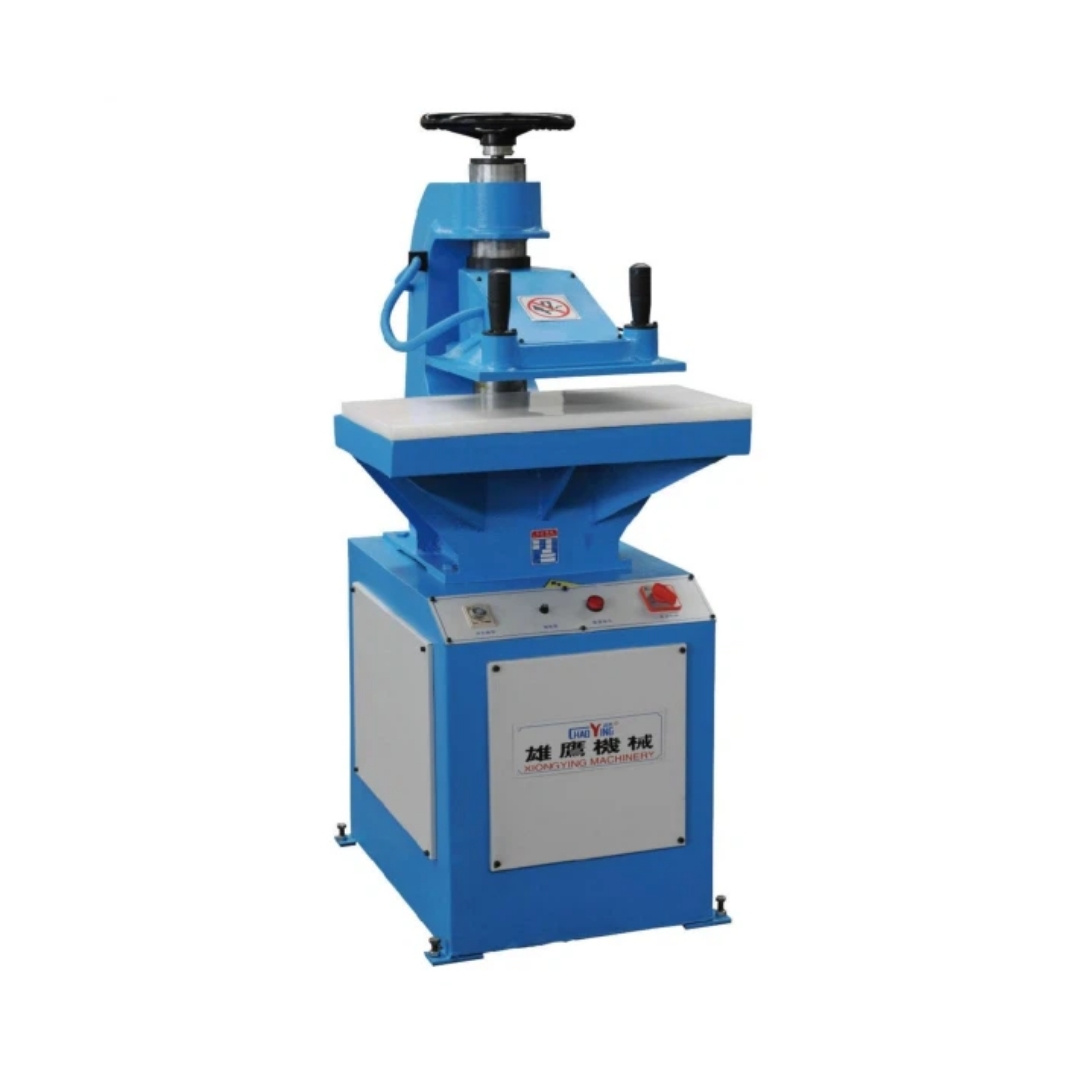

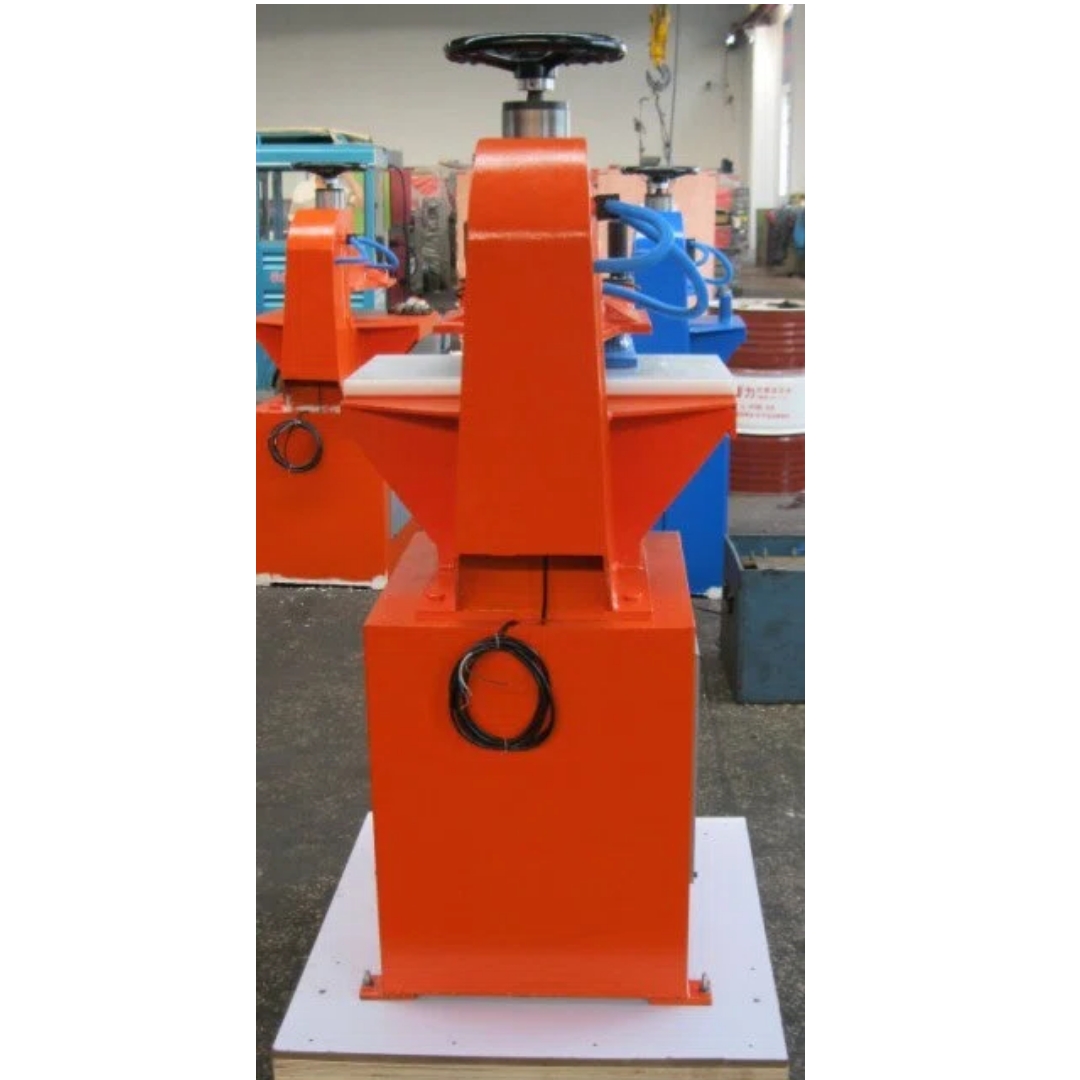

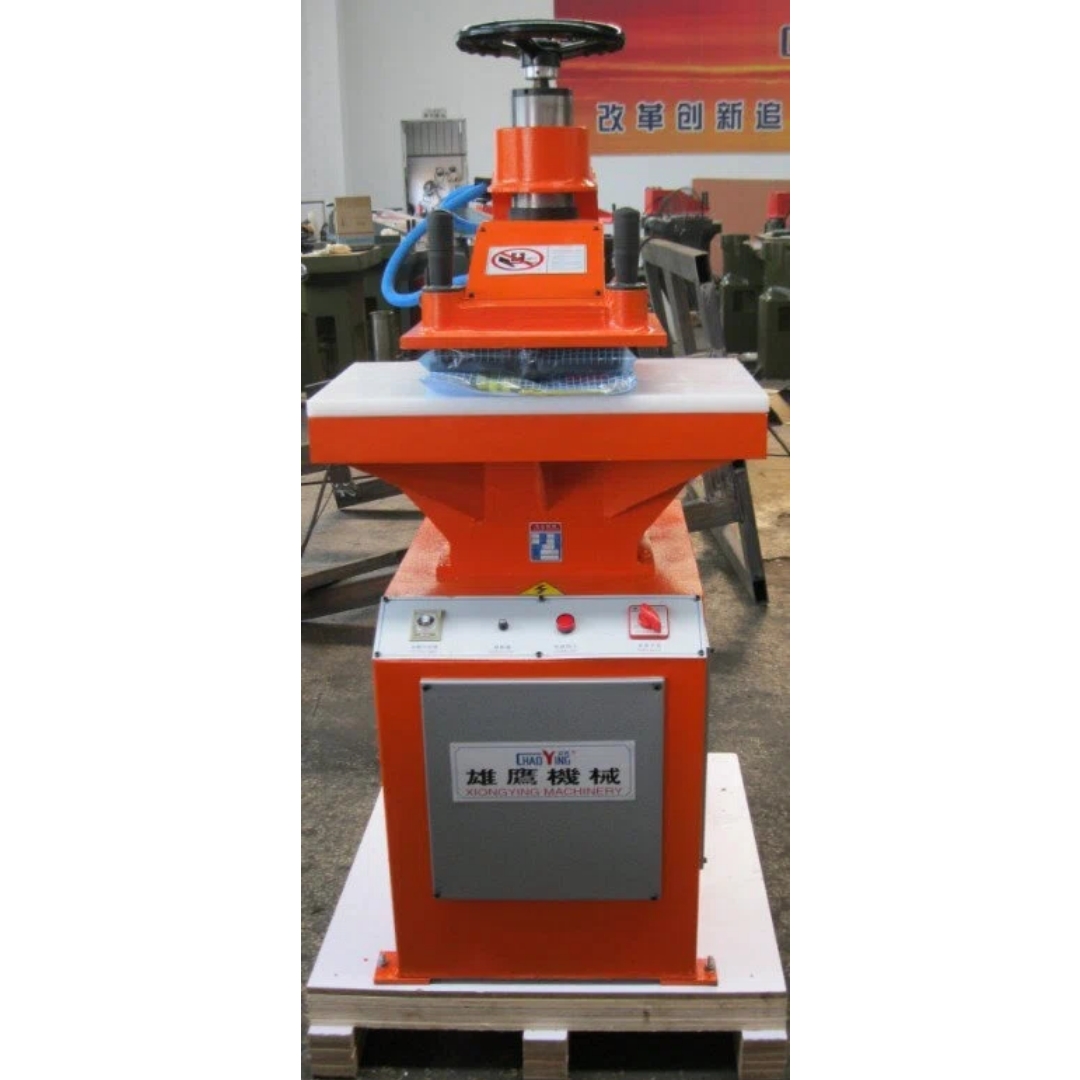

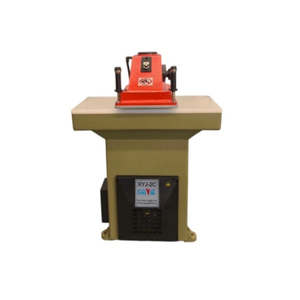

What Is a 10 Ton Hydraulic Swing Arm Clicking Machine?
A 10 ton hydraulic swing arm clicking machine is a hydraulic die cutting press with a movable swing arm. The operator places the cutting die and material on the work table, swings the arm to the working position, and presses the dual buttons to start the cutting stroke. The hydraulic system drives the arm downward to punch the material into the required shape.
This type of machine is widely used for small to medium-sized non-metallic materials, especially when the product requires frequent material selection, frequent die changes, or precise single-piece cutting.
Machine Structure and Working Principle
The machine mainly consists of a main frame, column, hydraulic cylinder, swing arm, pressing plate, work table, hydraulic system and control system.
Swing arm structure: The swing arm can rotate freely, allowing the operator to move the cutting head to different positions. This design provides good visibility and makes material selection easier.
Hydraulic drive: The hydraulic cylinder provides stable cutting force, helping to achieve consistent cutting depth and clean edges.
Stroke control: The cutting stroke can be adjusted by handwheel or timer control, so the machine can adapt to dies of different heights.
Dual-hand operation: The machine adopts a two-hand button design, which helps improve operating safety and reduces the risk of accidental pressing.
Lubrication system: Many models are equipped with an automatic or self-lubrication system to reduce wear and extend service life.
Technical Parameters
Model | XYJ-2/10 |
Max.cutting force | 100kN(10Ton) |
Stroke adjustment range | 0—50mm |
Range between the working tables | 50—110mm |
Size of swing arm | 370*280mm |
Size of lower worktable | 650*330mm |
Motor power | 1.1kW |
Processing Materials and Products
This machine is suitable for cutting one or multiple layers of non-metallic sheet or rolled materials, such as:
Leather and synthetic leather
Rubber and EVA foam
Fabric, canvas, non-woven fabric
Plastic sheets and PVC materials
Paper, cardboard and fiber materials
Sponge, foam and gasket materials
Typical finished products include:
Shoe uppers, insoles and small shoe components
Leather goods and bag accessories
Small rubber gaskets and sealing parts
EVA foam inserts and padding pieces
Toy components and decorative parts
Small fabric, plastic or paper cut parts
Suitable Processing Needs
The 10 ton hydraulic swing arm clicking machine is a good choice when the production process requires:
Flexible die positioning: The swing arm can move freely, making it easy to choose the best cutting position on the material.
Small to medium cutting area: Ideal for small dies and small workpieces rather than very large sheets.
Stable hydraulic cutting: Hydraulic pressure helps keep cutting depth more consistent than manual cutting.
Frequent material changes: Operators can quickly reposition materials and dies without complex adjustment.
Entry-level or workshop-level production: The 10 ton model is compact, relatively easy to operate, and suitable for small factories, sample rooms, or light production lines.
It is less suitable for very large materials, heavy continuous automation, or high-speed mass production. For thicker, harder, or larger-area cutting tasks, a higher-tonnage swing arm machine or another type of die cutting press may be more appropriate.
