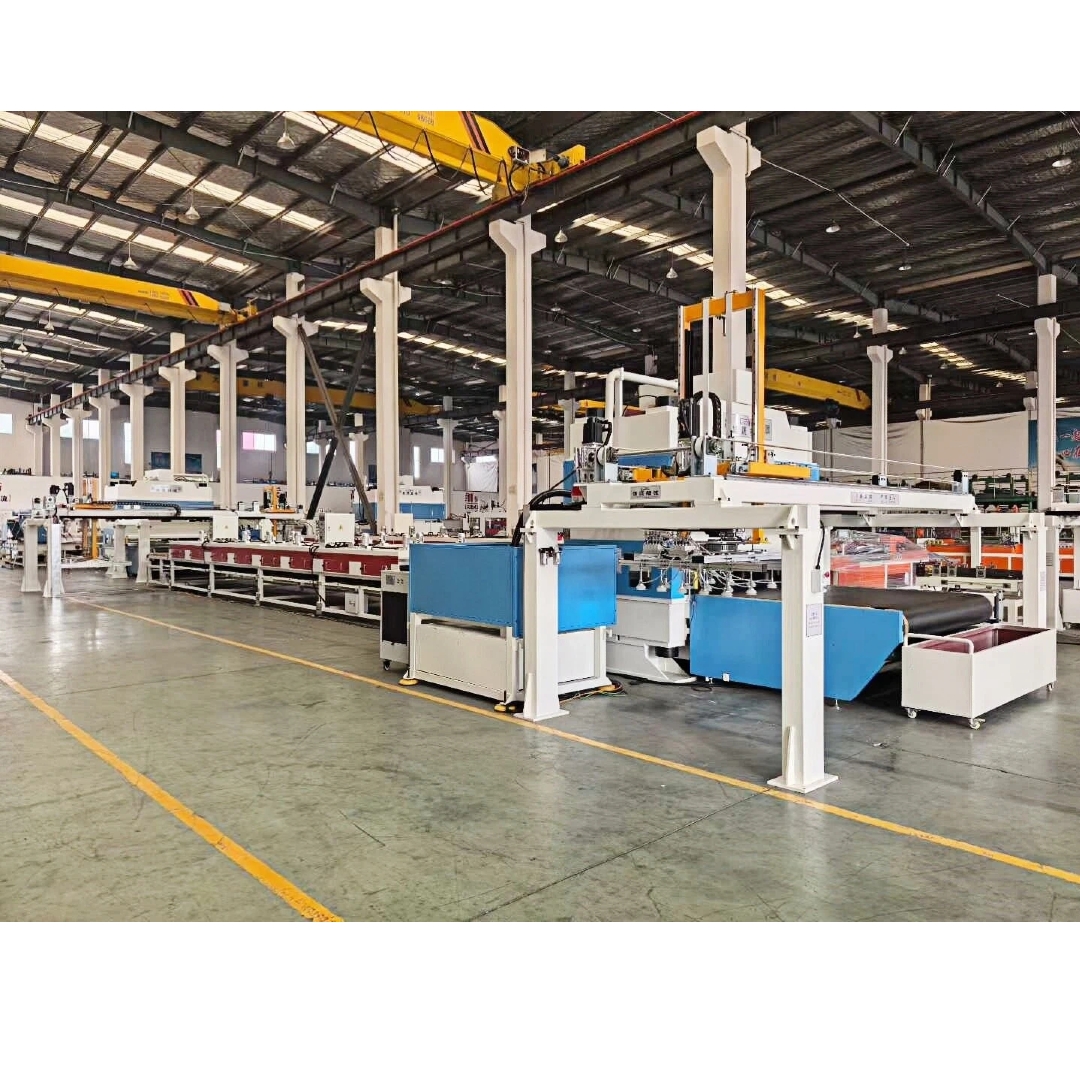

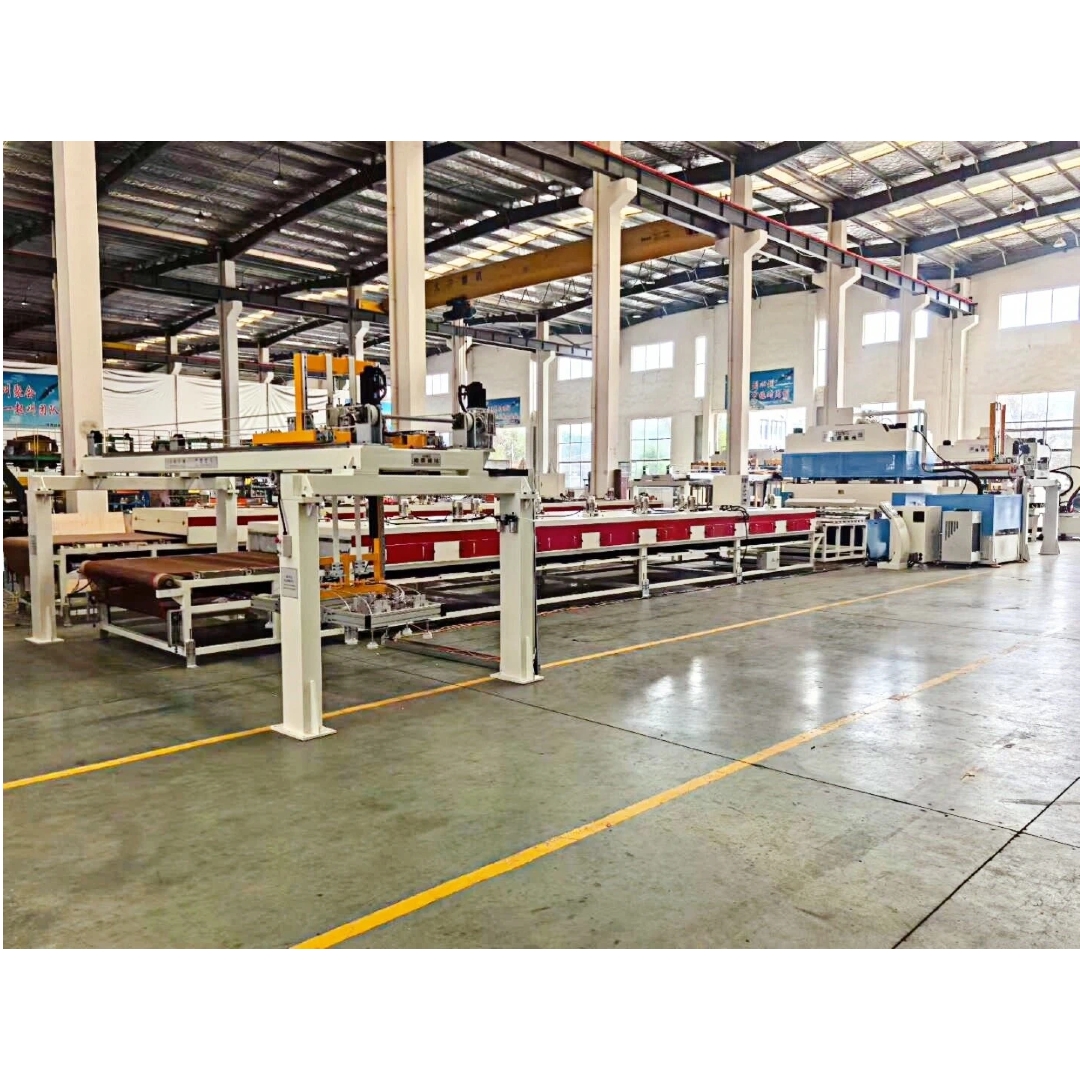

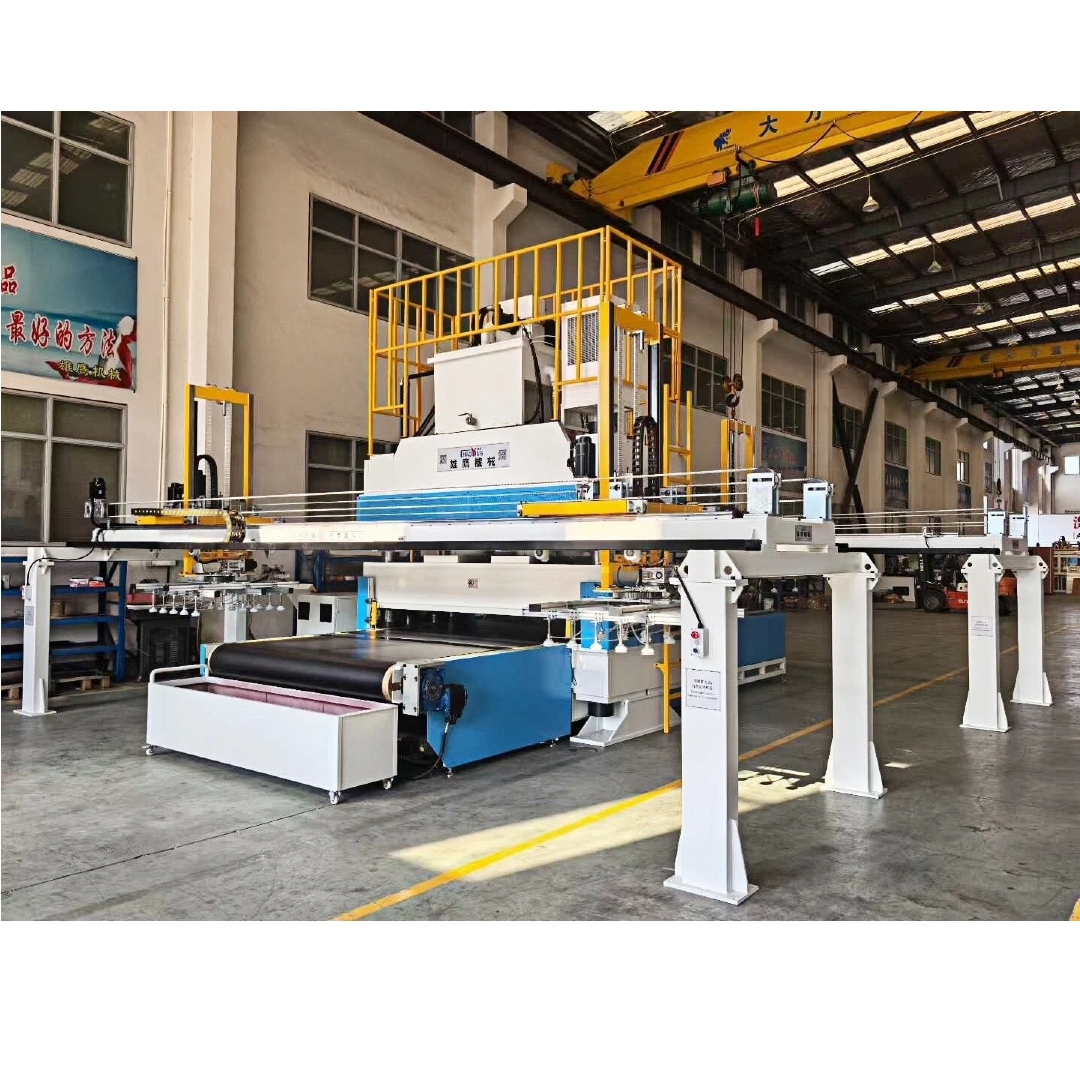

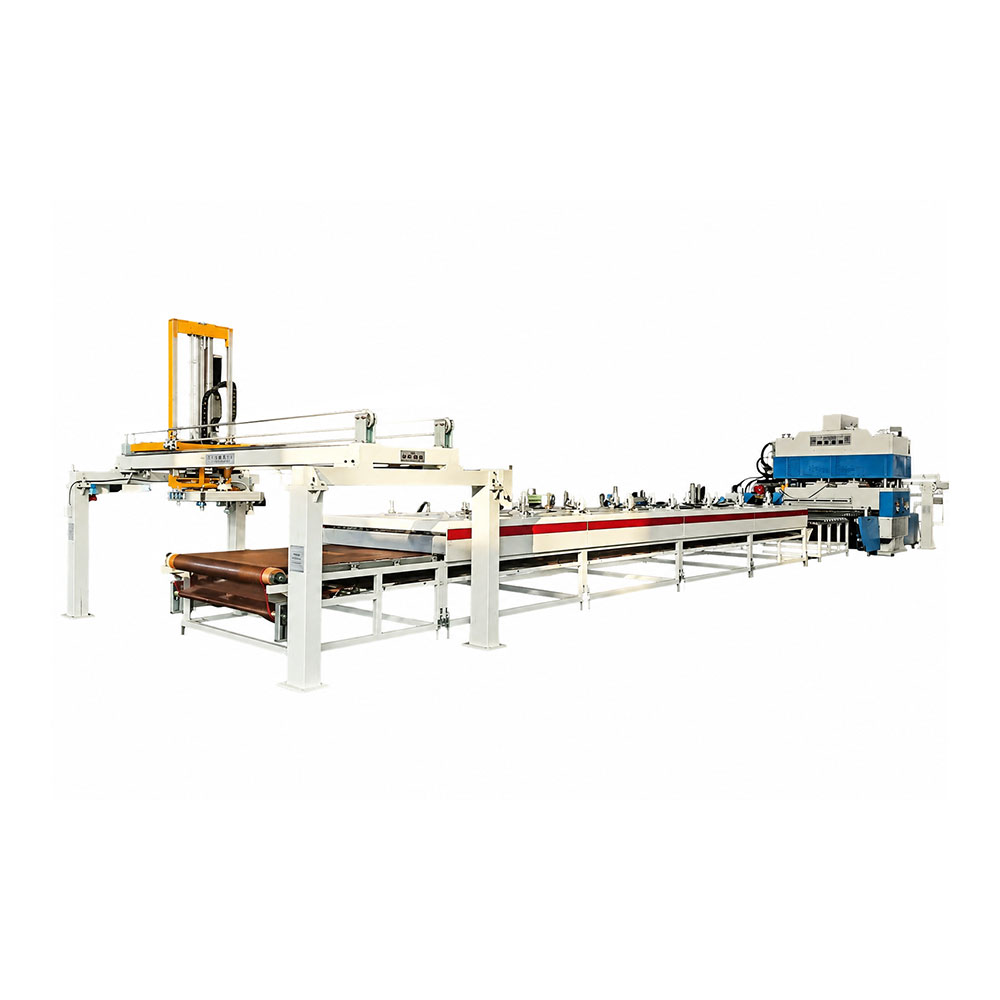

WPC/SPC Flooring Cutting & Beveling Production Line
The Advanced WPC and SPC Flooring Punching and Edge Pressing Production Line is a comprehensive, fully automated industrial solution designed specifically for the rigid core flooring manufacturing sector. This high-efficiency line integrates the entire production process—including automatic material loading, precision board flipping, high-pressure mold-pressing cutting, and intelligent stacked board palletizing—into a single, seamless workflow. Engineered for high-speed continuous operation, it ensures millimetric accuracy and superior edge finishing for SPC and WPC flooring planks. By automating labor-intensive tasks, this system drastically enhances factory throughput while maintaining the strict dimensional tolerances required for modern click-lock flooring systems.
The system features a highly advanced integrated automatic loading and board-flipping mechanism. This allows for the seamless handling of rigid SPC and WPC panels without manual intervention. The precision flipping unit ensures that panels are perfectly positioned for processing, reducing labor dependency by over 60%. This continuous material flow optimizes the production rhythm, enabling the line to achieve significantly higher throughput than traditional semi-automatic machinery while minimizing the risk of panel damage during handling.
• Precision Four-Column Balancing Technology
Equipped with a precision four-column auto-balancing link structure and double oil cylinders, the machine delivers immense and perfectly distributed hydraulic pressure. This structural integrity is essential for processing high-density SPC and WPC materials, ensuring that every cut and press is consistent across the entire work surface. The system maintains a strict tolerance level of ±0.03mm, which is critical for the seamless interlocking of click-lock systems. This high degree of precision ensures a 100% product pass rate and enhances overall quality.
• Superior Edge Quality via Mold-Pressing
The specialized mold-pressing and die-cutting technology is engineered to handle the unique density of Stone Plastic Composite (SPC) and Wood Plastic Composite (WPC). By combining high-pressure punching with precision edge pressing, the line produces perfectly vertical, burr-free edges that require no secondary finishing. This "factory-clean" cut is essential for high-end flooring installation. The system's ability to maintain edge quality in high-speed cycles ensures that each plank meets the aesthetic and technical standards demanded by global markets.
• Intelligent Palletizing & PLC Control
Integrated with an intelligent stacked board palletizing system, the line automatically organizes finished flooring planks into neat, stable pallets. Controlled through a user-friendly PLC touch screen interface, the palletizing arm operates with high accuracy, eliminating bottlenecks at the end of the line. Operators can easily adjust stacking patterns to suit different packaging requirements. This automation not only speeds up the packaging phase but also creates a more organized and safer factory environment, allowing for rapid shipment and logistics.
Technical Parameters
Model
XYJ-3/1000
Max.cutting force
10000kN(1000Ton)
Range between the working tables
100—260mm
Conveyer belt width
2000mm
Size of upper cutting board
2100*1500mm
Size of lower worktable
2100*1520mm
Main motor power
22kW
Total power
58.73kW
Product Uses
• Mass Production of SPC & WPC Planks
Specifically optimized for the high-volume production of Stone Plastic Composite (SPC) and Wood Plastic Composite (WPC) flooring. The system handles rigid core materials that require precise edge punching and high-pressure forming to create high-quality flooring planks.
• Click-Lock Flooring Manufacturing
Ideal for manufacturing flooring products with complex click-lock profiles. The precision balancing and mold-cutting ensure that the interlocking edges are perfectly shaped for a seamless and stable fit during floor installation.
• High-Density Composite Panel Processing
Suited for processing various high-density resilient composite panels used in commercial and residential projects. It efficiently handles materials with rigid cores, providing clean cuts and consistent stacking for standard and wide-format boards.Perfect for large-scale manufacturing environments that require an automated, hands-free workflow for processing non-metallic sheets, from raw material suction to final palletizing ready for global distribution.
• Industrial Flooring Projects
Provides an automated solution for large-scale flooring factories aiming for high-efficiency output. The integrated flipping and stacking features make it a versatile asset for producing diverse resilient floor coverings ready for international distribution.
