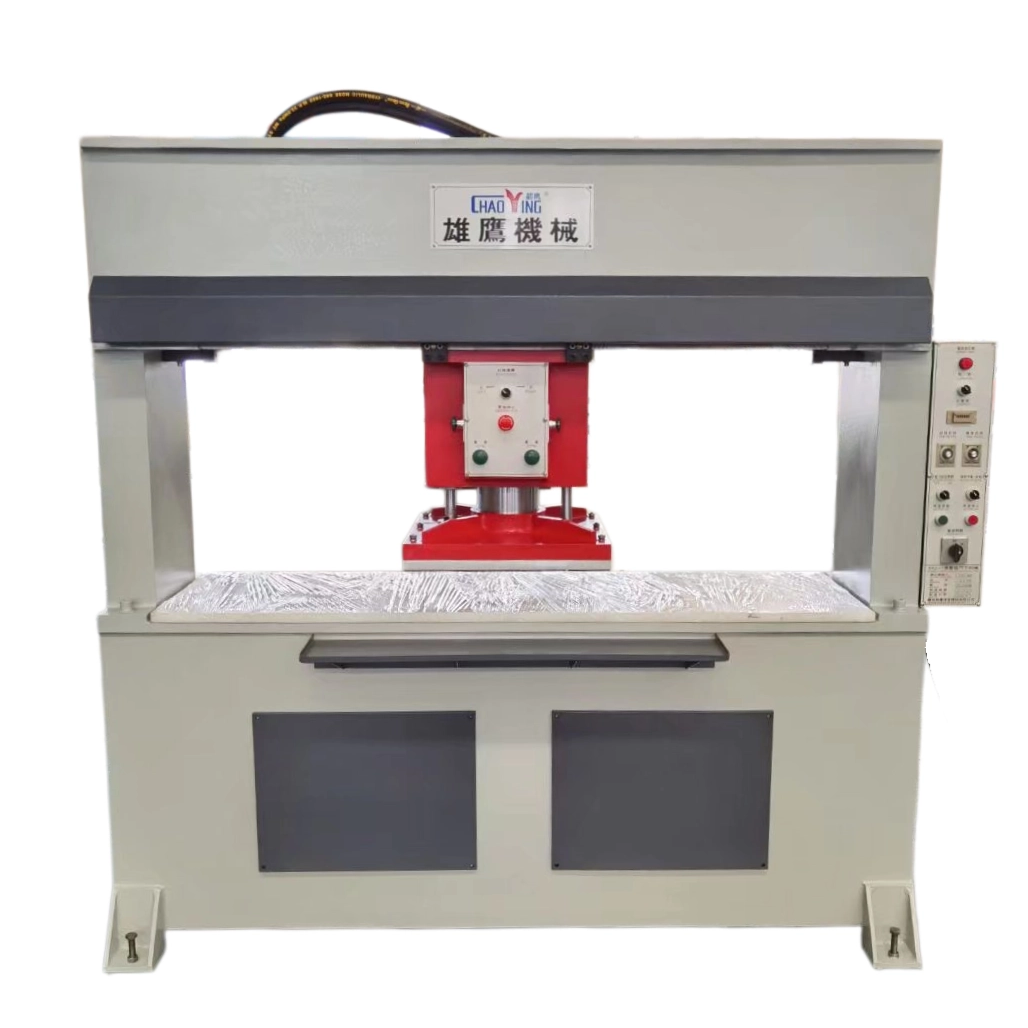

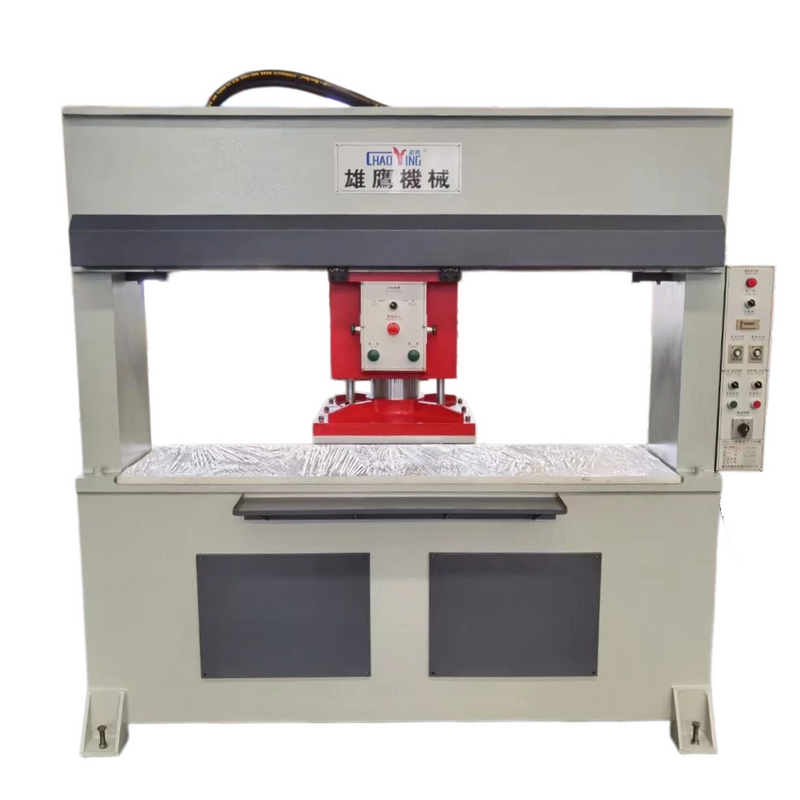

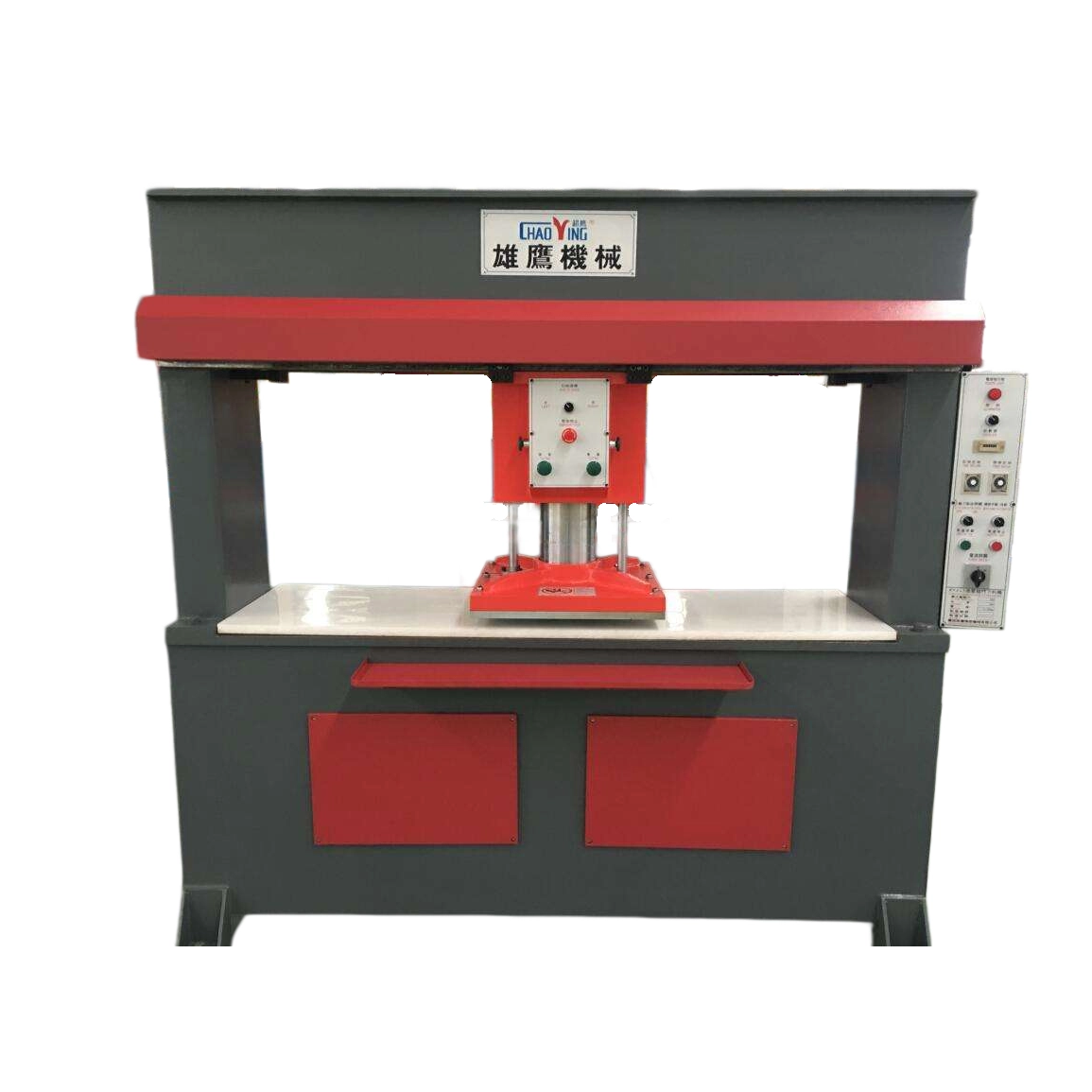

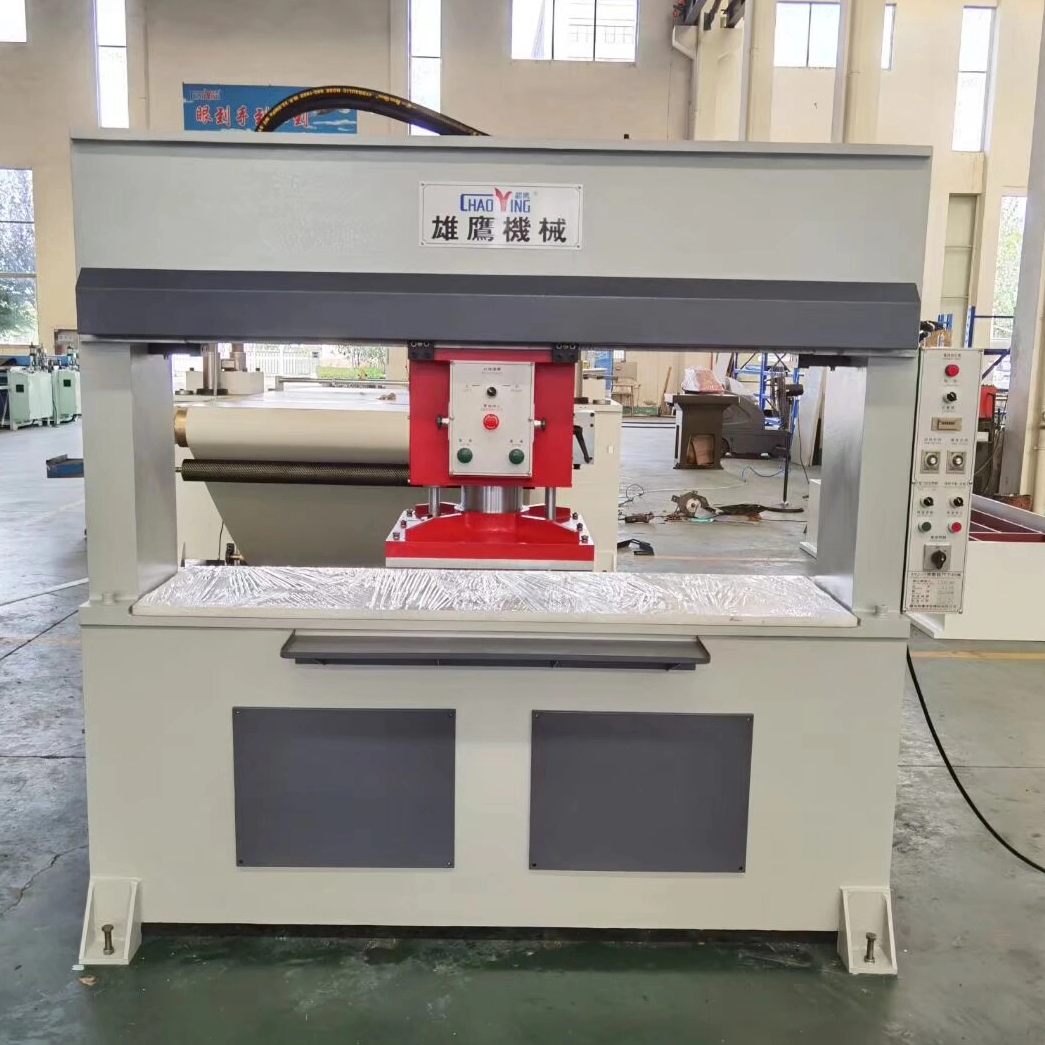

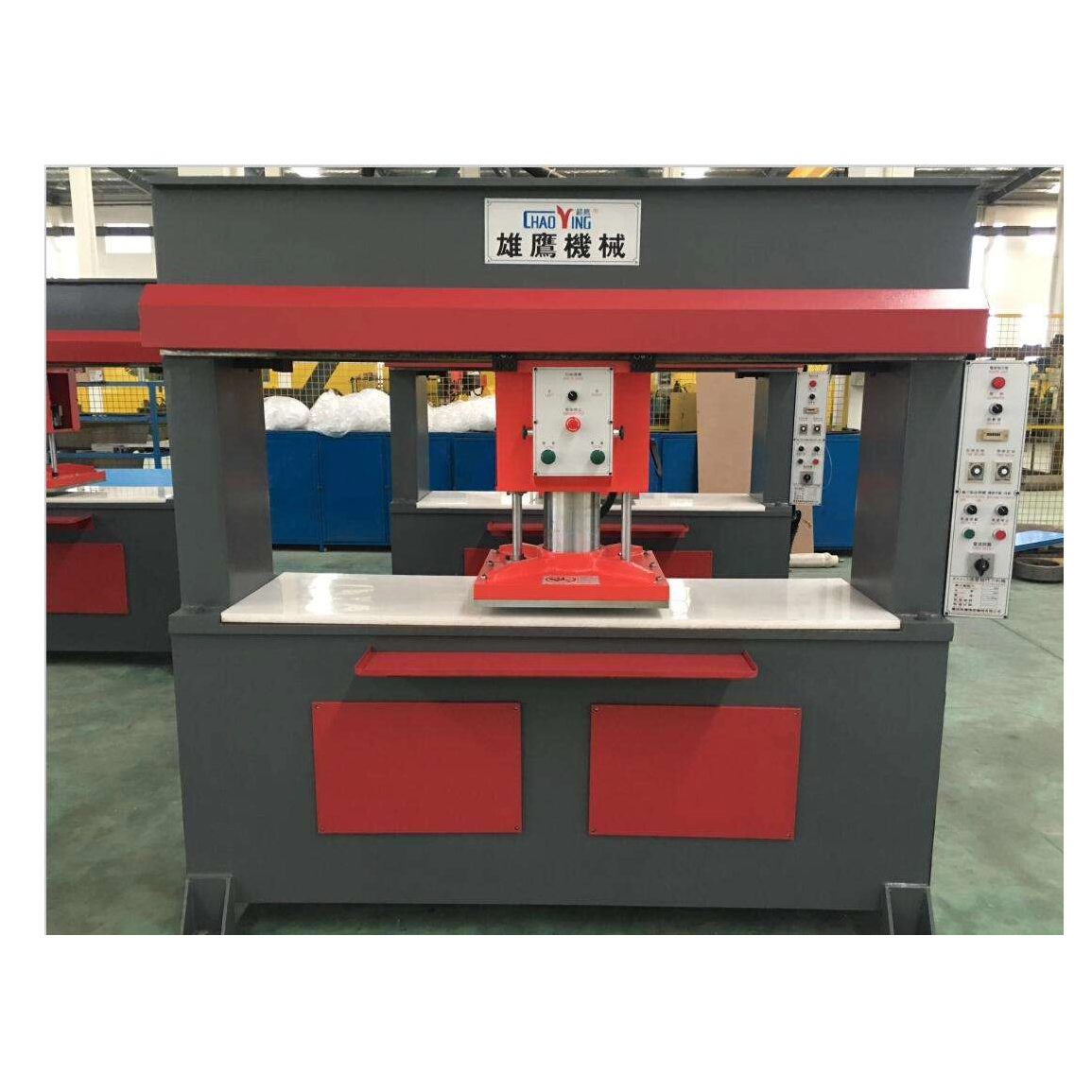

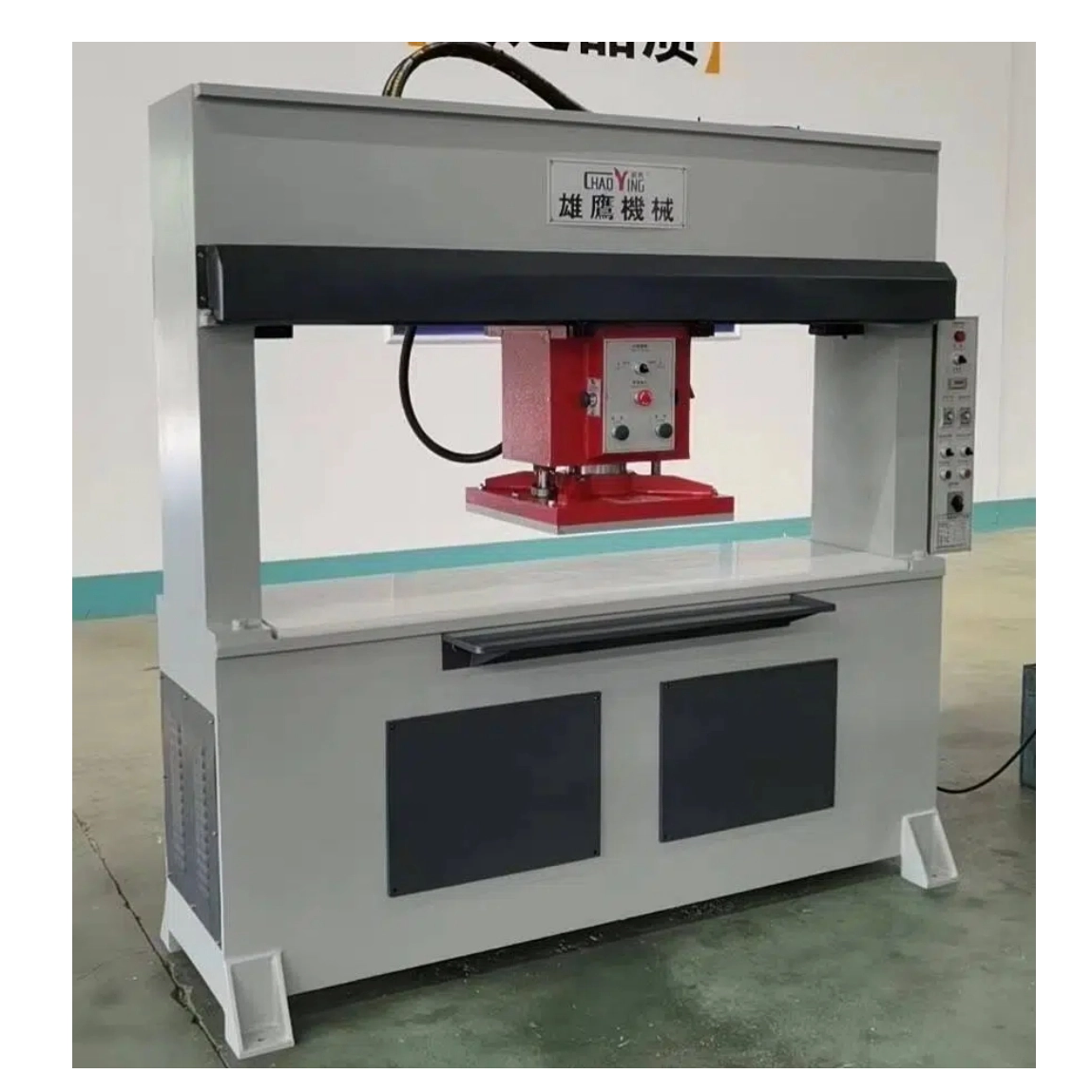

Hydraulic Traveling Head Die Cutting Machine for Engine Gasket And Foam Sealing Parts

Hydraulic Traveling Head Die Cutting Machine for Engine Gasket And Foam Sealing Parts

Color: Red, Grey or others
Size of upper cutting board: Standard or Customize

Size of lower worktable: Standard or Customize

Sales Models: Resale or Wholesale）
Min Order: 1pc

Model:
XYJ-3
Brand:
Chaoying

Quantity:
Availability:





Inquire Add to Basket

Product Description

Use and Features

It is suitable for cutting single layer or multi-layer of leather, rubber, plastic,paperboard, fabric, chemical fiber, nonwovens and etc. by the cutting die.

1. Traveling head can move to the left & right, which can provide wide operating visual field.

2. In automatic mode, traveling head can automatically move to the left & right after cutting, with easy operation,and saving operation time.

3. Operation with both hands makes high safety.

4. According to the need of users, it can be extra installed rubber roll auto-feeding device to enhance work efficiency.

Technical Parameters

Max.cutting force	250kN(25tons)	350kN(35tons)
Stroke adjustment range	0-120mm
Range between the working tables	30-150mm
Size of upper cutting board	500X500mm
Size of lower worktable	1600X500mm
Motor power	2.2kW
