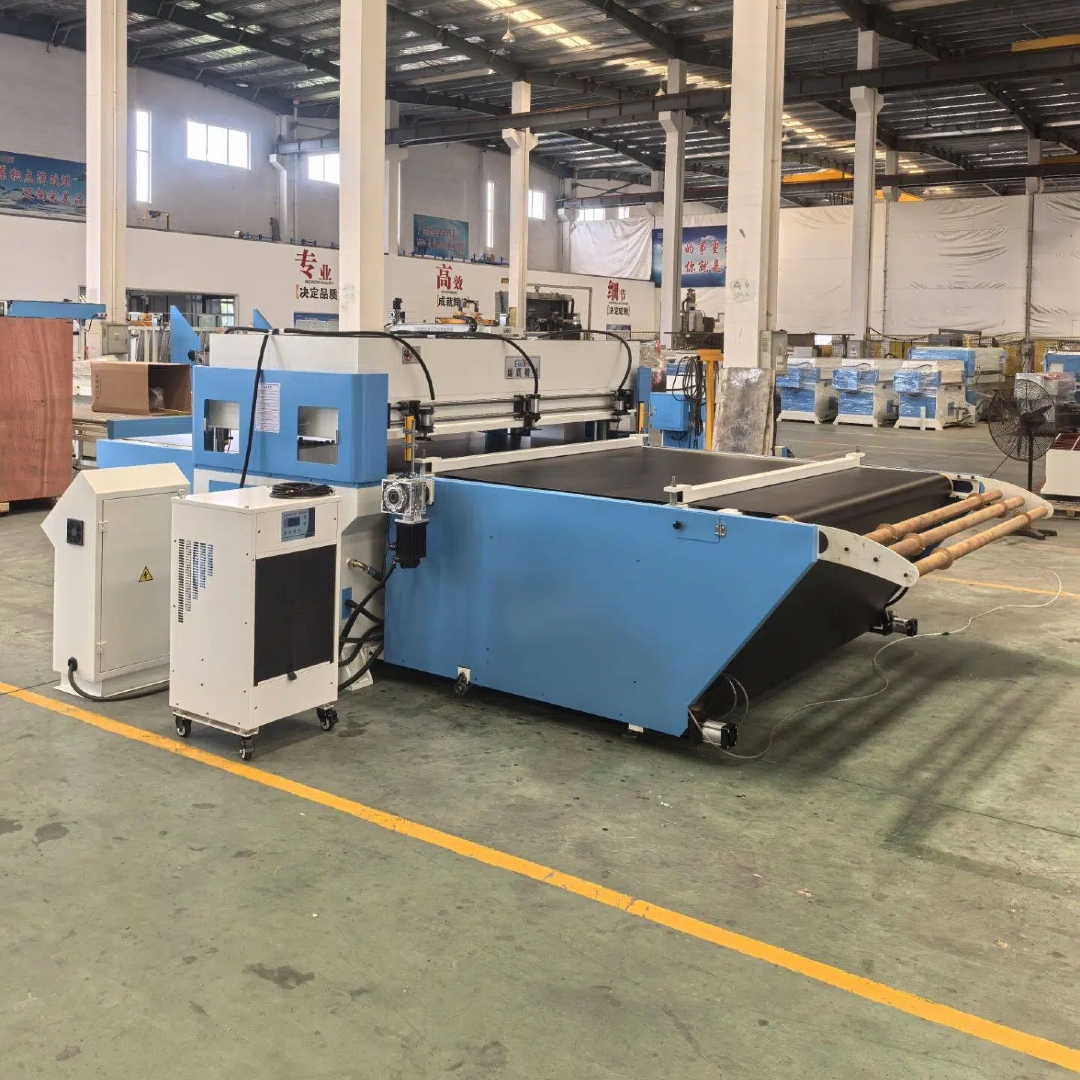

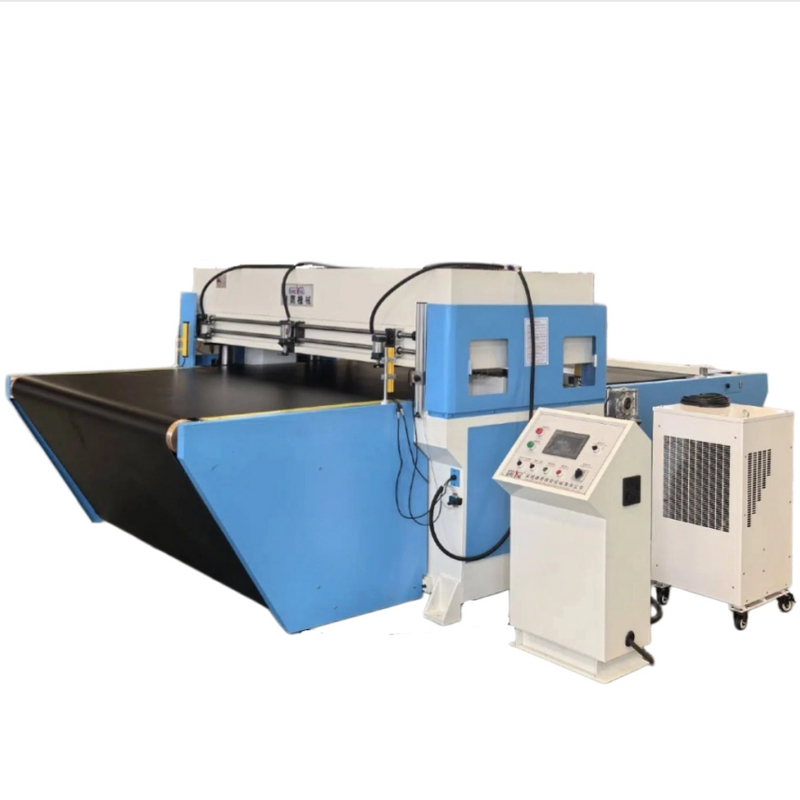

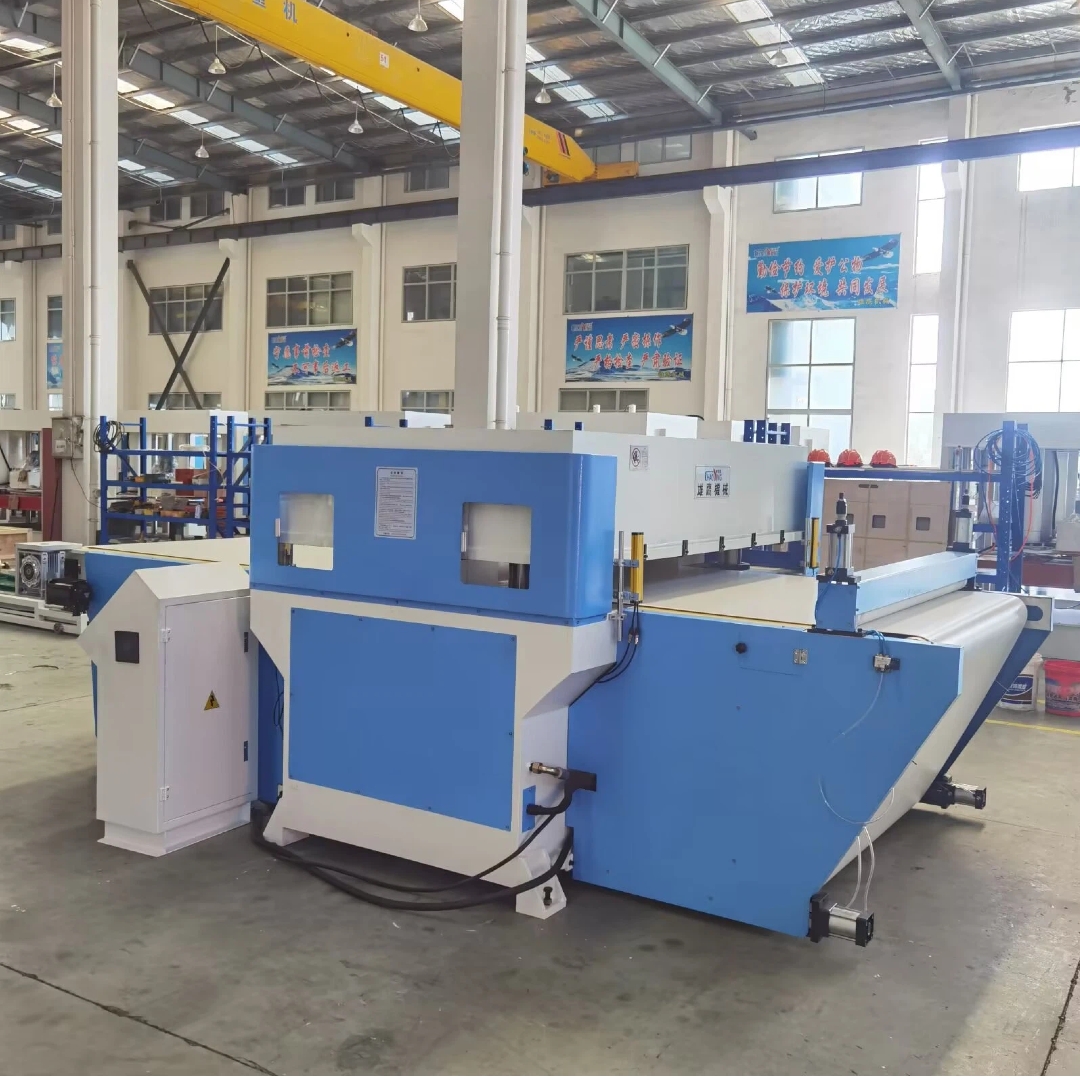

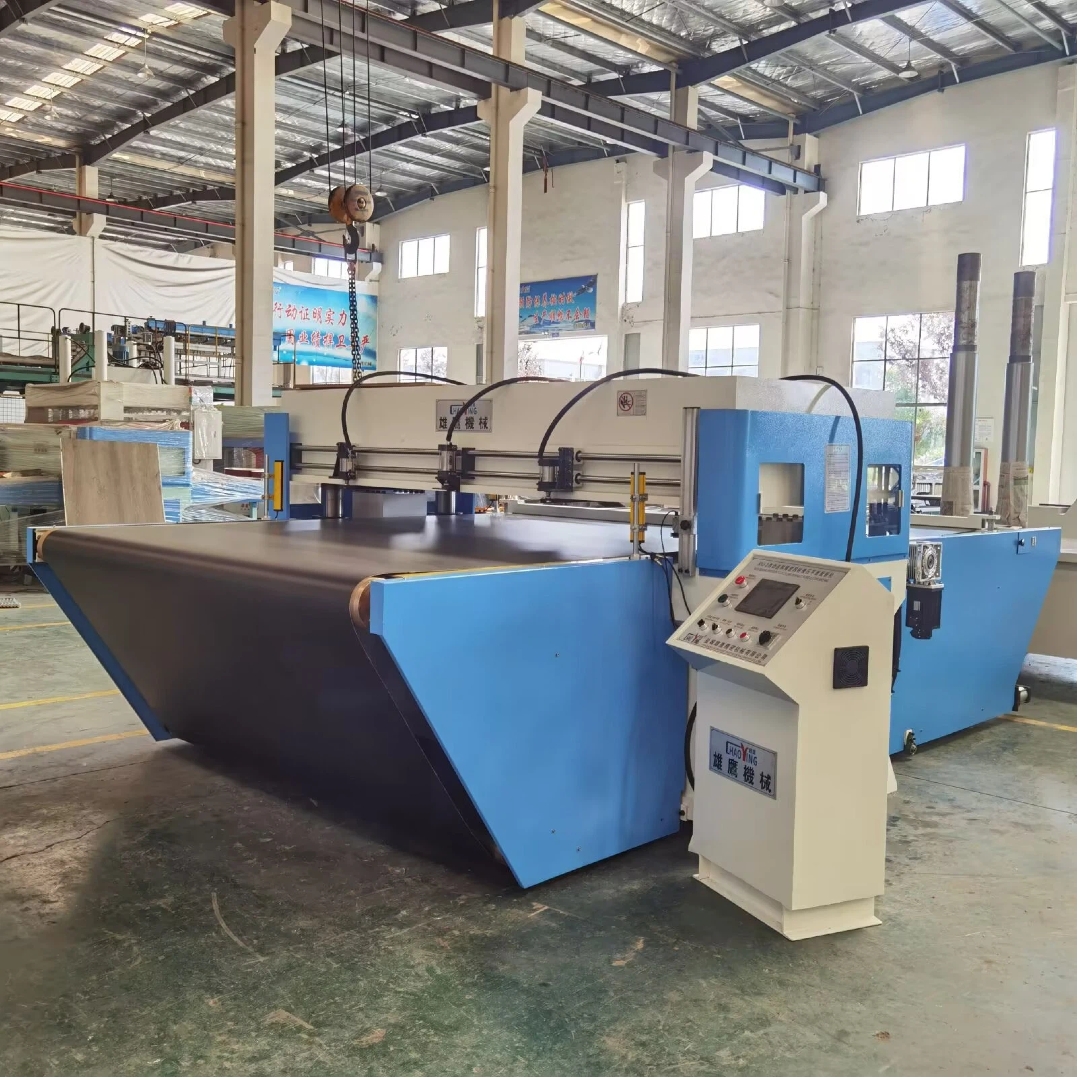

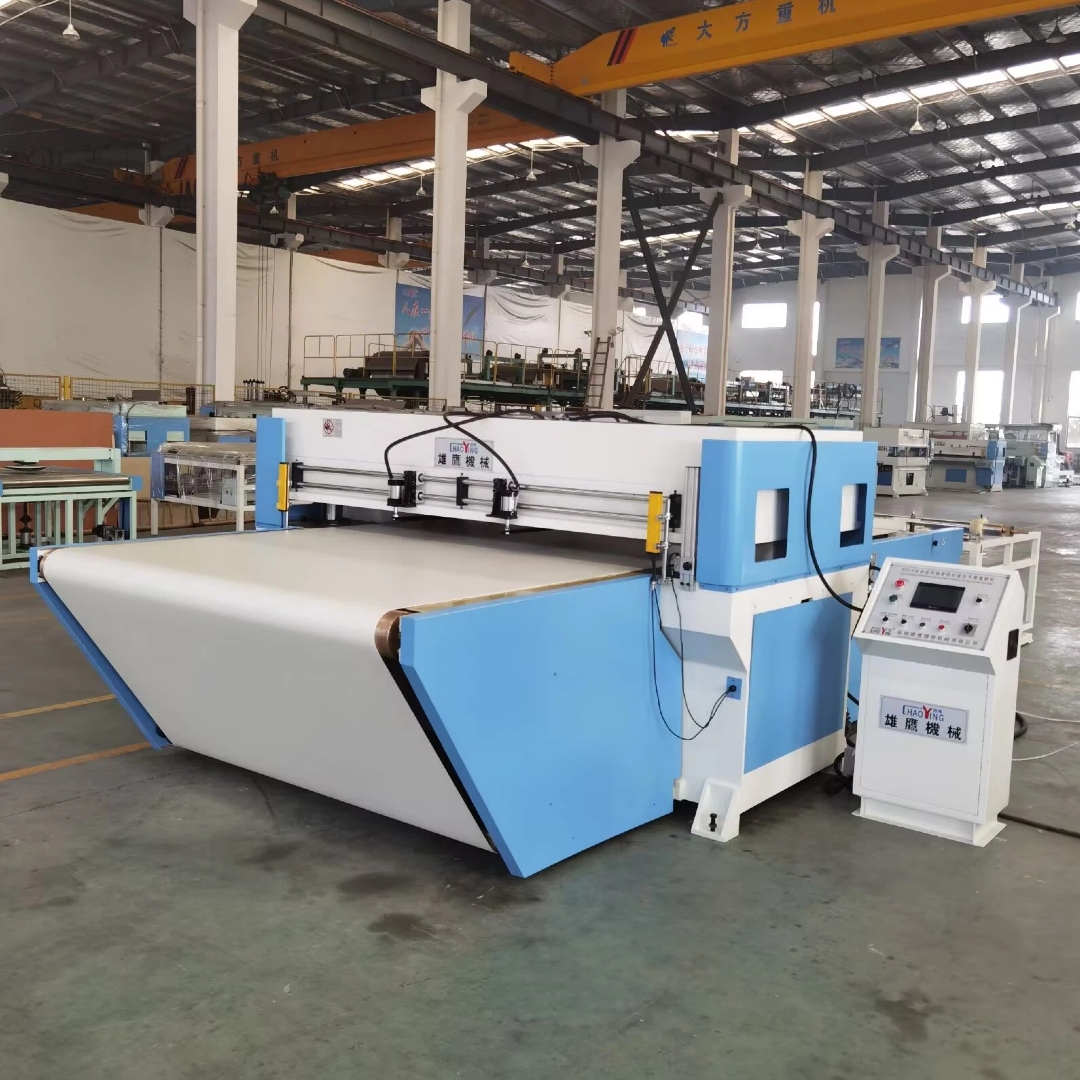

Conveyor Belt Feeding 4-Column Hydraulic Die Cutting Machine
This advanced industrial cutting machine is specifically engineered for high-efficiency, large-batch production and continuous cutting operations. It features a sophisticated PLC touch screen program control system, offering both automatic and manual cutting die setting modes to accommodate various production requirements. Designed for durability and precision, the machine integrates a double oil cylinder and four-column balancing structure, ensuring consistent performance even in demanding industrial environments. It is an ideal solution for manufacturers seeking a reliable, high-precision, and easy-to-operate cutting system.
The machine is equipped with a high-performance PLC touch screen program control system. Operators can easily switch between automatic and manual cutting die setting modes, providing maximum flexibility and reducing setup time for different production batches.
• Enhanced Efficiency with Auto-Feeding

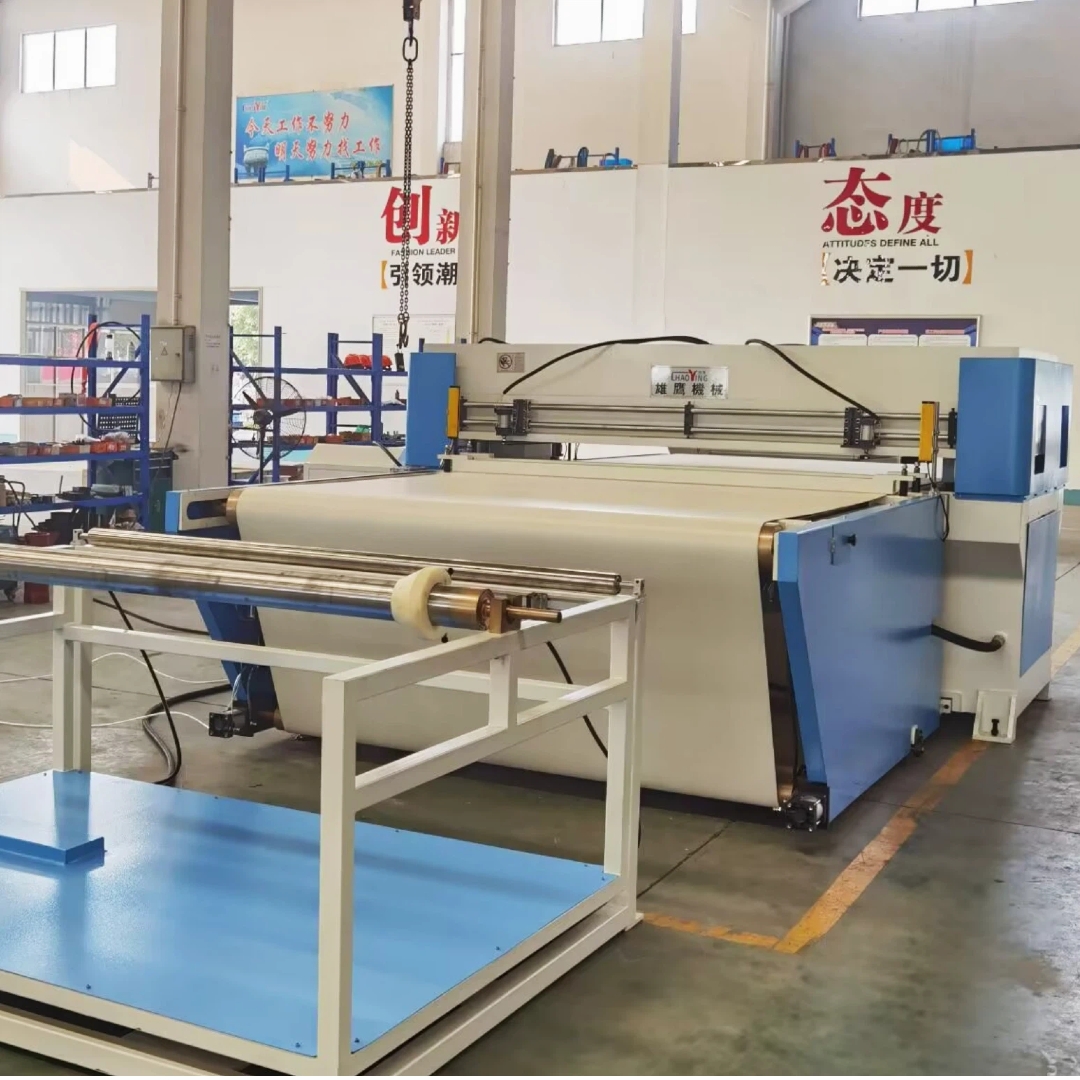

Featuring a back-side rubber roll auto-feeding device, the machine significantly streamlines the material handling process. This automated system ensures a continuous flow of materials, drastically improving overall cutting efficiency and reducing labor intensity.
• Precision Four-Column Balancing Structure
The integration of double oil cylinders and a precision four-column auto-balancing link structure guarantees uniform cutting depth across every position. This structural design ensures that even large-area materials are cut with perfect consistency.
• Automatic Speed Regulation for Accuracy
When the upper cutting board descends and contacts the cutting die, the system automatically slows down. This "slow cutting" feature eliminates size errors between the top and bottom layers, ensuring high-fidelity results for multi-layer materials.
• Centralized Lubrication & High Safety Standards
Equipped with a central oil supply automatic lubricating system, the machine maintains high working precision while significantly prolonging its service life. Additionally, a built-in safety grating provides maximum protection for operators during the cutting process.
Technical Parameters
Model
XYJ-3/200
Max.cutting force
2000kN(200Ton)
Stroke adjustment range
0—160mm
Range between the working tables
50—210mm
Size of upper cutting board
1600*1100mm
Size of lower worktable
1600*1120mm
Motor power
11kW
Product Uses
• Leather & Synthetic Materials
Perfectly suited for cutting single or multiple layers of leather, rubber, and felt, making it ideal for the footwear, luggage, and automotive upholstery industries.
• Textile & Fabric Processing
Efficiently processes fabric, nylon, and various textiles, supporting large-scale production for the garment and home furnishing sectors.
• Industrial & Household Supplies
Widely used for cutting carpet materials and cleaning supplies, providing clean and precise edges for bulky or textured materials.
• Batch Component Manufacturing
Designed for large-batch production and continuous cutting of diverse soft materials using custom cutting dies for specialized industrial components.
