XYJ-3
Chaoying
| Quantity: | |
|---|---|

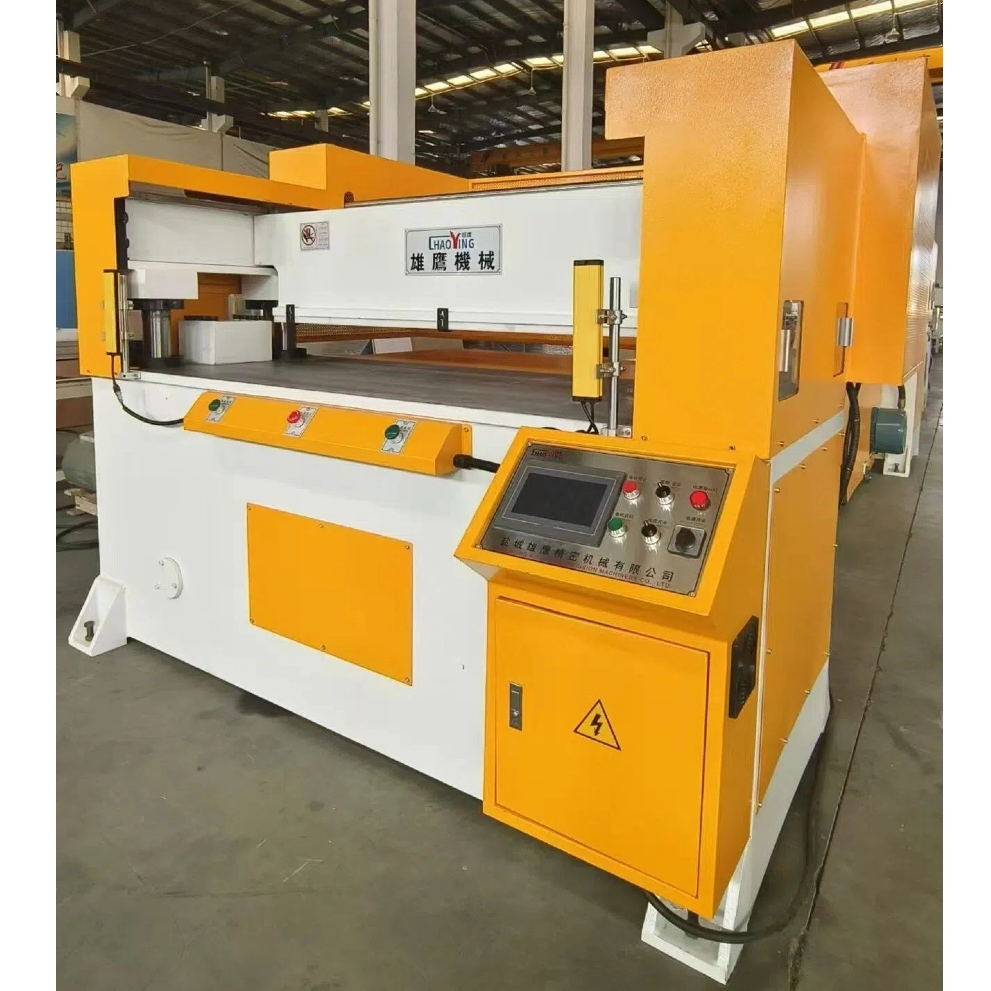

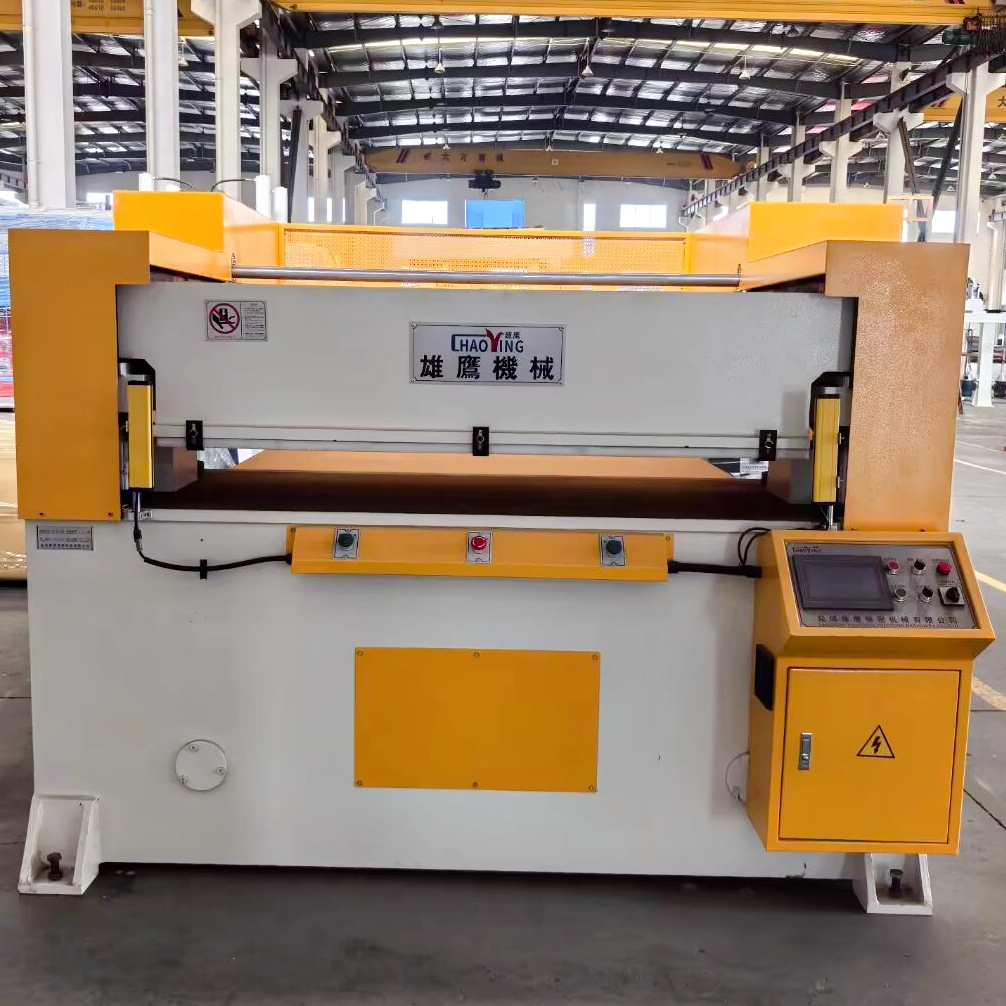

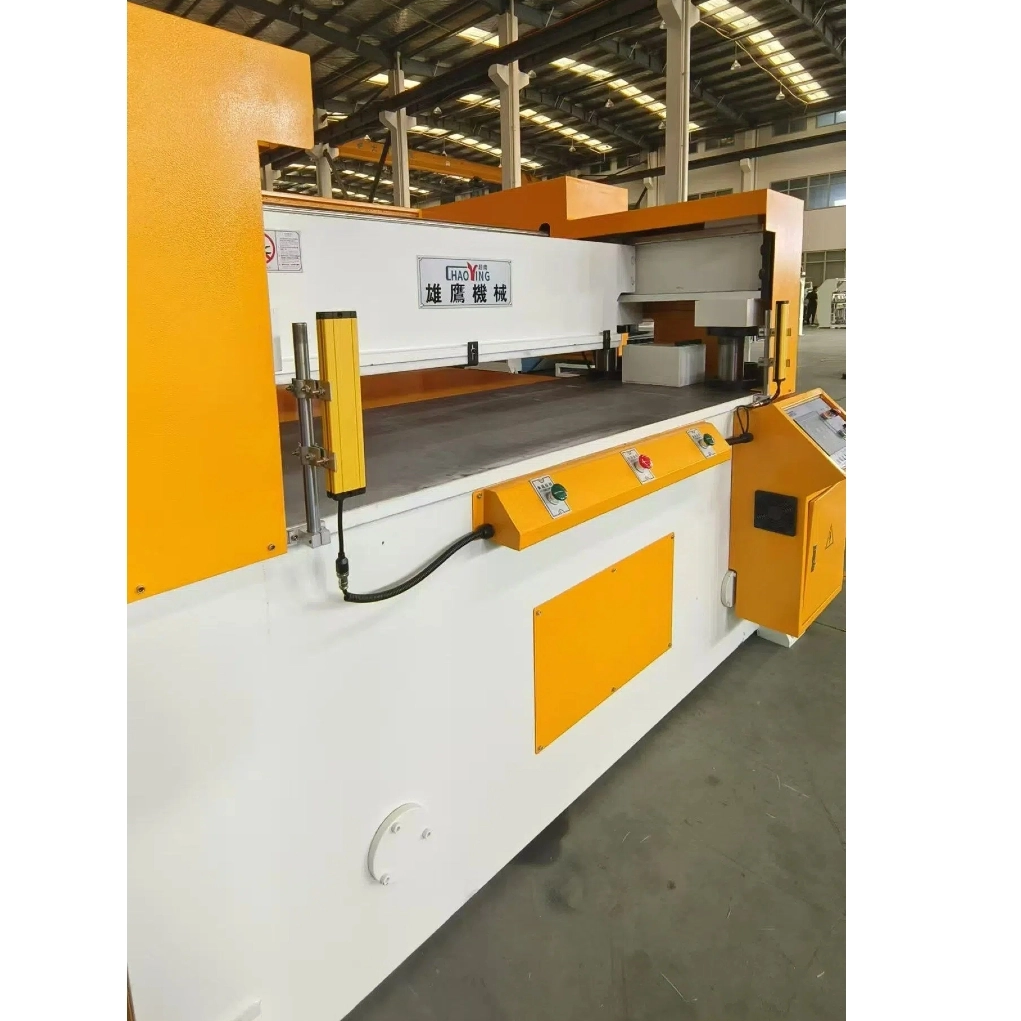

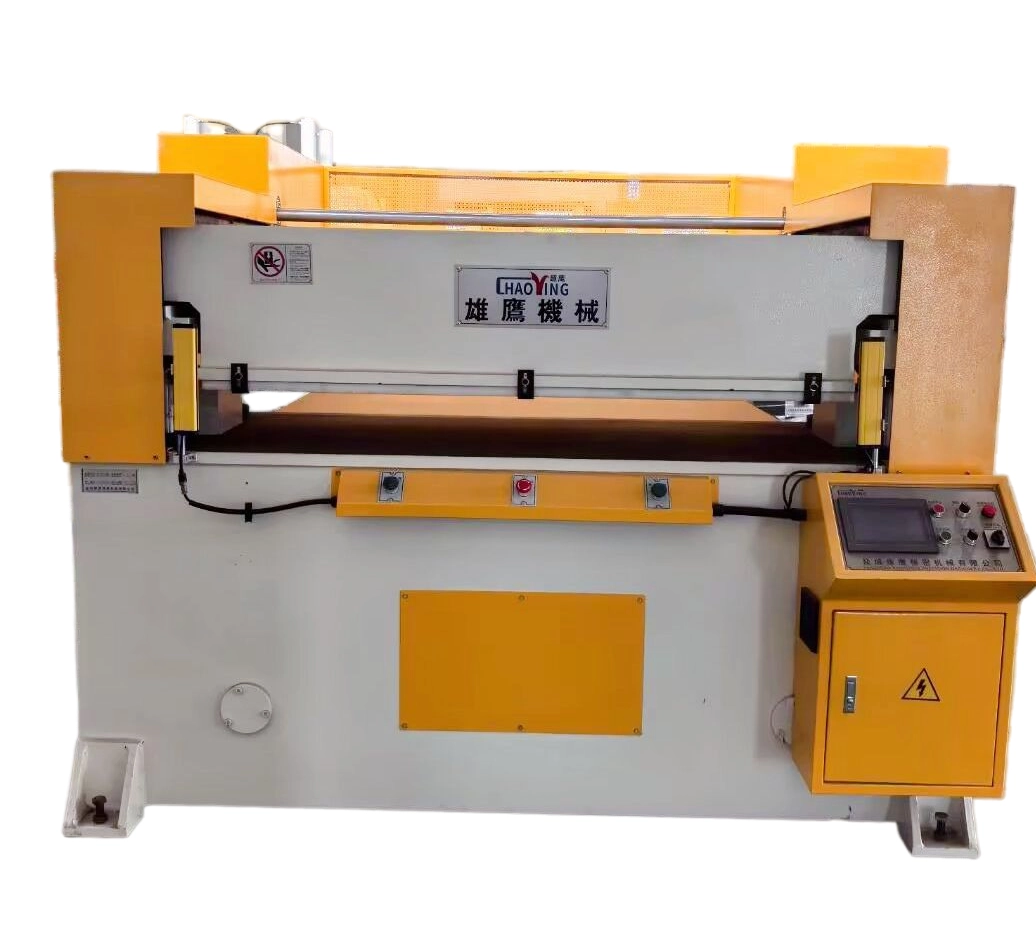

It is suitable for cutting single layer or multi-layer of leather, rubber, plastic, packaging, textile, chemical fiber and other materials by the cutting die.
1. PLC touch screen program control, using intelligent pressure for cutting and not need manually setting height of the cutting die.
2. Upper cutting board can automatically move forward & backward, so that the operatingvisual field of operator is the best. From feeding material, placing cutting die until cutting,all movements (the upper cutting board will move forward, drop down & cut, rise up & movebackward automatically) will be done at one go without interruption, which has greatlyincreased work efficiency and reduced the labor intensity.
3. Double oil cylinders, precision four-column auto-balancing link structure, which canguarantee uniform cutting depth of each cutting position.
4. When upper cutting board drops down and touches the cutting die, it can automaticallyslow cutting to make the cutting material no size error between the top and bottom layers.
5. Equipped with central oil supply automatical lubricating system, to ensure workingprecision and prolong the service life of machine.
6. When cutting, using the safety grating to ensures high safety of operators.
Model | XYJ-3/50 | XYJ-3/80 | XYJ-3/100 | ||
Max.cutting force | 500kN(50Ton) | 800kN(80Ton) | 1000kN(100Ton) | ||
Stroke adjustment range | 0—140mm | 0—140mm | 0—140mm | ||
Range between the working tables | 50—190mm | 50—190mm | 50—190mm | ||
Size of upper cutting board | 1600*800mm | 1600*800mm | 1600*1000mm | 1600*800mm | 1600*1000mm |
Size of lower worktable | 1600*820mm | 1600*820mm | 1600*1020mm | 1600*820mm | 1600*1020mm |
Motor power | 5.5kW | 7.5kW | 11kW | ||
